ADVENTURE TIRED402
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

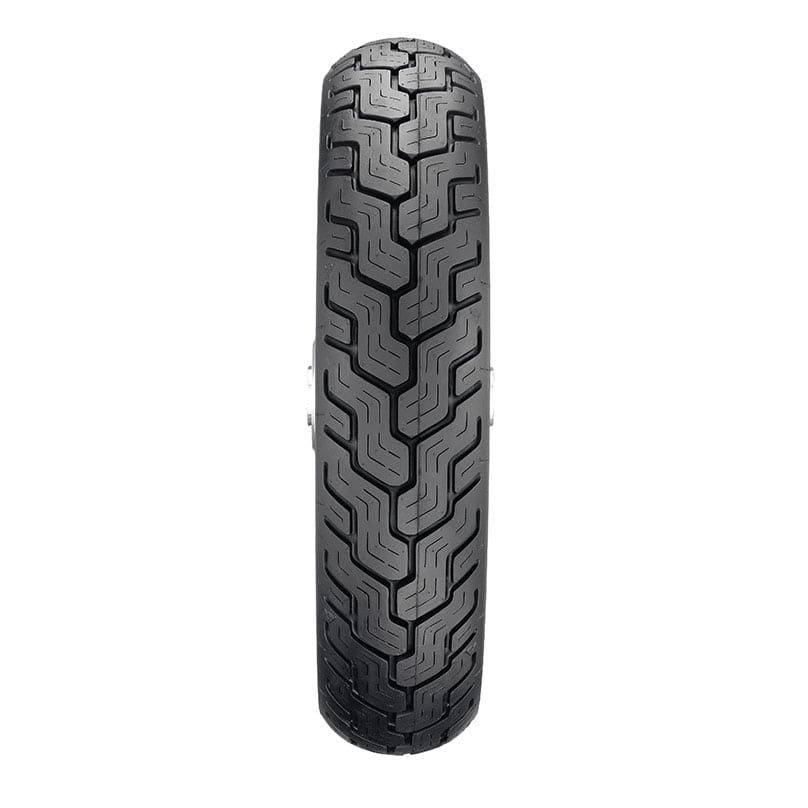

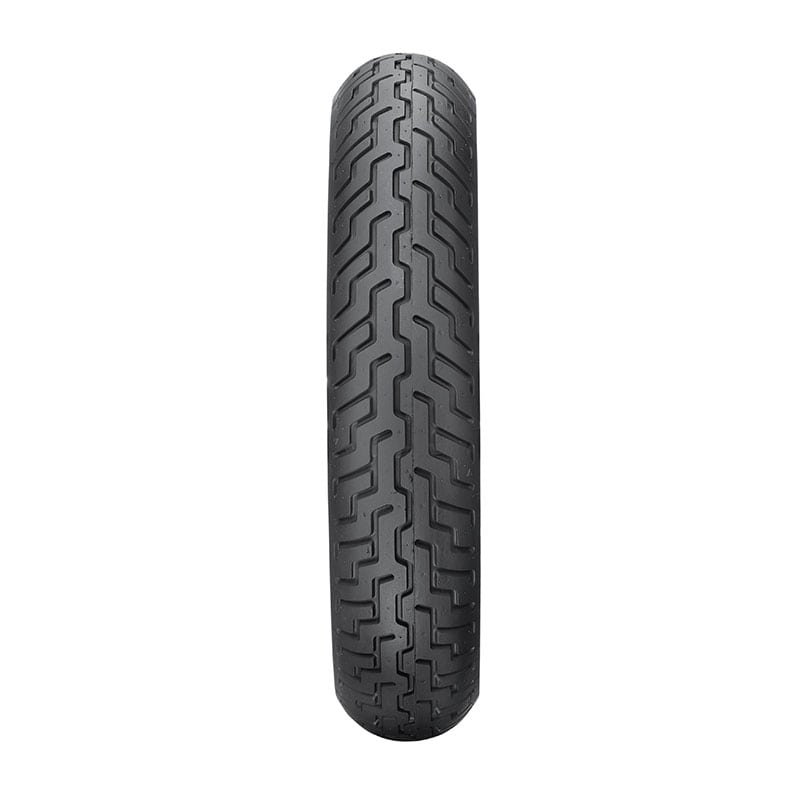

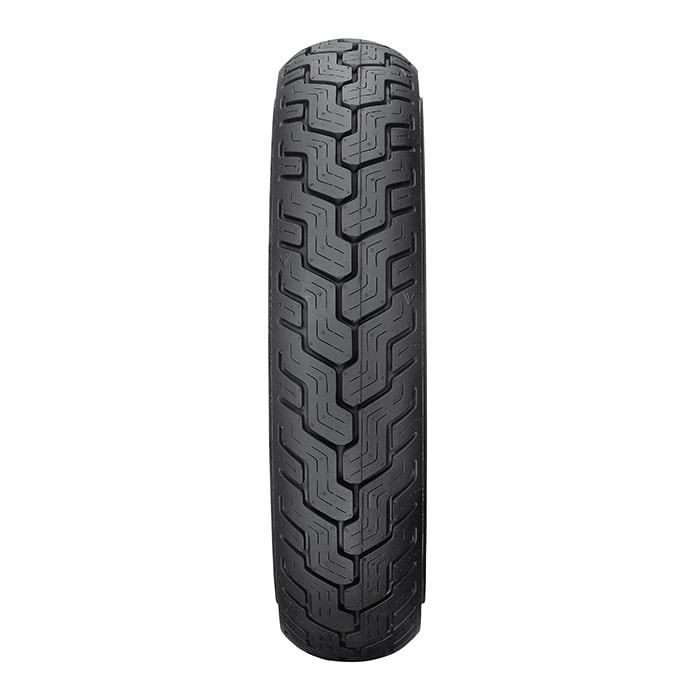

TIRE OVERVIEW D402
The D402 is a high-mileage touring tire designed for long-distance Harley touring machines. It is available in a variety of sidewall styles.
The D402 is a high-mileage touring tire designed for long-distance Harley touring machines. It is available in a variety of sidewall styles.
Co-Branded
Dunlop is the original brand of tire certified to say Harley-Davidson right on the sidewall.
OE
Meets the rigid demands of the bike manufacturer.
V-Twin
Meant for American-made iron.
ADDITIONAL TIRE
FEATURES
- The D402 is an approved Harley-Davidson touring tire.
- Built with a three-ply polyester casing with two fiberglass belts, the D402 helps provide stability for touring riding.

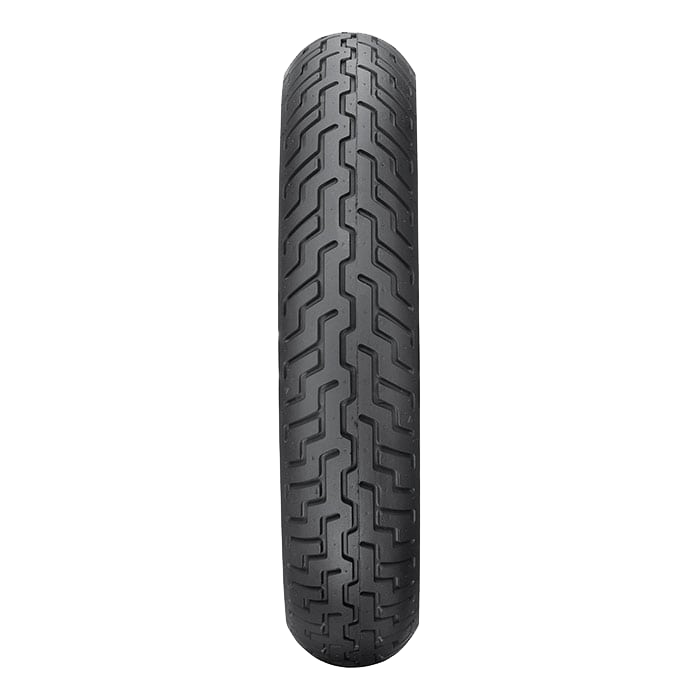

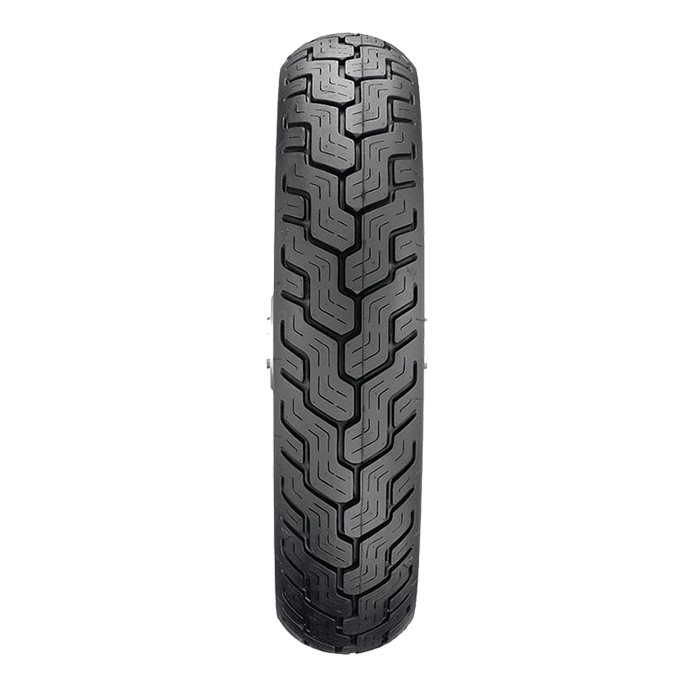

- Computer-optimized tread profile with offset center groove improves rider confidence over rain grooves and steel-grated bridges while helping to reduce cupping for enhanced wear.

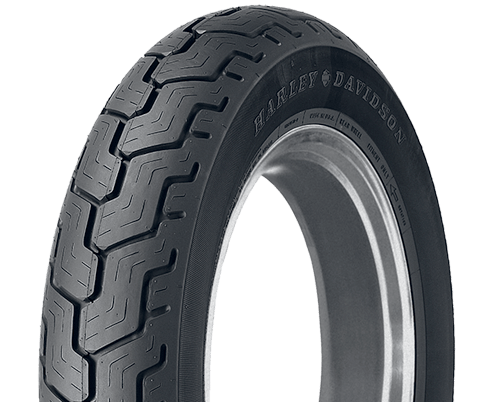

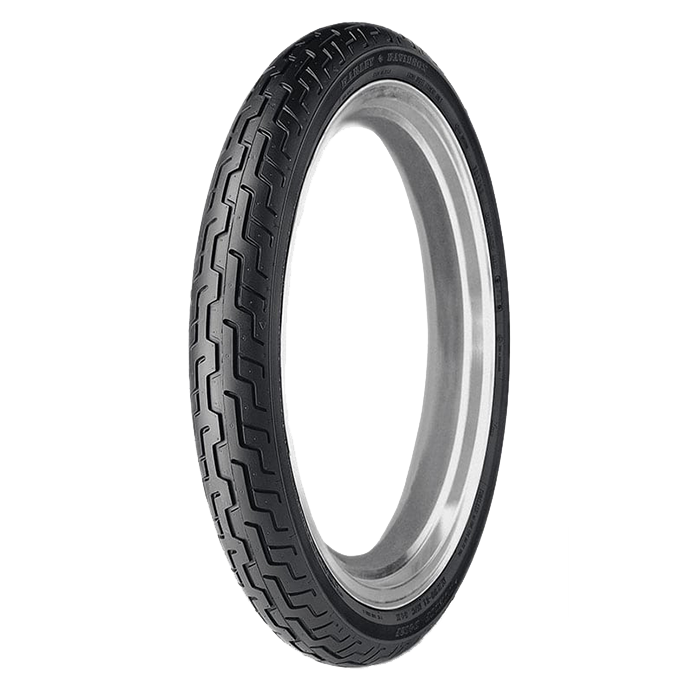

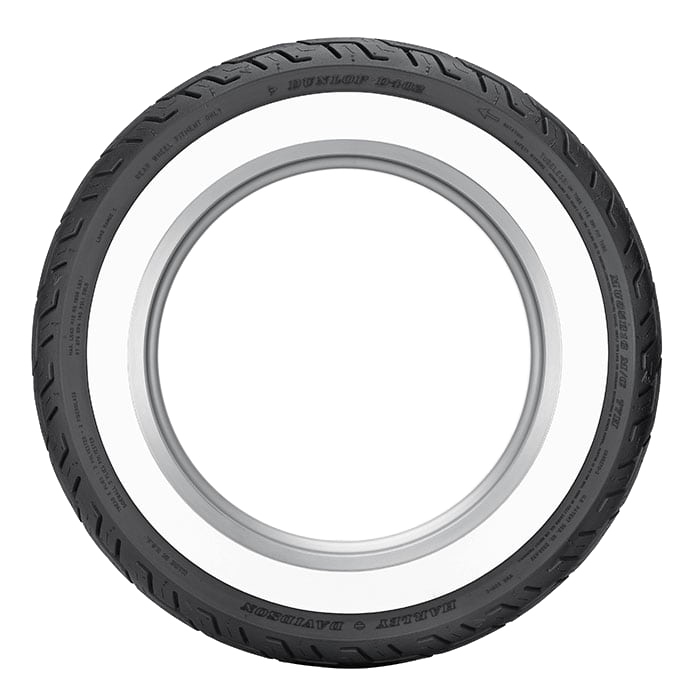

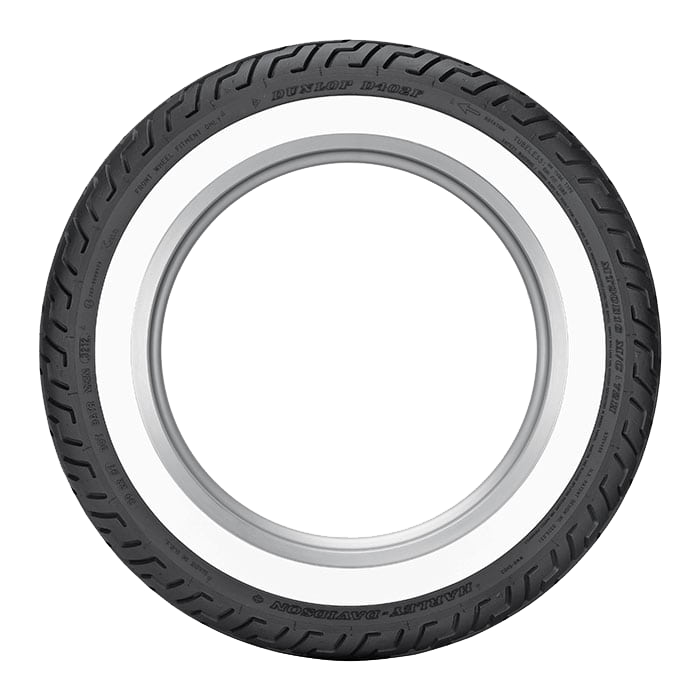

- The Dunlop Harley-Davidson Tire Series feature special Harley-Davidson branding on the sidewalls.

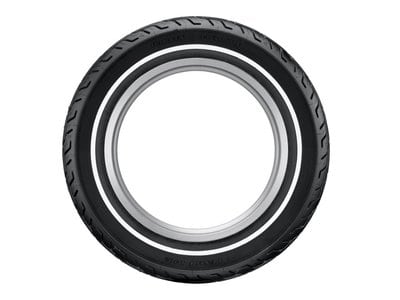

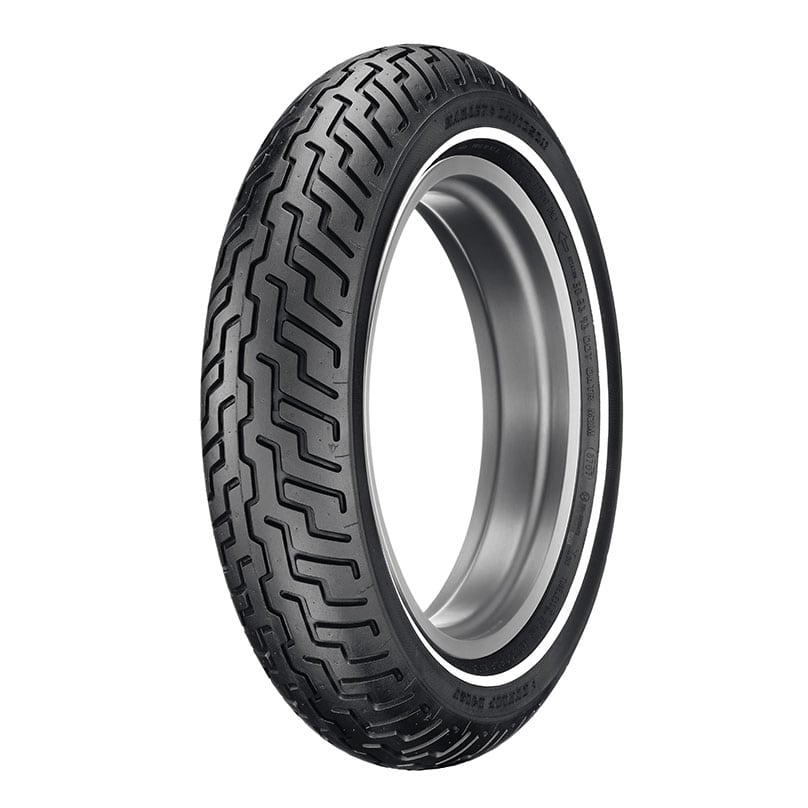

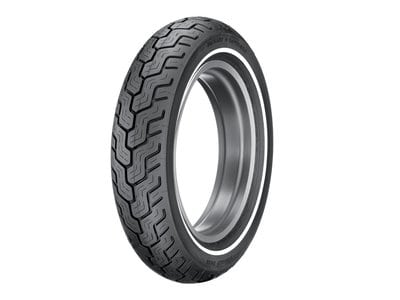

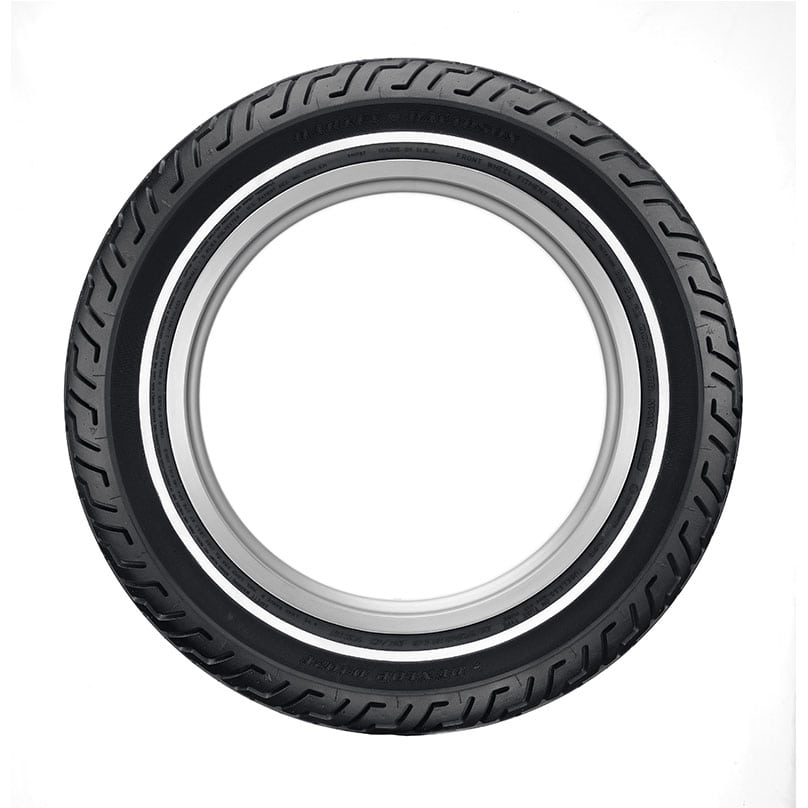

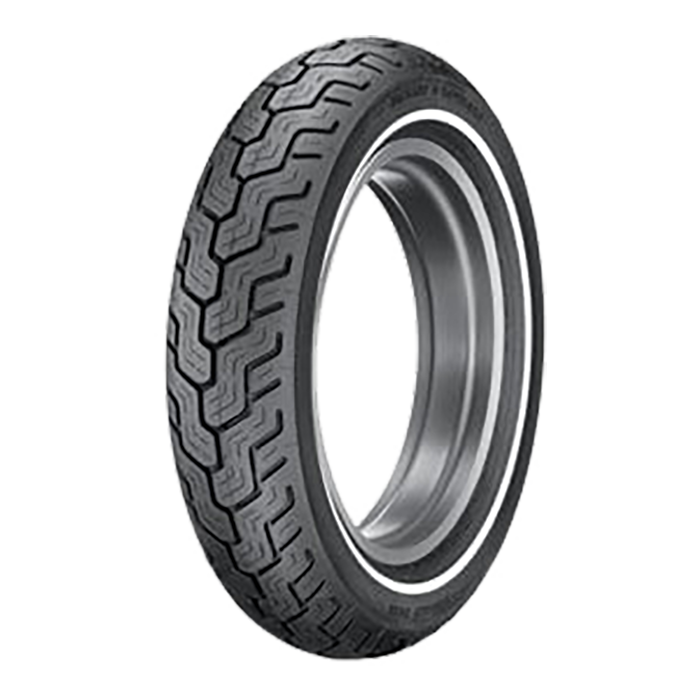

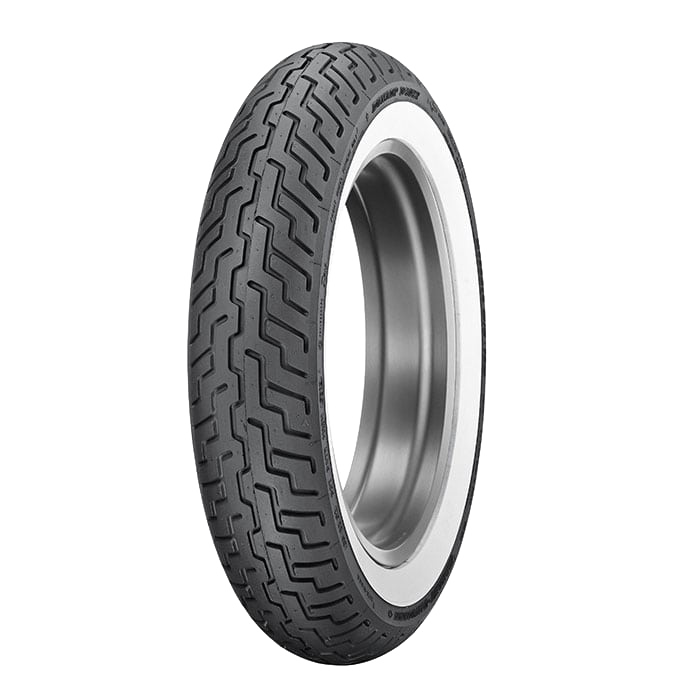

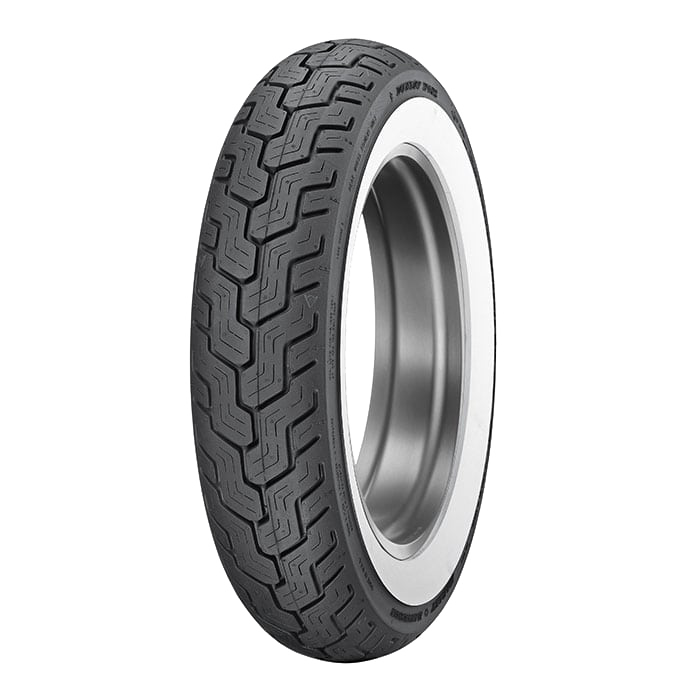

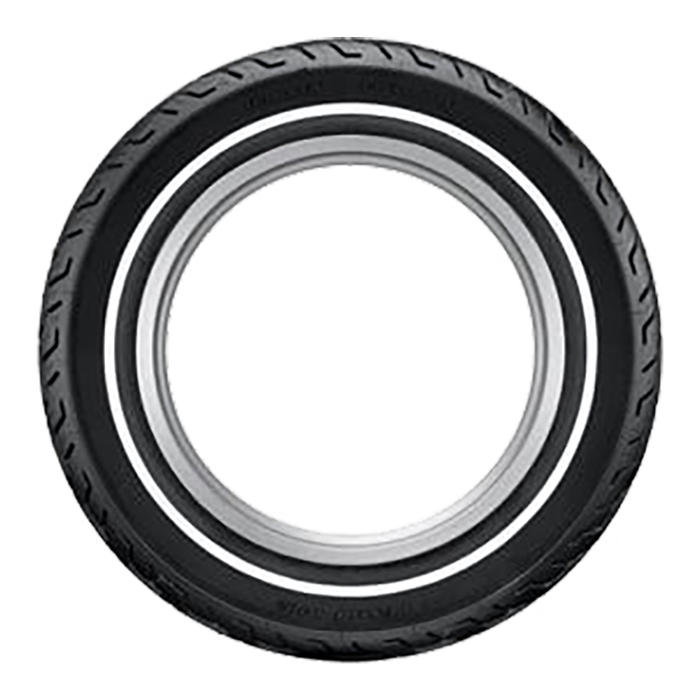

- The D402 is available in black sidewall (BW), slim wide whitewall (SW), medium white sidewall (MWW), and wide whitewall (WWW).
- All D402 tires have an H speed rating.
- Proudly made in the U.S.A. (from domestic and foreign materials)
VIEWING FOR YOUR BIKE:
D402 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| D402 BIAS FRONT | MT90B16 | 72H | 45006403 | 3.00 | 25.30 | 5.20 | 5/32 | 783 @ 40 | ||
| D402 BIAS FRONT | MT90B16 | 72H | SW | 45006655 | 3.00 | 25.30 | 5.20 | 5/32 | 783 @ 40 | |
| D402 BIAS FRONT | MT90B16 | 72H | WWW | 45006380 | 3.00 | 25.30 | 5.20 | 5/32 | 783 @ 40 | |
| D402 BIAS FRONT | 130/70B18 | 63H | 45006209 | 3.003.50 | 25.27 | 5.18 | 6/32 | 600 @ 41 | ||
| D402 BIAS FRONT | MH90-21 | 54H | 45006823 | 2.15 | 27.20 | 3.25 | 5/32 | 467 @ 40 | ||
| D402 BIAS Front | MH90-21 | 54H | MWW | 45006206 | 2.15 | 27.14 | 3.47 | 5/32 | 467 @ 40 | |
| D402 BIAS REAR | MT90B16 | 74H | 45006018 | 3.00 | 25.70 | 5.20 | 9/32 | 827 @ 40 | ||
| D402 BIAS REAR | MT90B16 | 74H | SW | 45006847 | 3.00 | 25.70 | 5.20 | 9/32 | 827 @ 40 | |
| D402 BIAS REAR | MT90B16 | 74H | WWW | 45006807 | 3.00 | 25.70 | 5.20 | 9/32 | 827 @ 40 | |
| D402 BIAS REAR | MU85B16 | 77H | 45006025 | 3.003.50 | 25.71 | 5.51 | 11/32 | 908 @ 40 | ||
| D402 BIAS REAR | MU85B16 | 77H | SW | 45006751 | 3.003.50 | 25.71 | 5.51 | 11/32 | 908 @ 40 | |
| D402 BIAS REAR | MU85B16 | 77H | WWW | 45006074 | 3.003.50 | 25.71 | 5.51 | 11/32 | 908 @ 40 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| D402 BIAS FRONT | MT90B16 | 72H | 45006403 | 3.00 | 25.30 | 5.20 | 5/32 | 783 @ 40 | ||
| D402 BIAS FRONT | MT90B16 | 72H | SW | 45006655 | 3.00 | 25.30 | 5.20 | 5/32 | 783 @ 40 | |
| D402 BIAS FRONT | MT90B16 | 72H | WWW | 45006380 | 3.00 | 25.30 | 5.20 | 5/32 | 783 @ 40 | |
| D402 BIAS FRONT | 130/70B18 | 63H | 45006209 | 3.003.50 | 25.27 | 5.18 | 6/32 | 600 @ 41 | ||
| D402 BIAS FRONT | MH90-21 | 54H | 45006823 | 2.15 | 27.20 | 3.25 | 5/32 | 467 @ 40 | ||
| D402 BIAS Front | MH90-21 | 54H | MWW | 45006206 | 2.15 | 27.14 | 3.47 | 5/32 | 467 @ 40 | |
| D402 BIAS REAR | MT90B16 | 74H | 45006018 | 3.00 | 25.70 | 5.20 | 9/32 | 827 @ 40 | ||
| D402 BIAS REAR | MT90B16 | 74H | SW | 45006847 | 3.00 | 25.70 | 5.20 | 9/32 | 827 @ 40 | |
| D402 BIAS REAR | MT90B16 | 74H | WWW | 45006807 | 3.00 | 25.70 | 5.20 | 9/32 | 827 @ 40 | |
| D402 BIAS REAR | MU85B16 | 77H | 45006025 | 3.003.50 | 25.71 | 5.51 | 11/32 | 908 @ 40 | ||
| D402 BIAS REAR | MU85B16 | 77H | SW | 45006751 | 3.003.50 | 25.71 | 5.51 | 11/32 | 908 @ 40 | |
| D402 BIAS REAR | MU85B16 | 77H | WWW | 45006074 | 3.003.50 | 25.71 | 5.51 | 11/32 | 908 @ 40 |
