ADVENTURE TIRED408
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

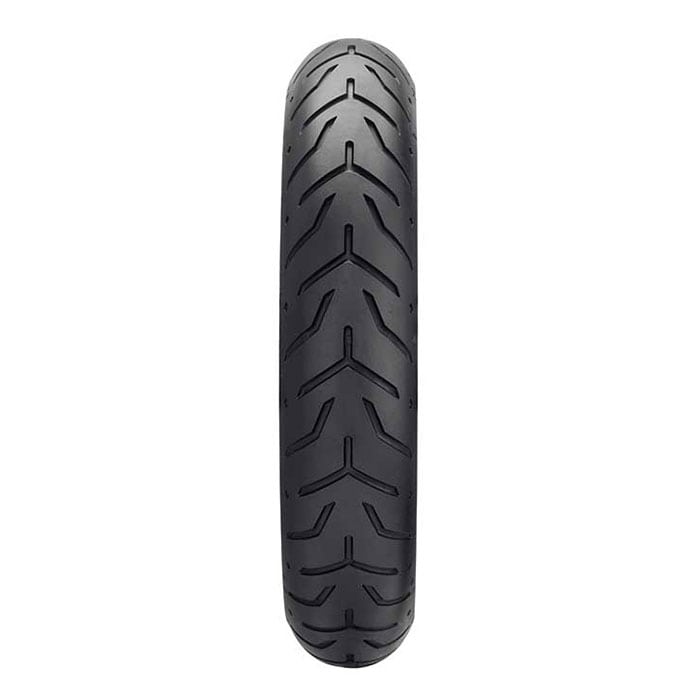

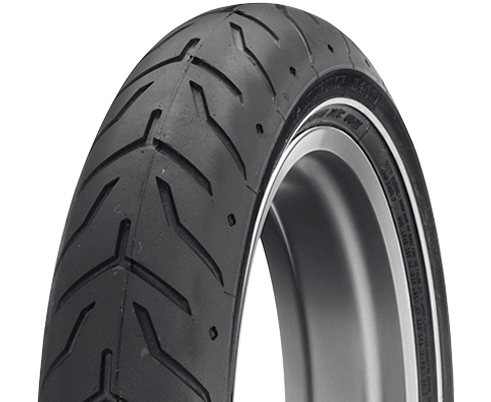

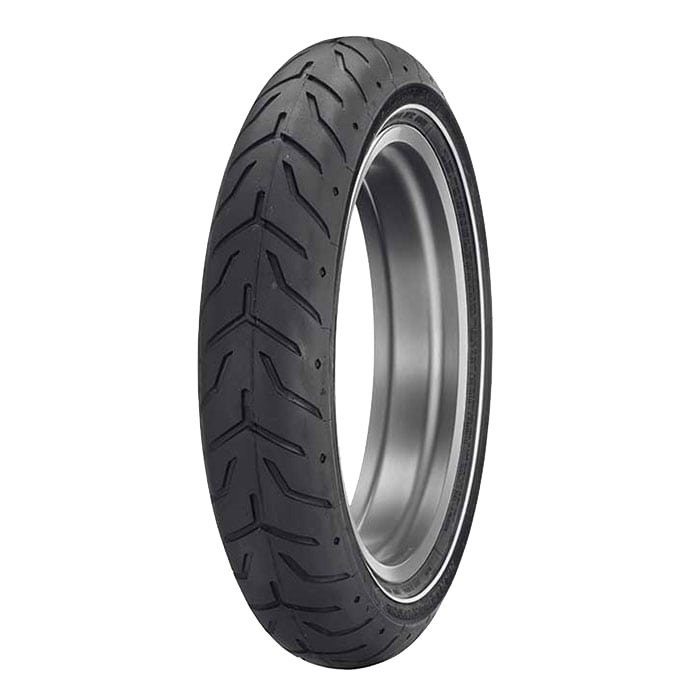

TIRE OVERVIEW D408
Designed for use with the D407 and D407T, the D408F front tire is a touring tire that offers the kind of steering characteristics that complement Harley touring bikes.
Designed for use with the D407 and D407T, the D408F front tire is a touring tire that offers the kind of steering characteristics that complement Harley touring bikes.
Co-Branded
Dunlop is the original brand of tire certified to say Harley-Davidson right on the sidewall.
OE
Meets the rigid demands of the bike manufacturer.
V-Twin
Meant for American-made iron.
ADDITIONAL TIRE
FEATURES
- Developed jointly by Dunlop and Harley-Davidson for select Softail, FL Touring, and CVO bikes.
- The Dunlop Harley-Davidson Tire Series feature special Harley-Davidson branding on the sidewalls.
- Available from OEM dealers only.

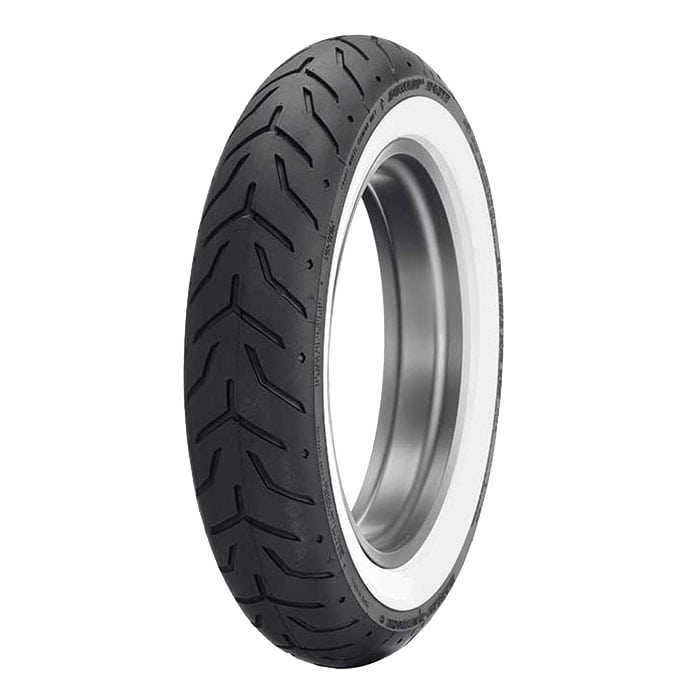

- Sidewall options available in black sidewall (BW) and wide whitewall (WWW).
- Proudly made in the U.S.A. (from domestic and foreign materials)
VIEWING FOR YOUR BIKE:
D408 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| D408F BIAS FRONT | 130/90B16 | 67H | WWW | 45049075 | 3.00 | 25.27 | 5.23 | 5/32 | 677 @ 41 | |
| D408F BIAS FRONT | 130/80B17 | 65H | BW | 45049416 | 3.00 | 25.20 | 5.08 | 5/32 | 639 @ 41 | |
| D408F BIAS FRONT | 130/80B17 | 65H | NW | 45049940 | 3.00 | 25.20 | 5.16 | 5/32 | 639 @ 41 | |
| D408F RADIAL FRONT | 140/75R17 | 67V | BW | 45049479 | 3.50 | 25.27 | 5.76 | 5/32 | 677 @ 42 | |
| D408F BIAS FRONT | 130/70B18 | 63H | BW | 45049436 | 3.50 | 25.32 | 4.91 | 5/32 | 600 @ 41 | |
| D408F RADIAL FRONT | 130/70R18 | 63V | BW | 45049115 | 3.50 | 25.25 | 5.12 | 6/32 | 600 @ 42 | |
| D408F BIAS FRONT | 90/90-19 | 52H | BW | 45049218 | 2.15 | 25.52 | 3.59 | 6/32 | 441 @ 41 | |
| D408F BIAS FRONT | 130/60B19 | 61H | BW | 45049838 | 3.50 | 25.39 | 4.93 | 5/32 | 567 @ 41 | |
| D408F BIAS FRONT | MH90-21 | 54H | BW | 45049511 | 1.852.15 | 27.14 | 3.39 | 5/32 | 467 @ 40 | |
| D408F BIAS FRONT | 130/60B21 | 63H | BW | 45049837 | 3.50 | 27.39 | 4.92 | 6/32 | 600 @ 41 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| D408F BIAS FRONT | 130/90B16 | 67H | WWW | 45049075 | 3.00 | 25.27 | 5.23 | 5/32 | 677 @ 41 | |
| D408F BIAS FRONT | 130/80B17 | 65H | BW | 45049416 | 3.00 | 25.20 | 5.08 | 5/32 | 639 @ 41 | |
| D408F BIAS FRONT | 130/80B17 | 65H | NW | 45049940 | 3.00 | 25.20 | 5.16 | 5/32 | 639 @ 41 | |
| D408F RADIAL FRONT | 140/75R17 | 67V | BW | 45049479 | 3.50 | 25.27 | 5.76 | 5/32 | 677 @ 42 | |
| D408F BIAS FRONT | 130/70B18 | 63H | BW | 45049436 | 3.50 | 25.32 | 4.91 | 5/32 | 600 @ 41 | |
| D408F RADIAL FRONT | 130/70R18 | 63V | BW | 45049115 | 3.50 | 25.25 | 5.12 | 6/32 | 600 @ 42 | |
| D408F BIAS FRONT | 90/90-19 | 52H | BW | 45049218 | 2.15 | 25.52 | 3.59 | 6/32 | 441 @ 41 | |
| D408F BIAS FRONT | 130/60B19 | 61H | BW | 45049838 | 3.50 | 25.39 | 4.93 | 5/32 | 567 @ 41 | |
| D408F BIAS FRONT | MH90-21 | 54H | BW | 45049511 | 1.852.15 | 27.14 | 3.39 | 5/32 | 467 @ 40 | |
| D408F BIAS FRONT | 130/60B21 | 63H | BW | 45049837 | 3.50 | 27.39 | 4.92 | 6/32 | 600 @ 41 |
