Race
DT4
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Dedicated proving grounds in Huntsville, AL -
Dunlop tires are designed & tested for North American riders.

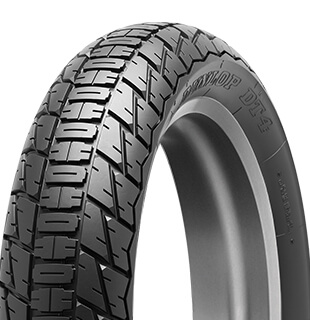

TIRE OVERVIEW DT4
Dunlop’s DT4 tire is the Official Tire of American Flat Track and developed by the countries top professional, vintage, and other racers! The K180 (previously the DT3) has long been the benchmark for professional and amateur flat track racing alike.
Dunlop’s DT4 tire is the Official Tire of American Flat Track and developed by the countries top professional, vintage, and other racers! The K180 (previously the DT3) has long been the benchmark for professional and amateur flat track racing alike.
ADDITIONAL TIRE
FEATURES
- Aggressive tread pattern that offers a fine balance between grip and control.
- Multiple compounds to meet the demanding requirements for all racing courses and conditions.
- Dunlop’s DT4 tire is the Official Tire of American Flat Track.
VIEWING FOR YOUR BIKE:
DT4 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
Enter your tire size
Enter your tire size
Type
Pending selection
Pending selection
Load/Speed Index
Data unavailable
Data unavailable
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
-
-
Applicable Rims
-
-
Recommended Rim
-
-
Overall Diameter
Displayed after selection
Displayed after selection
Overall Width
Displayed after selection
Displayed after selection
Full Tread Depth
-
-
Maximum Load @ PSI
Varies by model
Varies by model
| Tire Name | Size | Position | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |
| DT4 F3 | 130/80-19 | N/A | BW | 4524-8134 | 2.503.003.50 | 27.33 | 5.31 | 8/32 | N/A | |
| DT4 F5 | 130/80-19 | N/A | BW | 4524-8345 | 2.503.003.50 | 27.33 | 5.31 | 8/32 | N/A | |
| DT4 R3 | 140/80-19 | N/A | BW | 4524-8315 | 2.753.503.75 | 27.82 | 5.93 | 8/32 | N/A | |
| DT4 R5 | 140/80-19 | N/A | BW | 4524-8178 | 2.753.503.75 | 27.82 | 5.93 | 5.93 | N/A | |
| DT4 R9 | 140/80-19 | N/A | BW | 4524-8390 | 2.753.503.75 | 27.82 | 5.93 | 8/32 | N/A |
| Tire Name | Position | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |
|---|---|---|---|---|---|---|---|---|---|---|
| DT4 F3 | 130/80-19 | N/A | BW | 4524-8134 | 2.503.003.50 | 27.33 | 5.31 | 8/32 | N/A | |
| DT4 F5 | 130/80-19 | N/A | BW | 4524-8345 | 2.503.003.50 | 27.33 | 5.31 | 8/32 | N/A | |
| DT4 R3 | 140/80-19 | N/A | BW | 4524-8315 | 2.753.503.75 | 27.82 | 5.93 | 8/32 | N/A | |
| DT4 R5 | 140/80-19 | N/A | BW | 4524-8178 | 2.753.503.75 | 27.82 | 5.93 | 5.93 | N/A | |
| DT4 R9 | 140/80-19 | N/A | BW | 4524-8390 | 2.753.503.75 | 27.82 | 5.93 | 8/32 | N/A |
American Flat Track Technical Data
- Tire Model
- POS
- Size
- compound(s)
-
Durability
Max Grip Max Life
-
(Inches)
Rec. Rim
Rim Range
-
(MM)
Width
DIA
-
Inflation Pressure (PSI)
Cold
DT4
Front
120
FR3 (S)
3.5
2.75-3.5
120
607
1/4 Mile: 12-14
1/2 Mile: 16-24
1 Mile: 26-32
1/2 Mile: 16-24
1 Mile: 26-32
Front
130/80-19
F3 (S)
F5 (M)
3.0
2.25
135
694
1/4 Mile: 12-14
1/2 Mile: 16-24
1 Mile: 26-32
1/2 Mile: 16-24
1 Mile: 26-32
Rear
140/80-19
R3 (S)
R5 (M)
R7 (M+)
R9 (H)
3.5
2.75-3.5
151
707
1/4 Mile: 12-14
1/2 Mile: 16-24
1 Mile: 26-32
1/2 Mile: 16-24
1 Mile: 26-32
DT4
-
120
Front
DT4
120
Front
Compounds & Durability - FR3 (S)
Max Grip Max Life-
rec rim (inch)
3.5
-
rim range (Inch)
2.75-3.5
-
width (mm)
120
-
Diameter (MM)
607
COLD 1/4 Mile: 12-14
1/2 Mile: 16-24
1 Mile: 26-32inflation pressure (PSI) -
130/80-19
Front
DT4
130/80-19
Front
Compounds & Durability - F3 (S)
- F5 (M)
Max Grip Max Life-
rec rim (inch)
3.0
-
rim range (Inch)
2.25
-
width (mm)
135
-
Diameter (MM)
694
COLD 1/4 Mile: 12-14
1/2 Mile: 16-24
1 Mile: 26-32inflation pressure (PSI) -
140/80-19
Rear
DT4
140/80-19
Rear
Compounds & Durability - R3 (S)
- R5 (M)
- R7 (M+)
- R9 (H)
Max Grip Max Life-
rec rim (inch)
3.5
-
rim range (Inch)
2.75-3.5
-
width (mm)
151
-
Diameter (MM)
707
COLD 1/4 Mile: 12-14
1/2 Mile: 16-24
1 Mile: 26-32inflation pressure (PSI)
** Optimum inflation pressure varies from track to track, depending upon track length, surface conditions and machine size.
Dunlop DT4 and K180 Flat Track tires are Tubeless, but an inner tube and rim band is required if using a tube-type rim.
Dunlop recommends that if tire warmers are used they are set at 70°-80°C for 45 minutes to 1 hour (maximum); tire performance degradation may occur if tires are subjected to repeated tire warming cycles, and/or temperatures/times in excess of these.
Width and Diameter are measured on recommended rim.
