ADVENTURE TIREElite 4
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

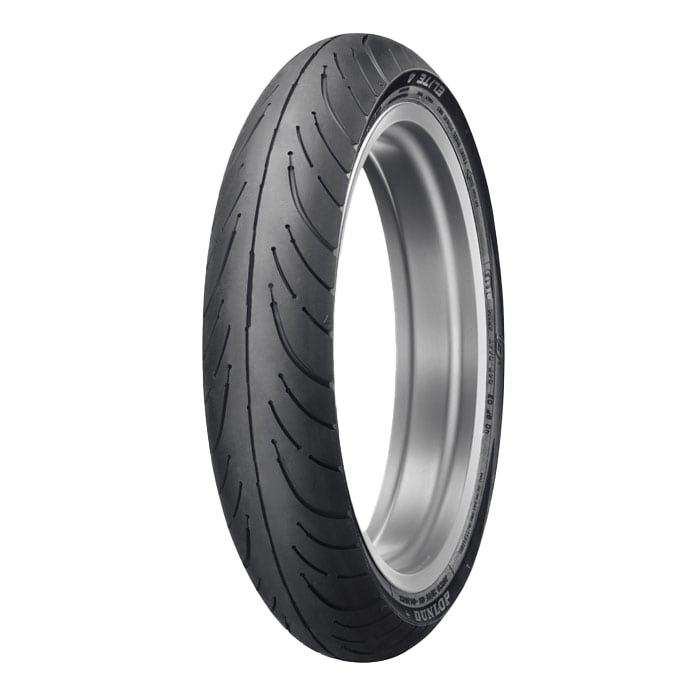

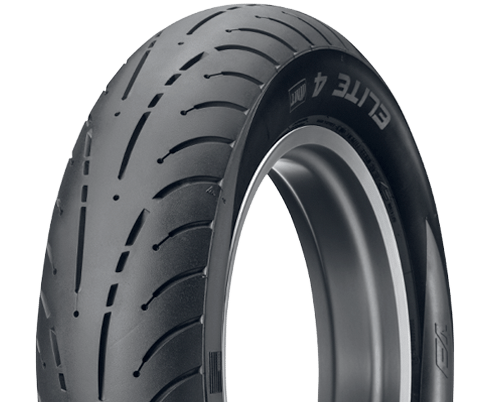

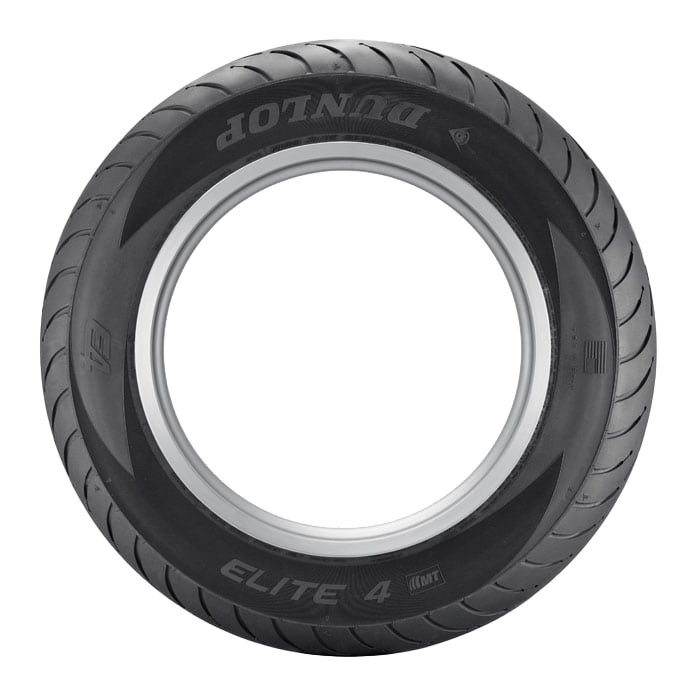

TIRE OVERVIEW Elite 4
Miles, miles, and more miles: The Elite 4 with MT MultiTread™ technology in the rear provides significantly more mileage than single compound tires. It’s also available in sizes to fit hundreds of different models, from early 1980s motorcycles to modern Gold Wings.
Miles, miles, and more miles: The Elite 4 with MT MultiTread™ technology in the rear provides significantly more mileage than single compound tires. It’s also available in sizes to fit hundreds of different models, from early 1980s motorcycles to modern Gold Wings.
Multi-Tread
Two compounds in the same tread give riders great mileage without sacrificing handling.
ADDITIONAL TIRE
FEATURES

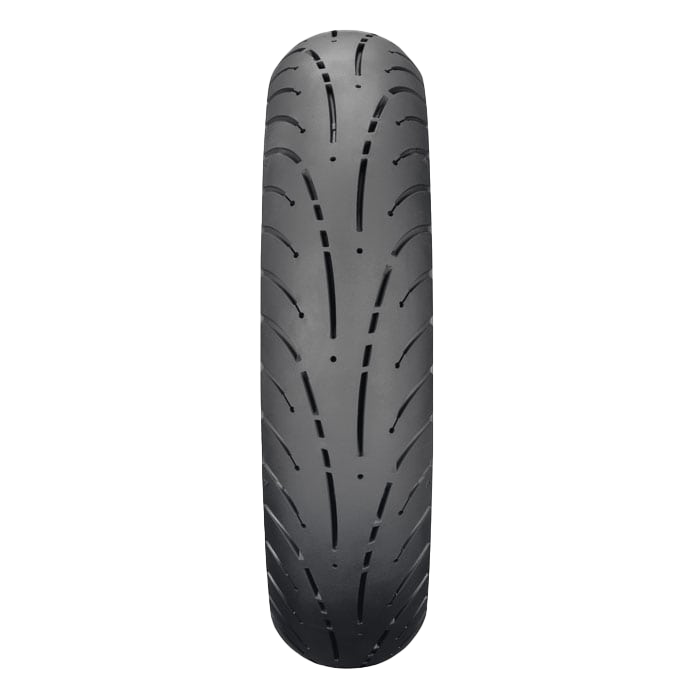

- All Elite 4 rear tires utilize Dunlop’s MT Multi-Tread™ technology with a long-wearing compound in the center of the tire and a lateral-grip compound on each shoulder, providing increased mileage without sacrificing handling.

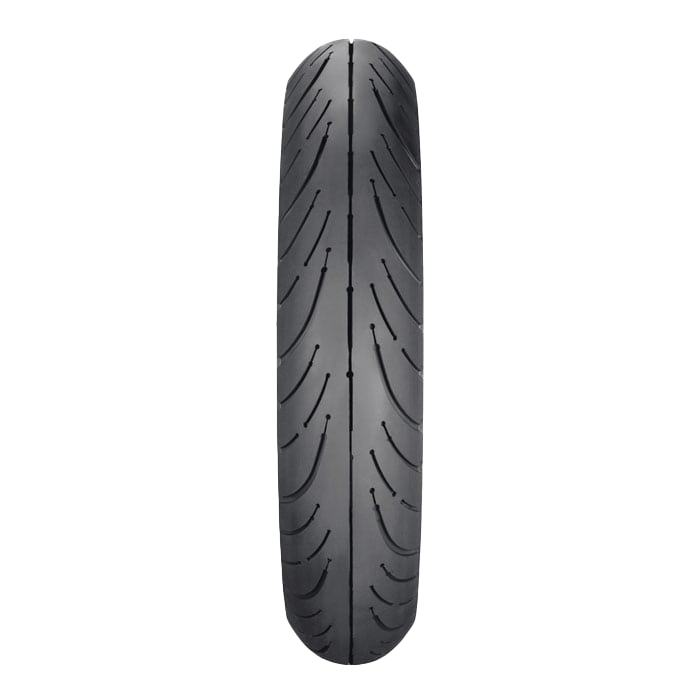

- Tread pattern helps provide class-leading wet-pavement performance, even wear over the life of the tire, and less road noise.
- Available in radial and bias-ply construction, the Elite 4 fits hundreds of touring, cruiser, and standard bikes, including current and non-current machines.

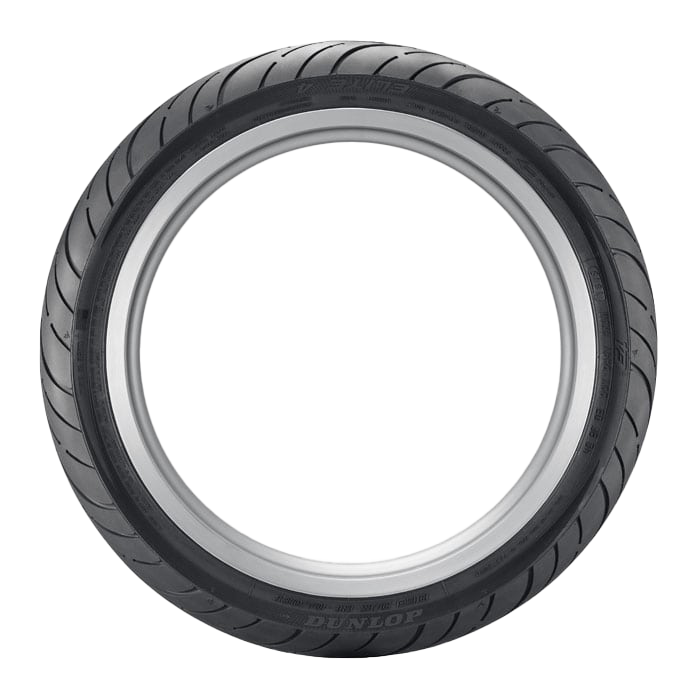

- Dunlop’s continuously wound hexagonal bead construction stiffens the lower sidewall and supplies the rider with superior feel when cornering, as well as enhancing overall ride quality.
- High-mileage, even-wear characteristics, and great grip- the all-new Elite 4.
- Proudly made in the U.S.A. (from domestic and foreign materials)
TIRE HIGHLIGHTS
For Miles and Miles...
In many cases, riders will be able to fit E4s to their machines, and increase the mileage compared to the single-compound tires they previously had to choose from.
Unexpected Weather? No Problem!
The new tread pattern first offers excellent grip in both wet and dry conditions—especially important for riders who don’t let a little downpour stop them. Second, the tread is designed to provide even wear from center to shoulder for consistent handling as the miles add up. And third, both front and rear patterns were designed to limit road noise for a quieter ride.
Classic and Modern Alike
The E4 gives new life to older bikes by taking
all those evolutionary advancements to the next level with better mileage, more wet and dry grip, less road noise and improved ride compliance, a huge benefit for both older and new machines.
Multi-tread
Technology
WATCH VIDEO Dunlop’s Multi-Tread (MT) rear tire incorporates a long-wearing compound in the center of the tire tread and a lateral-grip compound on each shoulder to enhance cornering performance and feel.
Long-wearing compound Lateral grip compound
VIEWING FOR YOUR BIKE:
Elite 4 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| ELITE 4 BIAS FRONT | 130/90B16 | 73H | 45119516 | 2.503.003.50 | 25.06 | 5.18 | 6/32 | 805 @ 42 | ||
| ELITE 4 RADIAL FRONT | 150/80R17 | 72H | 45119300 | 3.504.25 | 26.75 | 6.02 | 6/32 | 783 @ 41 | ||
| ELITE 4 FRONT | 130/70-18 | 63H | 45119478 | 3.003.504.00 | 25.24 | 4.89 | 6/32 | 600 @ 41 | ||
| ELITE 4 RADIAL FRONT | 130/70R18 | 63H | 45119687 | 3.504.00 | 25.48 | 4.91 | 6/32 | 600 @ 41 | ||
| ELITE 4 BIAS REAR | 150/80B16 | 77H | 45119986 | 3.003.504.25 | 25.50 | 5.97 | 10/32 | 908 @ 42 | ||
| ELITE 4 BIAS REAR | 160/80B16 | 80H | 45119546 | 3.003.754.50 | 26.26 | 6.26 | 11/32 | 992 @ 42 | ||
| ELITE 4 RADIAL REAR | 180/60R16 | 80H | 45119319 | 5.005.50 | 24.43 | 6.99 | 10/32 | 992 @ 42 | ||
| ELITE 4 RADIAL REAR | 180/70R16 | 77H | 45119303 | 5.005.50 | 26.00 | 7.02 | 10/32 | 908 @ 41 | ||
| ELITE 4 REAR | 200/55R16 | 77H | 45119548 | 6.006.50 | 24.41 | 7.80 | 10/32 | 908 @ 41 | ||
| ELITE 4 RADIAL REAR | 250/40R18 | 81V | 45119895 | 8.509.009.50 | 25.76 | 9.67 | 8/32 | 1019 @ 42 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| ELITE 4 BIAS FRONT | 130/90B16 | 73H | 45119516 | 2.503.003.50 | 25.06 | 5.18 | 6/32 | 805 @ 42 | ||
| ELITE 4 RADIAL FRONT | 150/80R17 | 72H | 45119300 | 3.504.25 | 26.75 | 6.02 | 6/32 | 783 @ 41 | ||
| ELITE 4 FRONT | 130/70-18 | 63H | 45119478 | 3.003.504.00 | 25.24 | 4.89 | 6/32 | 600 @ 41 | ||
| ELITE 4 RADIAL FRONT | 130/70R18 | 63H | 45119687 | 3.504.00 | 25.48 | 4.91 | 6/32 | 600 @ 41 | ||
| ELITE 4 BIAS REAR | 150/80B16 | 77H | 45119986 | 3.003.504.25 | 25.50 | 5.97 | 10/32 | 908 @ 42 | ||
| ELITE 4 BIAS REAR | 160/80B16 | 80H | 45119546 | 3.003.754.50 | 26.26 | 6.26 | 11/32 | 992 @ 42 | ||
| ELITE 4 RADIAL REAR | 180/60R16 | 80H | 45119319 | 5.005.50 | 24.43 | 6.99 | 10/32 | 992 @ 42 | ||
| ELITE 4 RADIAL REAR | 180/70R16 | 77H | 45119303 | 5.005.50 | 26.00 | 7.02 | 10/32 | 908 @ 41 | ||
| ELITE 4 REAR | 200/55R16 | 77H | 45119548 | 6.006.50 | 24.41 | 7.80 | 10/32 | 908 @ 41 | ||
| ELITE 4 RADIAL REAR | 250/40R18 | 81V | 45119895 | 8.509.009.50 | 25.76 | 9.67 | 8/32 | 1019 @ 42 |
