ADVENTURE TIREGeomax AT82
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America
TIRE OVERVIEW Geomax AT82
Rugged off-road racing tire developed with decades of experience and by the world’s best racers
Rugged off-road racing tire developed with decades of experience and by the world’s best racers
PCBT
Reduces knob deformation for better handling and performance.
Soft
Works in soft terrain and loamy soil.
Intermediate
Works in a mix of packed and loose soil.
Hard
Works in hard packed conditions.
ADDITIONAL TIRE
FEATURES
- New front tread pattern design increases grip and predictability under load.
- New rear pattern provides increased drive grip and consistency while cornering.
- New Progressive Cornering Block Technology (PCBT) design in both front and rear tires reduces knob deformation for better handling and performance.
- Increased damping and bump absorption due to new profile and construction.
- New bi-directional rear tread pattern has been optimized for both soft and hard terrains simply by changing the mounted direction.
- Updated pattern and knob design provide increased durability.
- New 90/100-21 front size and 120/90-19 rear size.
TIRE HIGHLIGHTS
Bi-Directional Pattern
Dunlop created an all new Bi-Directional rear pattern to excel in soft/sand and intermediate/hard terrain simply by changing the mounted direction.

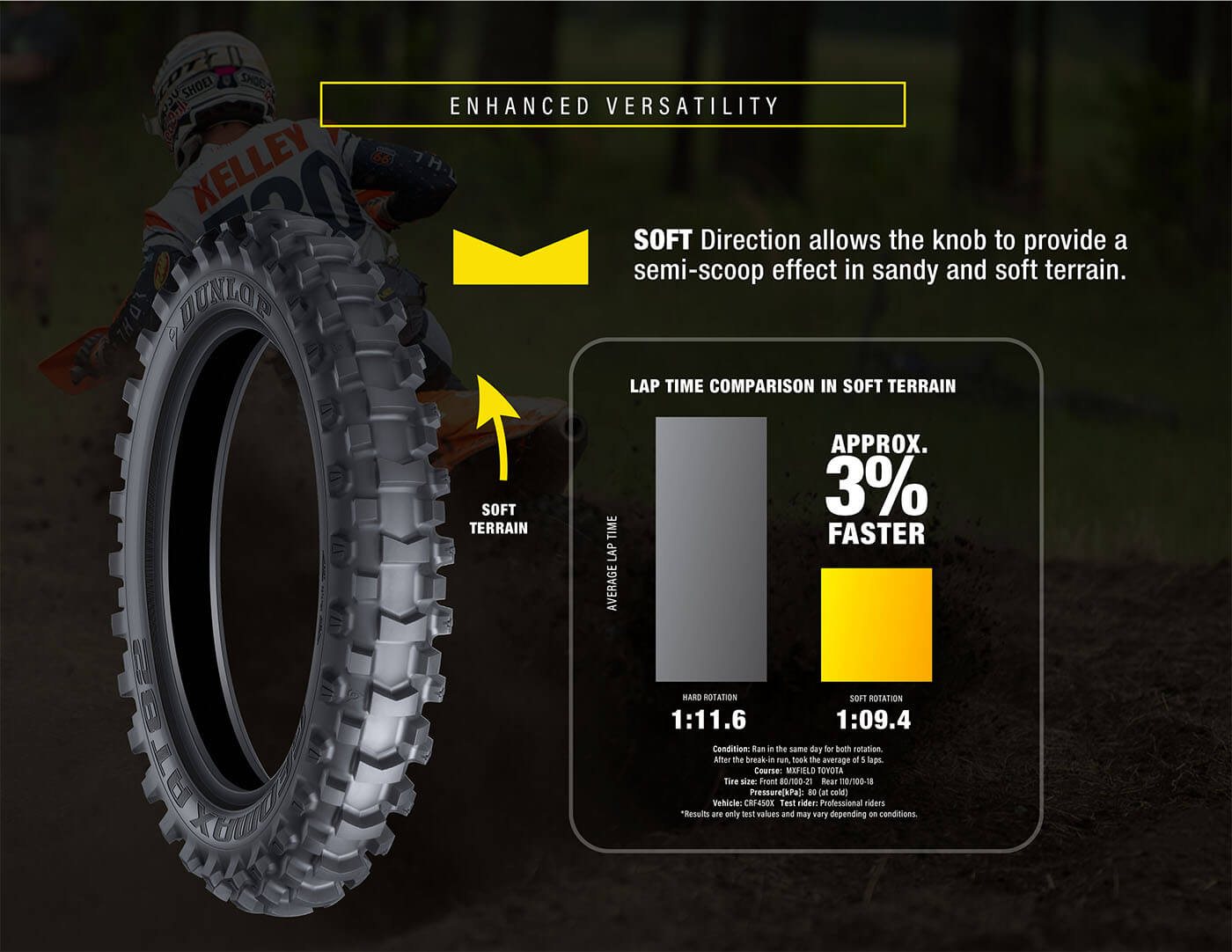

Soft Terrain
SOFT direction allows the knob to provide a semi-scoop effect in sandy and soft terrain.

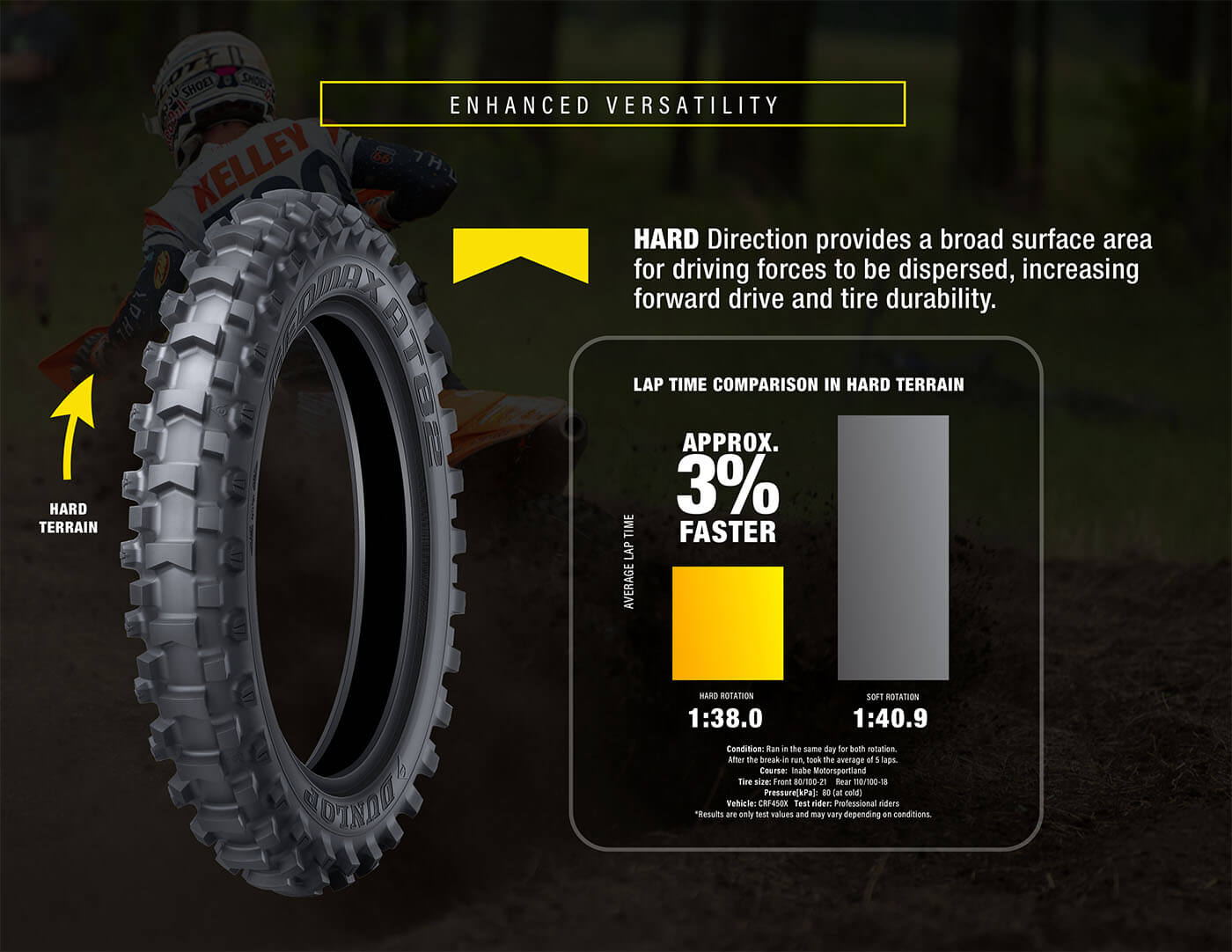

Hard Terrain
HARD direction provides a broad surface area for driving forces to be dispersed, increasing forward drive and tire durability.
VIEWING FOR YOUR BIKE:
Geomax AT82 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| GEOMAX AT82 FRONT | 80/100-21 | 51M | 45261500 | 1.601.852.15 | 28.07 | 3.54 | 16/32 | |||
| GEOMAX AT82 FRONT | 90/100-21 | 57M | 45261501 | 1.852.152.50 | 28.23 | 3.70 | 16/32 | |||
| GEOMAX AT82 REAR | 110/100-18 | 64M | 45261504 | 2.152.503.00 | 27.44 | 4.88 | 20/32 | |||
| GEOMAX AT82 REAR | 120/90-18 | 65M | 45261505 | 2.502.753.50 | 26.73 | 5.28 | 20/32 | |||
| GEOMAX AT82 REAR | 110/90-19 | 62M | 45261502 | 2.152.503.00 | 27.64 | 4.88 | 20/32 | |||
| GEOMAX AT82 REAR | 120/90-19 | 66M | 45261503 | 2.502.753.50 | 27.72 | 5.31 | 20/32 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| GEOMAX AT82 FRONT | 80/100-21 | 51M | 45261500 | 1.601.852.15 | 28.07 | 3.54 | 16/32 | |||
| GEOMAX AT82 FRONT | 90/100-21 | 57M | 45261501 | 1.852.152.50 | 28.23 | 3.70 | 16/32 | |||
| GEOMAX AT82 REAR | 110/100-18 | 64M | 45261504 | 2.152.503.00 | 27.44 | 4.88 | 20/32 | |||
| GEOMAX AT82 REAR | 120/90-18 | 65M | 45261505 | 2.502.753.50 | 26.73 | 5.28 | 20/32 | |||
| GEOMAX AT82 REAR | 110/90-19 | 62M | 45261502 | 2.152.503.00 | 27.64 | 4.88 | 20/32 | |||
| GEOMAX AT82 REAR | 120/90-19 | 66M | 45261503 | 2.502.753.50 | 27.72 | 5.31 | 20/32 |
