ADVENTURE TIREGeomax Factory Spec
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

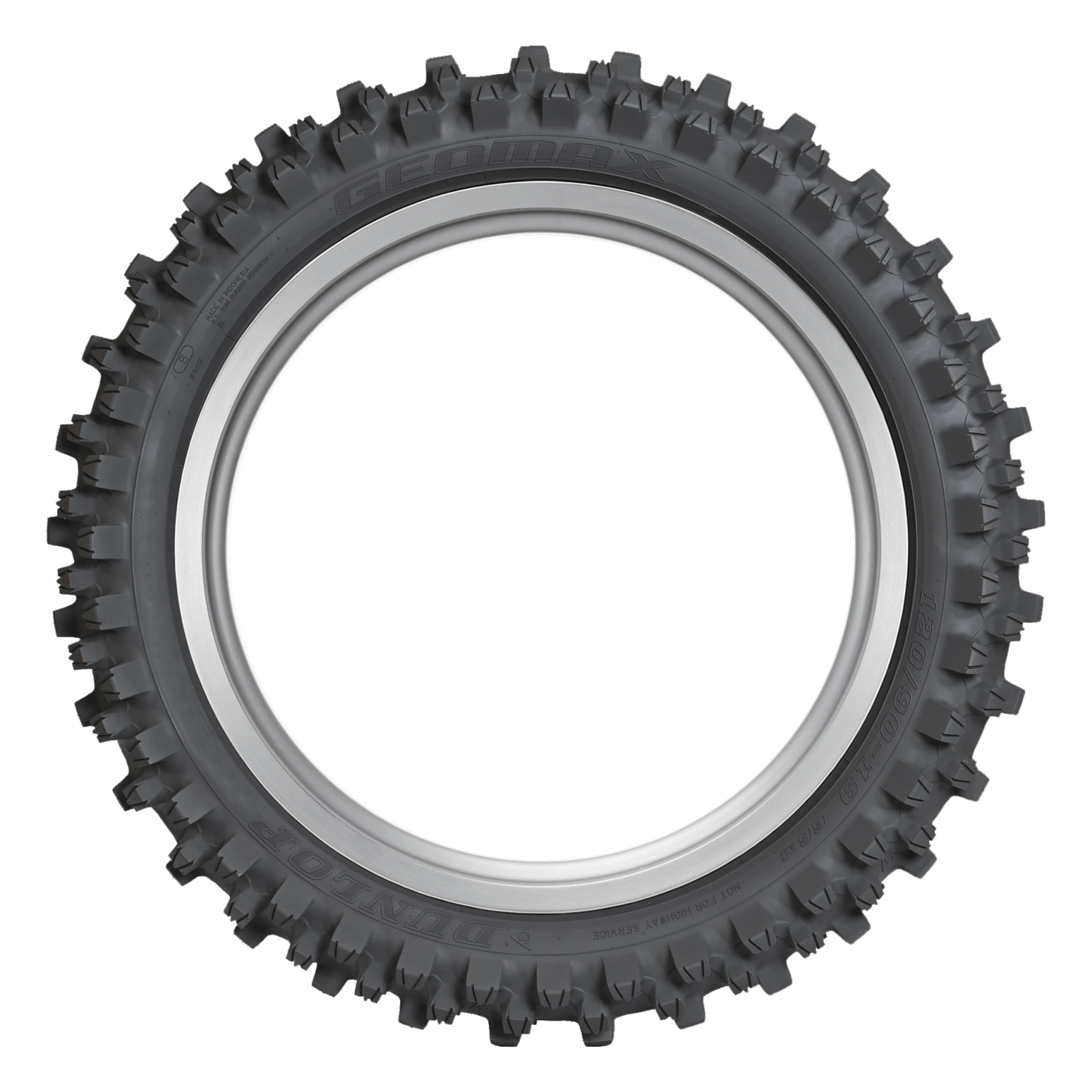

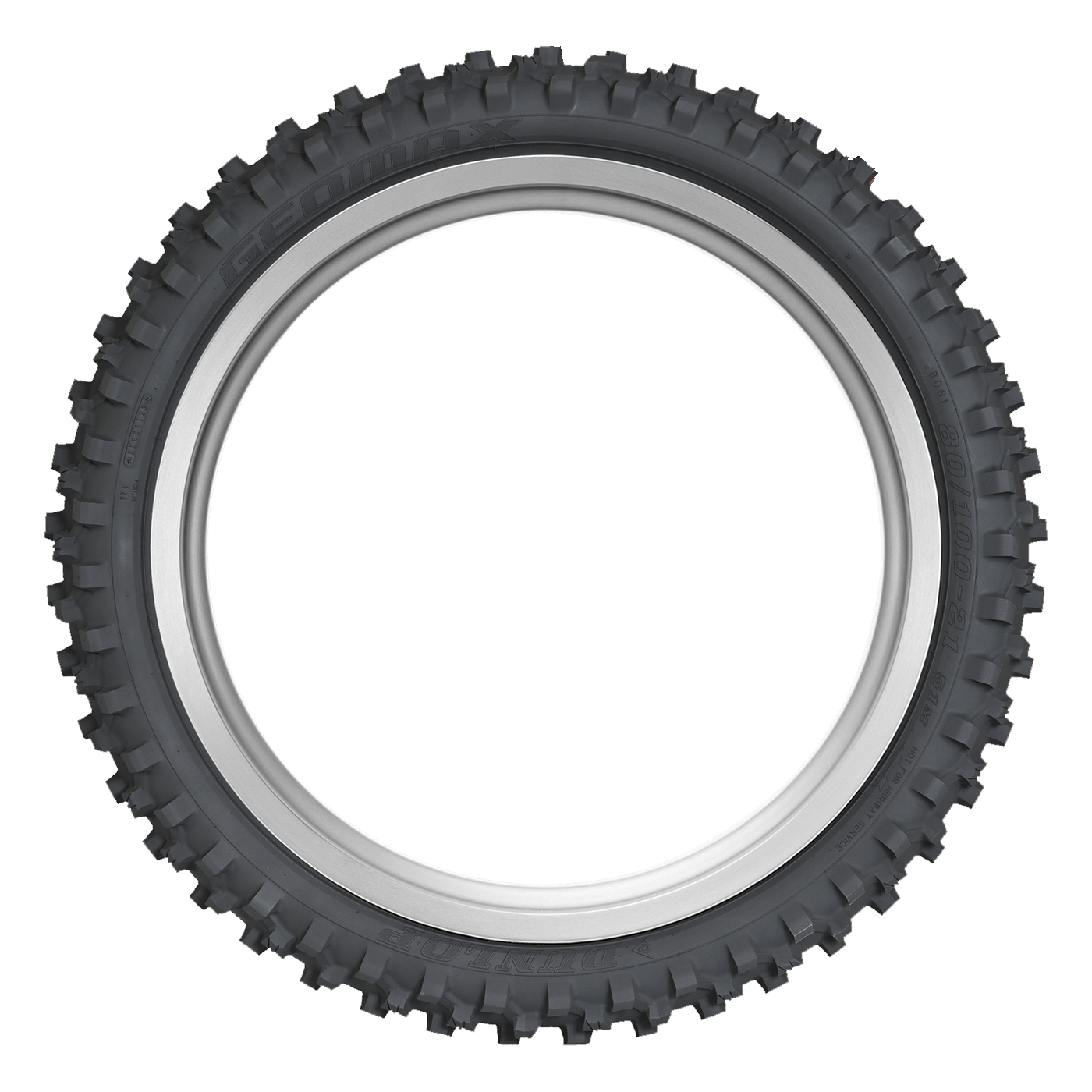

TIRE OVERVIEW Geomax Factory Spec
We race what we sell. The Factory Spec breeds confidence and delivers a level of feeling, response, and traction like never before.
We race what we sell. The Factory Spec breeds confidence and delivers a level of feeling, response, and traction like never before.
PCBT
Reduces knob deformation for better handling and performance.
Soft
Works in soft terrain and loamy soil.
Intermediate
Works in a mix of packed and loose soil.
Off-Road
Provide grip and handling for off-road performance
ADDITIONAL TIRE
FEATURES
- Single radius profile to provide the ultimate control characteristics for when the track conditions deteriorate and become rougher to race.
- Advanced Apex on the Factory Spec provides a larger apex for improved responsiveness and increased support for higher speeds and harsher landings.
- Proprietary Ultra-High Molecular Mass compound features extended polymer chains that increases bonding points with the carbon molecules to deliver a rubber that is extremely strong allow the knobs to penetrate the ground more effectively.
- Available exclusively at your local KTM, Husqvarna, Gas Gas authorized dealer.
- CLICK HERE for standard production MX34
VIEWING FOR YOUR BIKE:
Geomax Factory Spec SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| GEOMAX FACTORY SPEC Front | 80/100-21 | 51M | 45276500 | 1.60 | 28.03 | 3.66 | 16/32 | |||
| GEOMAX FACTORY SPEC REAR | 110/90-19 | 62M | 45276501 | 1.852.15 | 27.48 | 4.92 | 23/32 | |||
| GEOMAX FACTORY SPEC REAR | 120/90-19 | 66M | 45276502 | 2.152.50 | 27.63 | 5.24 | 23 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| GEOMAX FACTORY SPEC Front | 80/100-21 | 51M | 45276500 | 1.60 | 28.03 | 3.66 | 16/32 | |||
| GEOMAX FACTORY SPEC REAR | 110/90-19 | 62M | 45276501 | 1.852.15 | 27.48 | 4.92 | 23/32 | |||
| GEOMAX FACTORY SPEC REAR | 120/90-19 | 66M | 45276502 | 2.152.50 | 27.63 | 5.24 | 23 |
