ADVENTURE TIREGeomax MX12
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

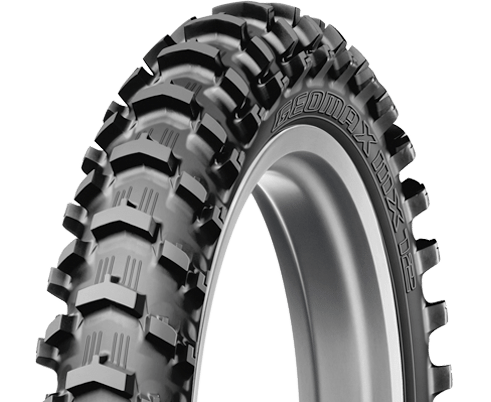

TIRE OVERVIEW Geomax MX12
The MX12 delivers next-level performance in a broader range of sand and mud-terrain through increased cornering acceleration grip, enhanced handling in ruts, and increased bump control. Designed to deliver optimum traction in sand and mud conditions, they are also available in mini sizes.
The MX12 delivers next-level performance in a broader range of sand and mud-terrain through increased cornering acceleration grip, enhanced handling in ruts, and increased bump control. Designed to deliver optimum traction in sand and mud conditions, they are also available in mini sizes.
Sand/Mud
Great performance for tough environments.
Block-In-A-Block
Offers more progressive cornering action and additional slide control.
Off-Road
Provide grip and handling for off-road performance
ADDITIONAL TIRE
FEATURES
- Designed for soft-terrain applications, the MX12 excels in extreme sand and mud conditions.

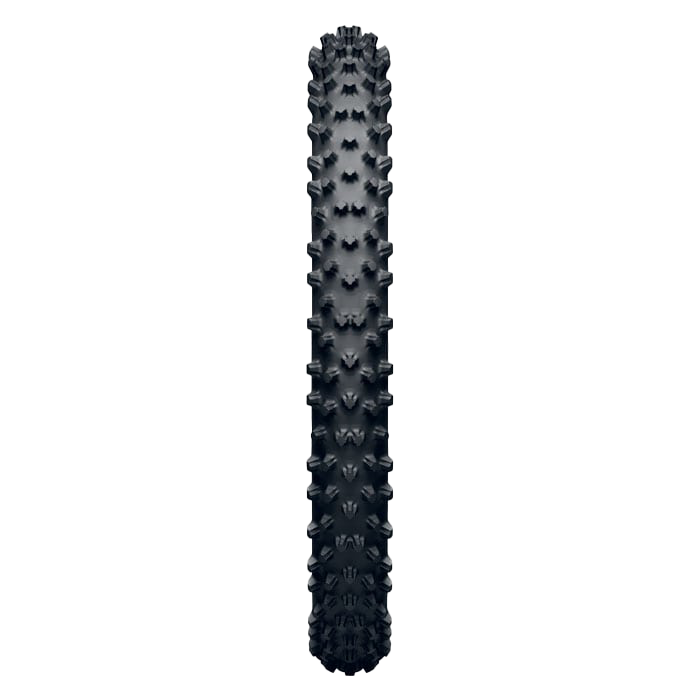

- Innovative tread pattern includes new V-Block technology that increases traction and does a better job clearing the tire in muddy conditions to maintain maximum performance.

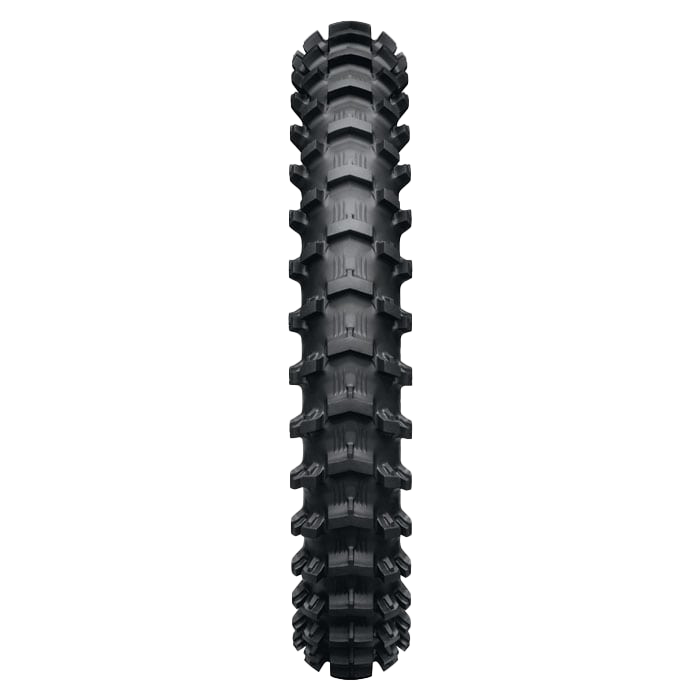

- Tread pattern includes Dunlop’s exclusive Block-In-A-Block Progressive Cornering Block Technology (PCBT) in the rear for enhanced cornering traction and slide control.
- Recessed flex joints between tread blocks improve compliance for enhanced traction and ride comfort.
- Narrower tire profiles increase length of contact patch for improved bump absorption and improved steering in rutted conditions.
VIEWING FOR YOUR BIKE:
Geomax MX12 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| GEOMAX MX12 FRONT | 80/100-21 | 51M | 45167263 | 1.60 | 27.95 | 3.54 | 16/32 | |||
| GEOMAX MX12 REAR | 70/100-10 | 41J | 45167324 | 1.50 | 15.60 | 3.20 | 13/32 | |||
| GEOMAX MX12 REAR | 80/100-12 | 41M | 45167284 | 1.60 | 18.40 | 3.70 | 16/32 | |||
| GEOMAX MX12 REAR | 90/100-14 | 49M | 45167807 | 1.60 | 21.40 | 4.10 | 18/32 | |||
| GEOMAX MX12 REAR | 90/100-16 | 51M | 45167455 | 1.85 | 23.60 | 4.20 | 18/32 | |||
| GEOMAX MX12 REAR | 110/100-18 | 64M | 45167059 | 2.15 | 27.30 | 5.10 | 20/32 | |||
| GEOMAX MX12 REAR | 100/90-19 | 57M | 45167984 | 1.85 | 27.05 | 4.45 | 18/32 | |||
| GEOMAX MX12 REAR | 110/90-19 | 62M | 45167422 | 2.15 | 27.44 | 4.76 | 21/32 | |||
| GEOMAX MX12 REAR | 120/80-19 | 63M | 45167282 | 2.15 | 27.30 | 5.10 | 20/32 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| GEOMAX MX12 FRONT | 80/100-21 | 51M | 45167263 | 1.60 | 27.95 | 3.54 | 16/32 | |||
| GEOMAX MX12 REAR | 70/100-10 | 41J | 45167324 | 1.50 | 15.60 | 3.20 | 13/32 | |||
| GEOMAX MX12 REAR | 80/100-12 | 41M | 45167284 | 1.60 | 18.40 | 3.70 | 16/32 | |||
| GEOMAX MX12 REAR | 90/100-14 | 49M | 45167807 | 1.60 | 21.40 | 4.10 | 18/32 | |||
| GEOMAX MX12 REAR | 90/100-16 | 51M | 45167455 | 1.85 | 23.60 | 4.20 | 18/32 | |||
| GEOMAX MX12 REAR | 110/100-18 | 64M | 45167059 | 2.15 | 27.30 | 5.10 | 20/32 | |||
| GEOMAX MX12 REAR | 100/90-19 | 57M | 45167984 | 1.85 | 27.05 | 4.45 | 18/32 | |||
| GEOMAX MX12 REAR | 110/90-19 | 62M | 45167422 | 2.15 | 27.44 | 4.76 | 21/32 | |||
| GEOMAX MX12 REAR | 120/80-19 | 63M | 45167282 | 2.15 | 27.30 | 5.10 | 20/32 |
