ADVENTURE TIREGeomax MX14
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

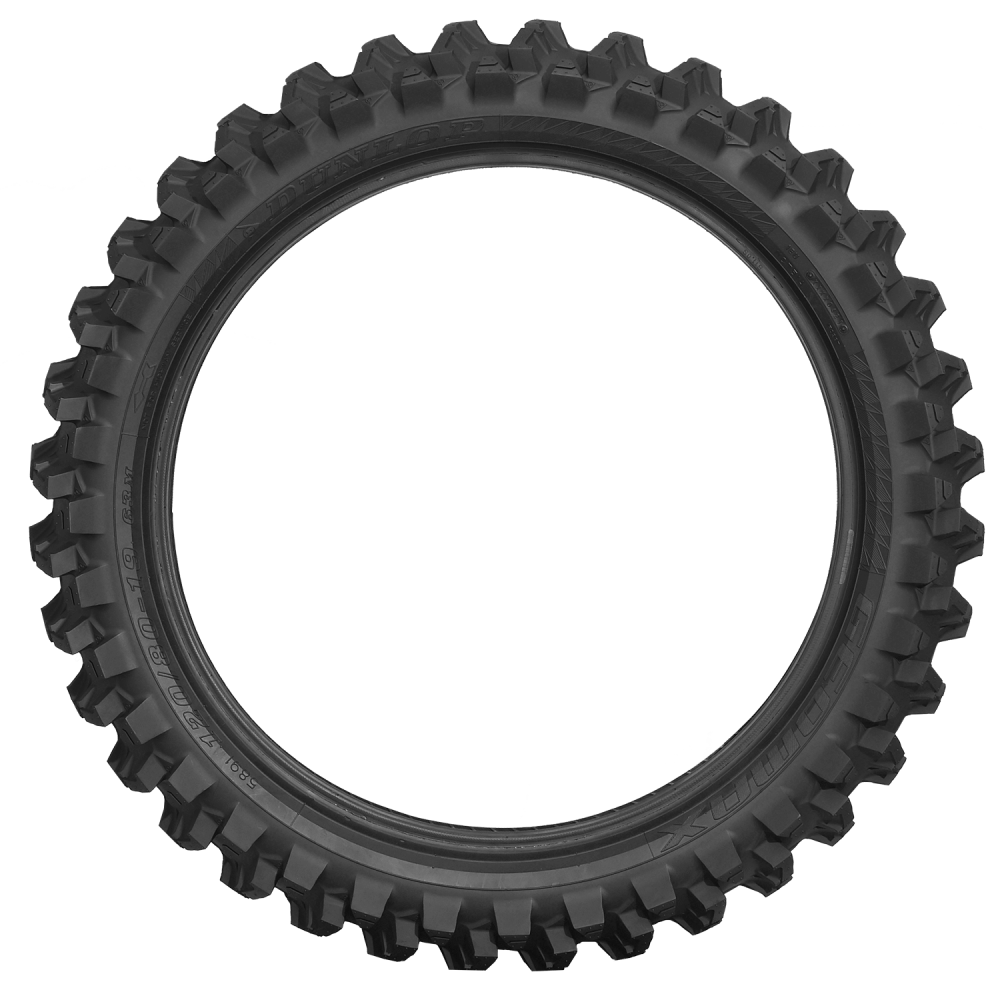

TIRE OVERVIEW Geomax MX14
The MX14 offers increased traction/drive-grip on starts, straights and when exiting corners, improved braking performance for more rear tire stopping power in harsh conditions, perfect slide control when braking and cornering in sand and mud, and enhanced absorption/damping performance to keep the tire on the ground and digging in.
The MX14 offers increased traction/drive-grip on starts, straights and when exiting corners, improved braking performance for more rear tire stopping power in harsh conditions, perfect slide control when braking and cornering in sand and mud, and enhanced absorption/damping performance to keep the tire on the ground and digging in.
V-Block
Maximum performance in muddy conditions.
Sand/Mud
Great performance for tough environments.
Off-Road
Provide grip and handling for off-road performance
ADDITIONAL TIRE
FEATURES
- Designed to give racers a true competitive edge by improving overall performance in a broader range of conditions.
- Offers increased traction/drive-grip on starts, straights and when exiting corners, improved braking performance for more rear tire stopping power in harsh conditions.
- Perfect slide control when braking and cornering in sand and mud.
- Optimized tread blocks that can more effectively penetrate and scoop sandy/muddy terrain thanks to the new Reinforced Scoop Technology (RST) and V-Block Technology Advanced (V-BT Advanced) designs.
- New Flexible Fin Technology (FFT) allows for improved stopping power and more progressive brake control.
- New carcass construction to improve absorption and damping by adding a ply to improve linearity when load is applied.
- The MX3S or MX33 front tire can be paired with the MX14 rear tire.
TIRE HIGHLIGHTS

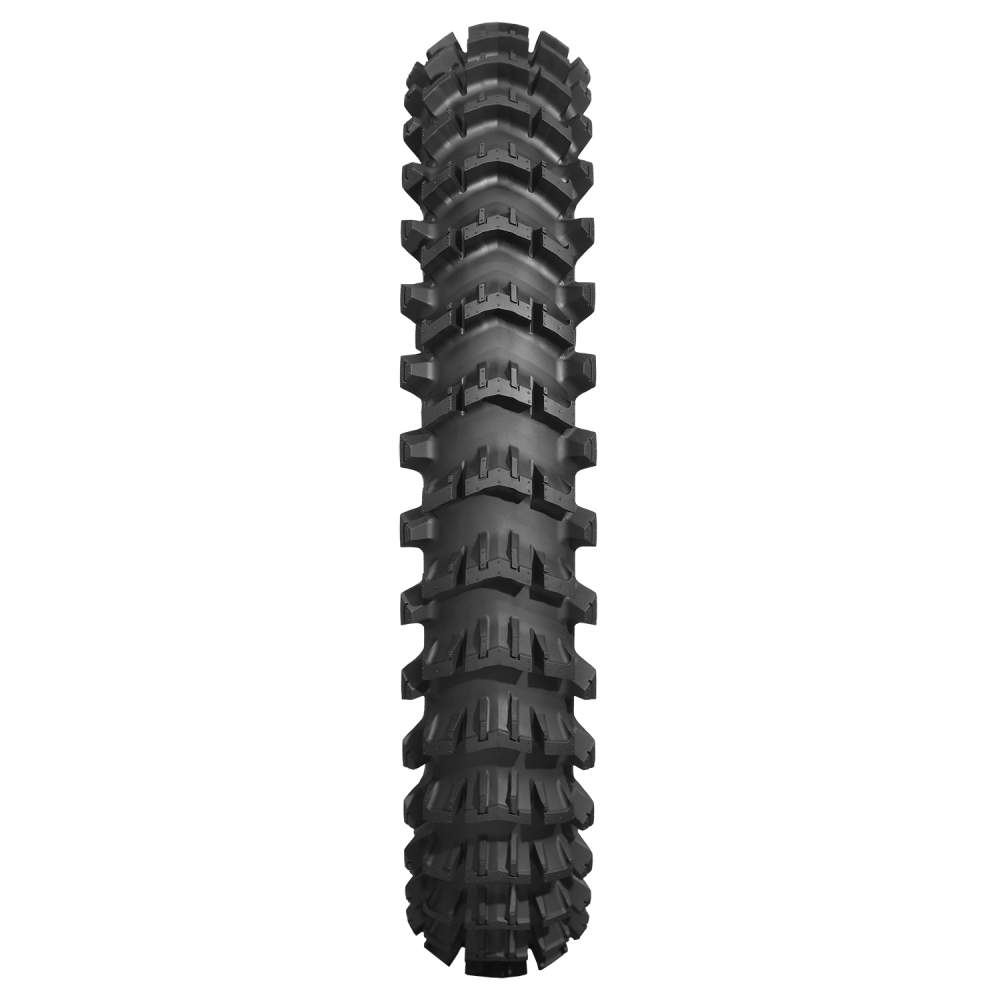

Optimized Tread Design
V-BT has enhanced block angles for improved slide control for perfectly controlled performance when cornering.
Additional Ply Added
Improved absorption/damping performance by optimizing the sidewall flex when load is applied.
18% Taller Blocks
V-Block knobs have been increased to improve sand/mud penetration.
VIEWING FOR YOUR BIKE:
Geomax MX14 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| GEOMAX MX14 REAR | 70/100-10 | 41J | 45259500 | 1.401.50 | 15.52 | 3.19 | 15/32 | |||
| GEOMAX MX14 REAR | 80/100-12 | 41M | 45259501 | 1.60 | 18.40 | 3.66 | 17/32 | |||
| GEOMAX MX14 REAR | 90/100-14 | 49M | 45259502 | 1.601.85 | 21.47 | 4.06 | 19/32 | |||
| GEOMAX MX14 REAR | 90/100-16 | 51M | 45259503 | 1.85 | 23.68 | 4.22 | 20/32 | |||
| GEOMAX MX14 REAR | 110/100-18 | 64M | 45259507 | 2.152.503.00 | 27.38 | 5.00 | 21/32 | |||
| GEOMAX MX14 REAR | 100/90-19 | 57M | 45259504 | 1.852.502.75 | 26.95 | 4.61 | 22/32 | |||
| GEOMAX MX14 REAR | 110/90-19 | 62M | 45259505 | 2.152.503.00 | 27.38 | 4.73 | 23/32 | |||
| GEOMAX MX14 REAR | 120/80-19 | 63M | 45259506 | 2.502.753.59 | 27.34 | 5.08 | 24/32 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| GEOMAX MX14 REAR | 70/100-10 | 41J | 45259500 | 1.401.50 | 15.52 | 3.19 | 15/32 | |||
| GEOMAX MX14 REAR | 80/100-12 | 41M | 45259501 | 1.60 | 18.40 | 3.66 | 17/32 | |||
| GEOMAX MX14 REAR | 90/100-14 | 49M | 45259502 | 1.601.85 | 21.47 | 4.06 | 19/32 | |||
| GEOMAX MX14 REAR | 90/100-16 | 51M | 45259503 | 1.85 | 23.68 | 4.22 | 20/32 | |||
| GEOMAX MX14 REAR | 110/100-18 | 64M | 45259507 | 2.152.503.00 | 27.38 | 5.00 | 21/32 | |||
| GEOMAX MX14 REAR | 100/90-19 | 57M | 45259504 | 1.852.502.75 | 26.95 | 4.61 | 22/32 | |||
| GEOMAX MX14 REAR | 110/90-19 | 62M | 45259505 | 2.152.503.00 | 27.38 | 4.73 | 23/32 | |||
| GEOMAX MX14 REAR | 120/80-19 | 63M | 45259506 | 2.502.753.59 | 27.34 | 5.08 | 24/32 |
