ADVENTURE TIREGeomax MX33
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America
TIRE OVERVIEW Geomax MX33
Developed with the help of top motocross pros, the MX33 is an MX tire for soft-to-intermediate terrain. Dunlop’s innovative technologies offer superior grip, slide control, bump absorption, and enhanced durability.
Developed with the help of top motocross pros, the MX33 is an MX tire for soft-to-intermediate terrain. Dunlop’s innovative technologies offer superior grip, slide control, bump absorption, and enhanced durability.
Block-In-A-Block
Offers more progressive cornering action and additional slide control.
Soft
Works in soft terrain and loamy soil.
Intermediate
Works in a mix of packed and loose soil.
Off-Road
Provide grip and handling for off-road performance
ADDITIONAL TIRE
FEATURES
- Front tire features Block-In-A-Block technology to aid in linear tracking and improved steering.
- Altered Block-In-A-Block shape on the rear increases surface area of the rear block, while additional tread angles enhance grip, stability, and slide control.
- Front and rear tires include tie bars that connect each knob, improving durability by reducing flex at the base of the knobs.
- Advanced Apex Design improves shock absorption by diffusing shock through a taller, thinner apex inside the sidewall.

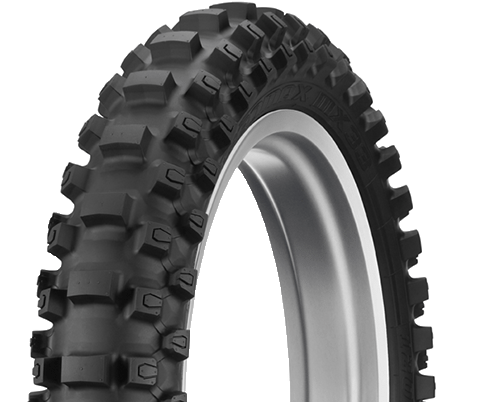

- Multiple Block Distribution provides more blocks in the rear tread pattern compared to the Geomax MX3S, increasing the contact patch for better grip and slide control.
- Carcass Tension Control System allows even flex throughout the tire for increased bump absorption.
VIEWING FOR YOUR BIKE:
Geomax MX33 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| GEOMAX MX33 FRONT | 70/100-21 | 44M | 45234870 | 1.401.50 | 26.69 | 3.03 | 12/32 | |||
| GEOMAX MX33 REAR | 90/100-18 | 54M | 45234195 | 1.85 | 25.75 | 4.13 | 17/32 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| GEOMAX MX33 FRONT | 70/100-21 | 44M | 45234870 | 1.401.50 | 26.69 | 3.03 | 12/32 | |||
| GEOMAX MX33 REAR | 90/100-18 | 54M | 45234195 | 1.85 | 25.75 | 4.13 | 17/32 |
