Geomax MX53

The next generation of ultimate off-road performance.

explore icon
WILL THE Geomax MX53 THESE FIT MY MOTORCYCLE?

TIRE OVERVIEW Geomax MX53

Designed to offer performance in a wide variety of terrains, the Geomax MX53 excels in hard-packed track conditions while also offering greater versatility in intermediate riding conditions.

Geomax MX53 TIRE OVERVIEW
FIND AT A DEALER VIEW SPECS VIEW AVAILABILITY

Designed to offer performance in a wide variety of terrains, the Geomax MX53 excels in hard-packed track conditions while also offering greater versatility in intermediate riding conditions.

FIND AT A DEALER VIEW SPECS VIEW AVAILABILITY
FEATURES BUCKETS icon

Block-In-A-Block

Offers more progressive cornering action and additional slide control.

FEATURES BUCKETS icon

Intermediate

Works in a mix of packed and loose soil.

FEATURES BUCKETS icon

Hard

Works in hard packed conditions.

FEATURES BUCKETS icon

Off-Road

Provide grip and handling for off-road performance

ADDITIONAL TIRE

FEATURES

Geomax MX53

  • The front tire has been redesigned with a taller profile to offer a larger contact patch, providing gentler handling, a higher lean angle, and better maneuverability.
  • MX53 front tire blocks are 1mm higher and have been redistributed to give riders better steering feel and more biting edges.
  • A horseshoe pattern of blocks on the front tire reduces the stiffness in the center of the tire to offer greater ride compliance. The unique pattern of the horseshoe blocks also grabs the dirt to provide better braking grip.
  • Block-In-A-Block technology has been added to the front tire of the MX53 in order to aid in linear tracking and improved steering.
  • The altered Block-In-A-Block shape on the rear tire allows for added flex in the knob to enhance grip while providing stability and slide control.
  • Front and rear tires include tie bars between select knobs to reduce flex at the base of the knobs, improving durability.
  • Dunlop’s Advanced Apex Design improves shock absorption by diffusing shock through a taller, thinner apex inside the sidewall.
  • New compounds on the front and rear tire enhance durability and longevity.

TIRE PHOTOS

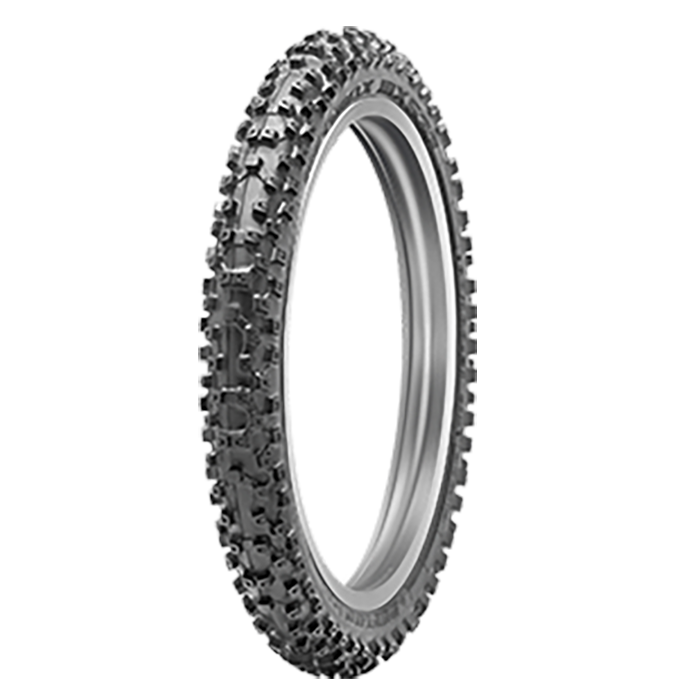

GEOMAX MX53 FRONT

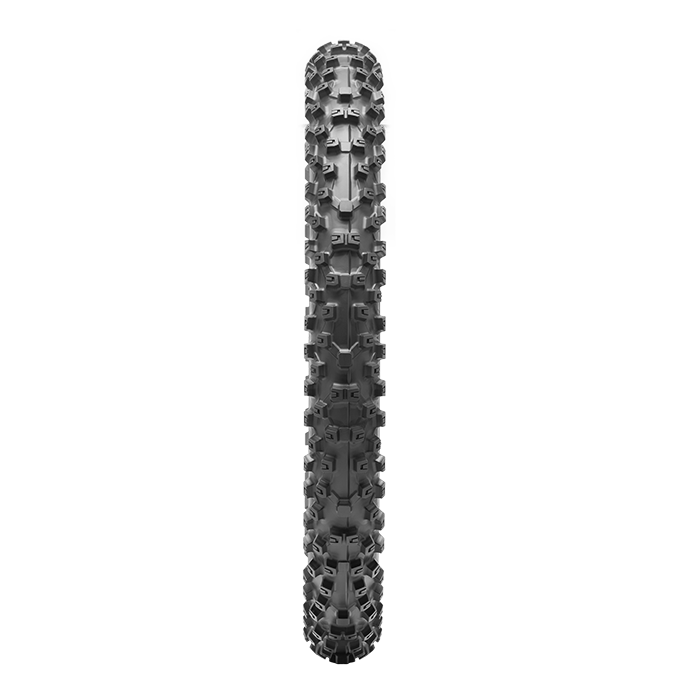

GEOMAX MX53 FRONT TREAD

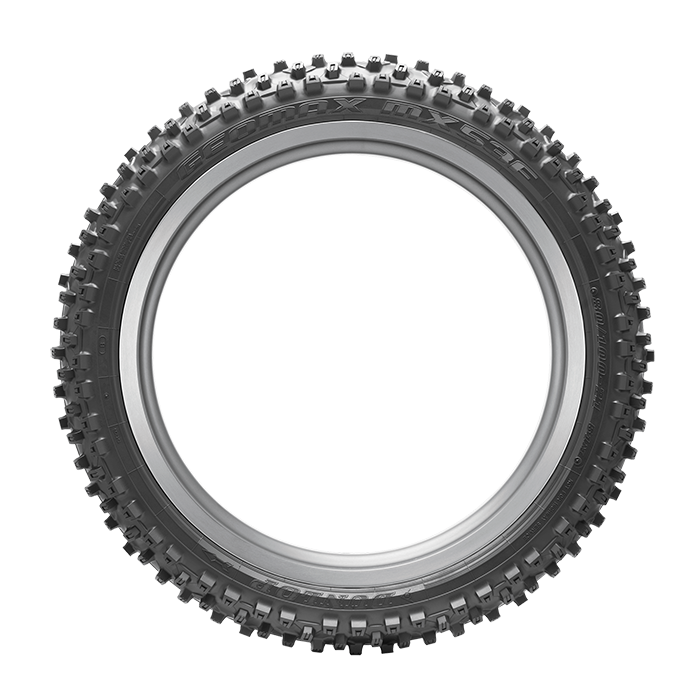

GEOMAX MX53 FRONT FACE

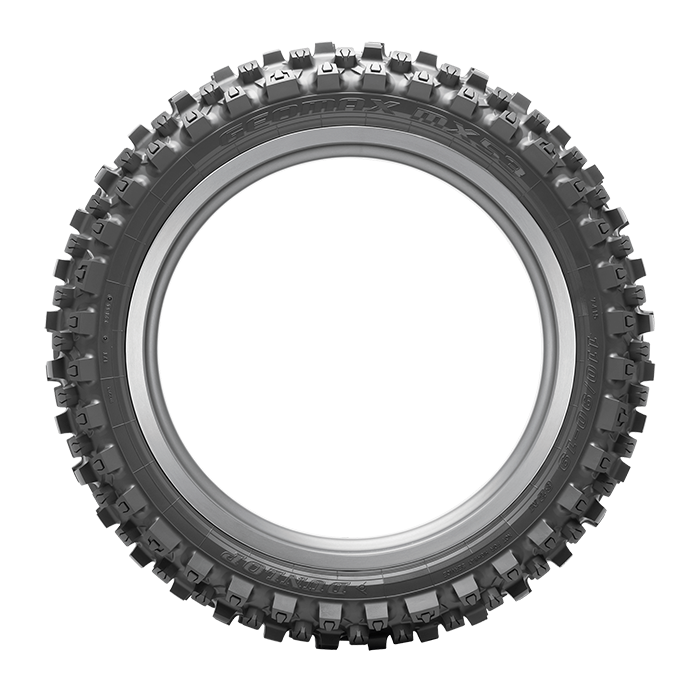

GEOMAX MX53 REAR FACE

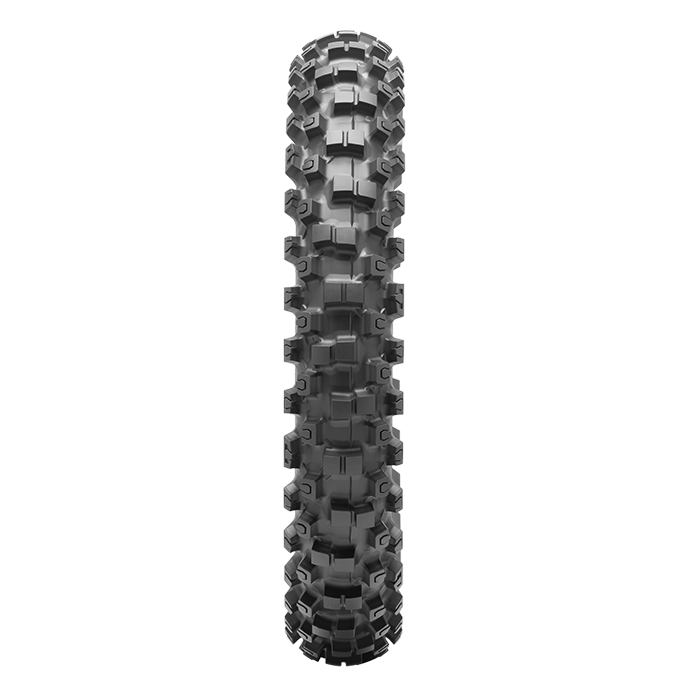

GEOMAX MX53 REAR TREAD
The Geomax MX53 excels in hard-packed track conditions while also offering greater versatility in intermediate riding conditions.
01
BEST FOR RIDERS WHO:

Race Motocross

Developed in conjunction with Pro Motocross racers.

02
BEST FOR RIDERS WHO:

Demand Quality

Every Dunlop tire is hand inspected before it leaves the factory. (100% of tires that leave the factory are quality inspected.)

03
BEST FOR RIDERS WHO:

Ride Off Road

Engineered to provide grip and handling for off-road performance.

Geomax MX53 Spec Chart

Tire Name Size Load/Speed Index Sidewall Part Number Applicable Rims Recommended Rim Overall Diameter Overall Width Full Tread Depth Maximum Load @ PSI MultiTread
MX53 Front 60/100-10 33J 45236325 1.50 15.19 2.63 10/32
MX53 Front 60/100-12 36J 45236955 1.50 17.24 2.67 10/32
MX53 Front 60/100-14 29M 45236531 1.40 19.33 2.83 12/32
MX53 Front 70/100-17 40M 45236661 1.40 23.22 3.34 13/32
MX53 Front 70/100-19 42M 45236512 1.40 25.31 3.26 13/32
MX53 Front 80/100-21 51M 45236987 1.60 27.99 3.50 15/32
MX53 Rear 70/100-10 41J 45236262 1.50 15.66 3.18 13/32
MX53 Rear 80/100-12 41M 45236400 1.60 18.54 3.66 16/32
MX53 Rear 90/100-14 49M 45236470 1.60 21.41 4.05 18/32
MX53 Rear 90/100-16 51M 45236423 1.60 23.97 4.33 18/32
MX53 Rear 100/100-18 59M 45236865 1.85 26.25 4.56 20/32
MX53 Rear 110/100-18 64M 45236568 2.15 27.28 4.96 21/32
MX53 Rear 120/90-18 65M 45236545 2.15 26.92 5.15 21/32
MX53 Rear 100/90-19 57M 45236253 1.85 26.85 4.60 20/32
MX53 Rear 110/90-19 62M 45236424 2.15 27.51 4.92 20/32
MX53 Rear 120/80-19 63M 45236685 2.15 27.16 5.23 20/32
MX53 Rear 120/90-19 66M 45236791 2.15 27.79 5.27 20/32
Tire Name Size Load/Speed Index Sidewall Part Number Applicable Rims Recommended Rim Overall Diameter Overall Width Full Tread Depth Maximum Load @ PSI Multi-Tread MultiTread
MX53 Front 60/100-10 33J 45236325 1.50 15.19 2.63 10/32
MX53 Front 60/100-12 36J 45236955 1.50 17.24 2.67 10/32
MX53 Front 60/100-14 29M 45236531 1.40 19.33 2.83 12/32
MX53 Front 70/100-17 40M 45236661 1.40 23.22 3.34 13/32
MX53 Front 70/100-19 42M 45236512 1.40 25.31 3.26 13/32
MX53 Front 80/100-21 51M 45236987 1.60 27.99 3.50 15/32
MX53 Rear 70/100-10 41J 45236262 1.50 15.66 3.18 13/32
MX53 Rear 80/100-12 41M 45236400 1.60 18.54 3.66 16/32
MX53 Rear 90/100-14 49M 45236470 1.60 21.41 4.05 18/32
MX53 Rear 90/100-16 51M 45236423 1.60 23.97 4.33 18/32
MX53 Rear 100/100-18 59M 45236865 1.85 26.25 4.56 20/32
MX53 Rear 110/100-18 64M 45236568 2.15 27.28 4.96 21/32
MX53 Rear 120/90-18 65M 45236545 2.15 26.92 5.15 21/32
MX53 Rear 100/90-19 57M 45236253 1.85 26.85 4.60 20/32
MX53 Rear 110/90-19 62M 45236424 2.15 27.51 4.92 20/32
MX53 Rear 120/80-19 63M 45236685 2.15 27.16 5.23 20/32
MX53 Rear 120/90-19 66M 45236791 2.15 27.79 5.27 20/32
