ADVENTURE TIREGeomax Trial TL01
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America
TIRE OVERVIEW Geomax Trial TL01
A new block design and high adhesion compound together to form a class-leading trials tire.
A new block design and high adhesion compound together to form a class-leading trials tire.
Off-Road
Provide grip and handling for off-road performance
ADDITIONAL TIRE
FEATURES
- New block design that retrains blocks/knobs from flexing and losing their shape to improve performance in all conditions
- Maximum traction, stability, and controllability in various ground conditions
- Specialized Groove Channel Technology (SGCT) in the shoulder blocks allow for 3 times stronger blocks than the previous D803GP
- High Adhesion Compound (H-AC) Oil rich compound increases flexibility with provides increased grip
- Special carbon helps convert impact energy to heat which provides enhanced grip on slick surfaces
TIRE HIGHLIGHTS

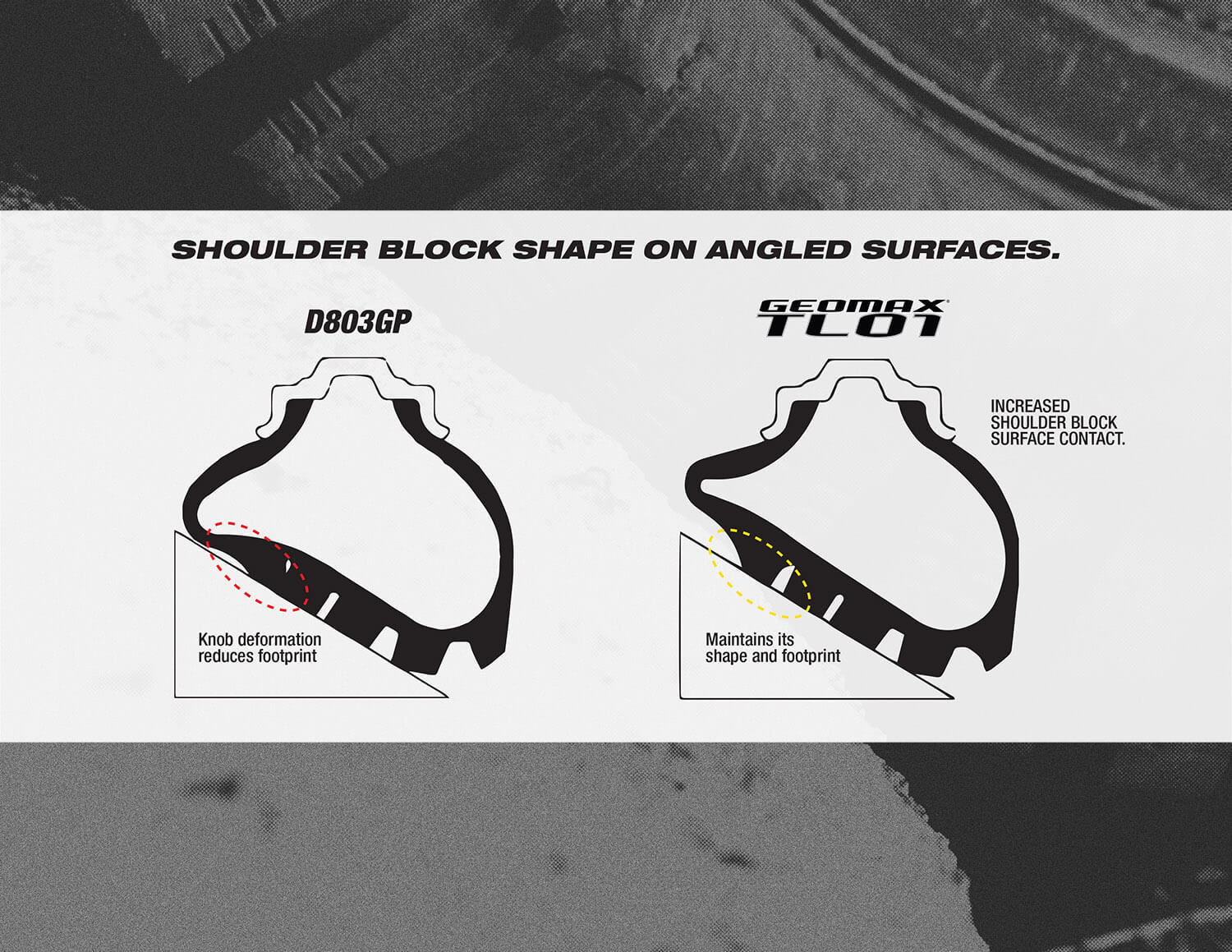

Specialized Groove Channel Technology (SGCT)
The shoulder blocks maintain their shape which increases the contact patch when pressed against angled surfaces.

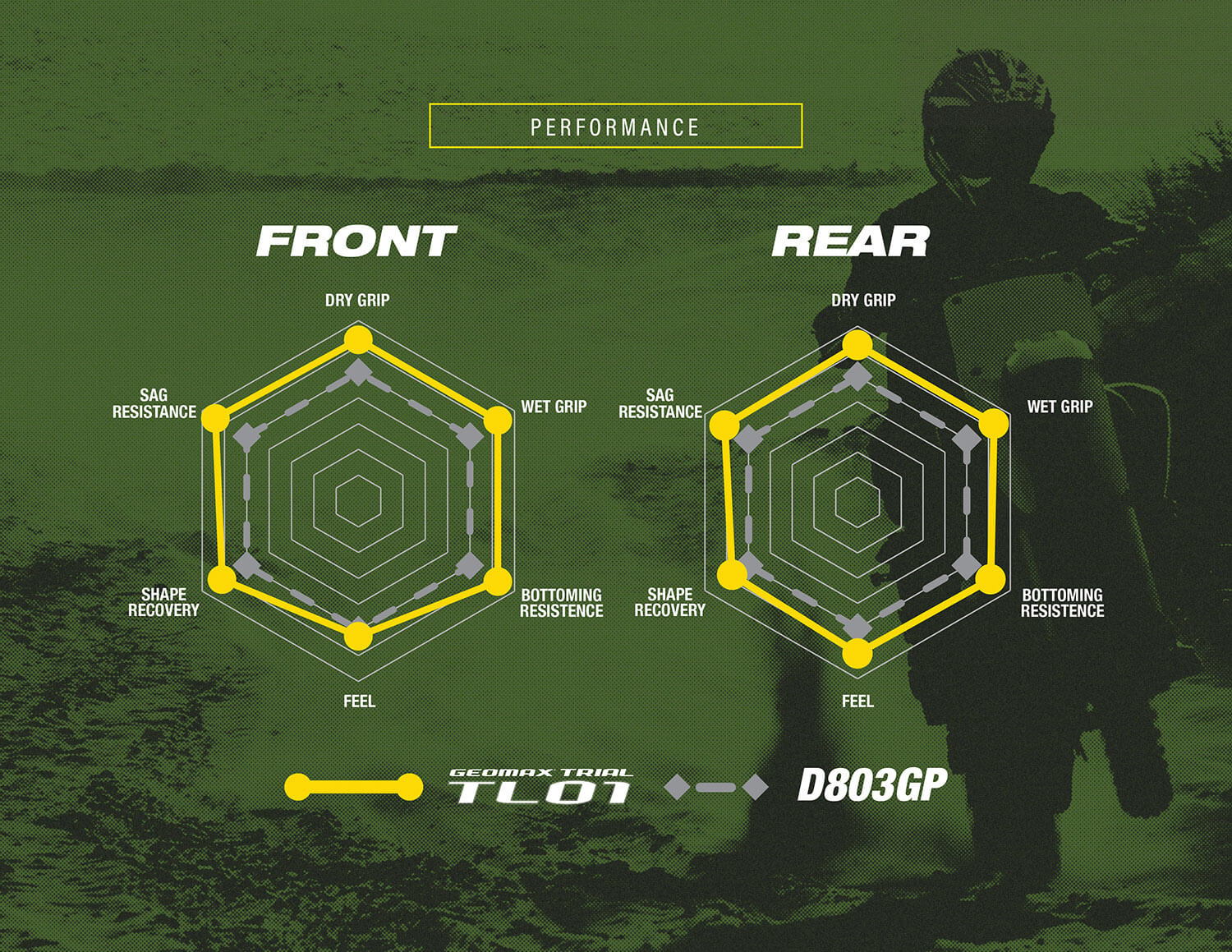

Performance
Both front and rear tires of the TL01 have been greatly improved compared to the D803GP.
VIEWING FOR YOUR BIKE:
Geomax Trial TL01 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| Trial TL01 FRONT | 80/100-21 | 51M | 45262500 | 1.601.852.15 | 27.68 | 3.03 | 9/32 | |||
| TRIAL TL01 REAR | 120/100R18 | 68M | 45262501 | 2.153.50 | 27.48 | 4.29 | 15/32 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| Trial TL01 FRONT | 80/100-21 | 51M | 45262500 | 1.601.852.15 | 27.68 | 3.03 | 9/32 | |||
| TRIAL TL01 REAR | 120/100R18 | 68M | 45262501 | 2.153.50 | 27.48 | 4.29 | 15/32 |
