ADVENTURE TIREGT503
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

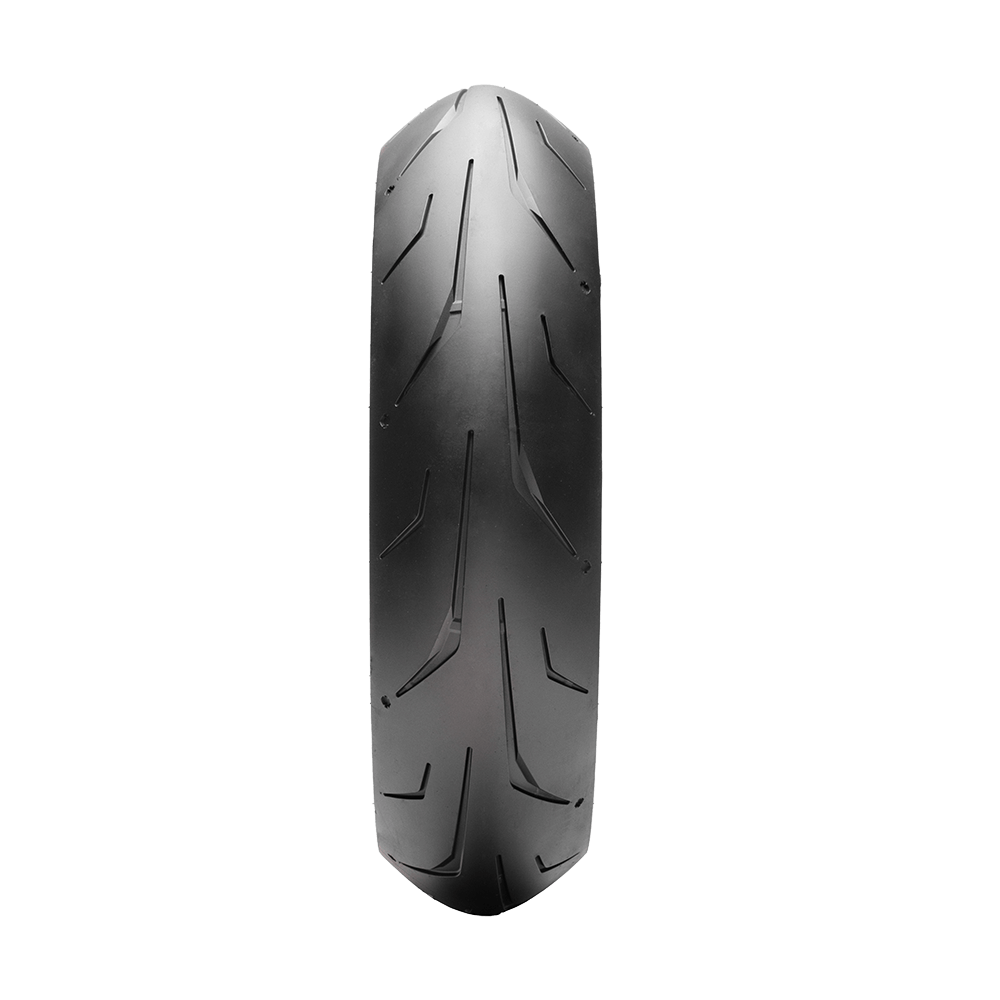

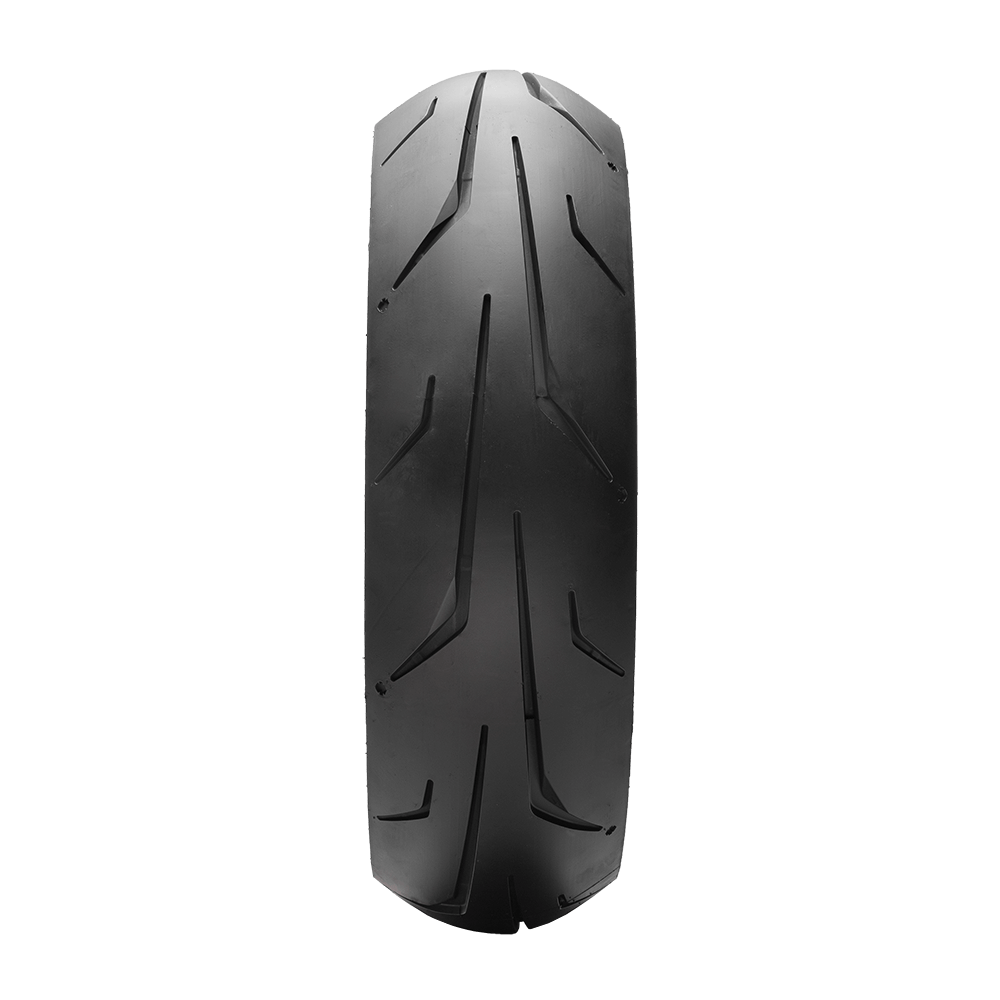

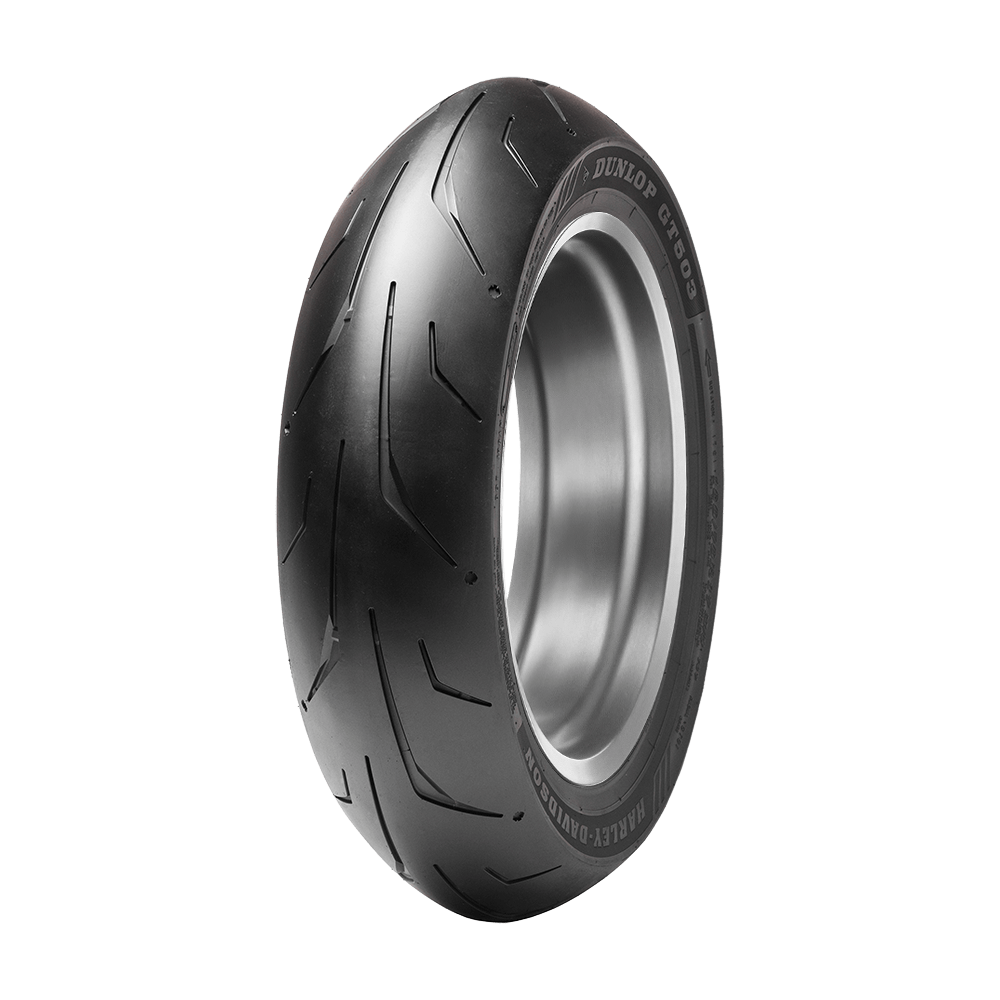

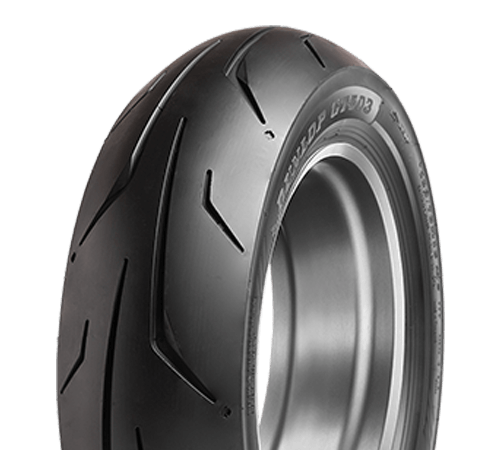

TIRE OVERVIEW GT503
The GT503 was designed specifically for the aggressive look and high performance of H-D’s new motorcycle. The GT503 combines construction, compound, and tread design to provide the ultimate in tire performance for the new H-D Sportster S.
The GT503 was designed specifically for the aggressive look and high performance of H-D’s new motorcycle. The GT503 combines construction, compound, and tread design to provide the ultimate in tire performance for the new H-D Sportster S.
OE
Meets the rigid demands of the bike manufacturer.
V-Twin
Meant for American-made iron.
Co-Branded
Dunlop is the original brand of tire certified to say Harley-Davidson right on the sidewall.
ADDITIONAL TIRE
FEATURES
- Aggressive tread pattern maximizes the land-to-sea ratio to offer superior dry-grip while also utilizing tread grooves that are long in length to enhance wet-weather performance.
- Radial construction (front and rear tires) featuring Steel Jointless Belt (JLB) technology delivers more responsive and consistent handling while also providing a more compliant ride.
- New compound has been formulated to provide excellent grip and mileage.

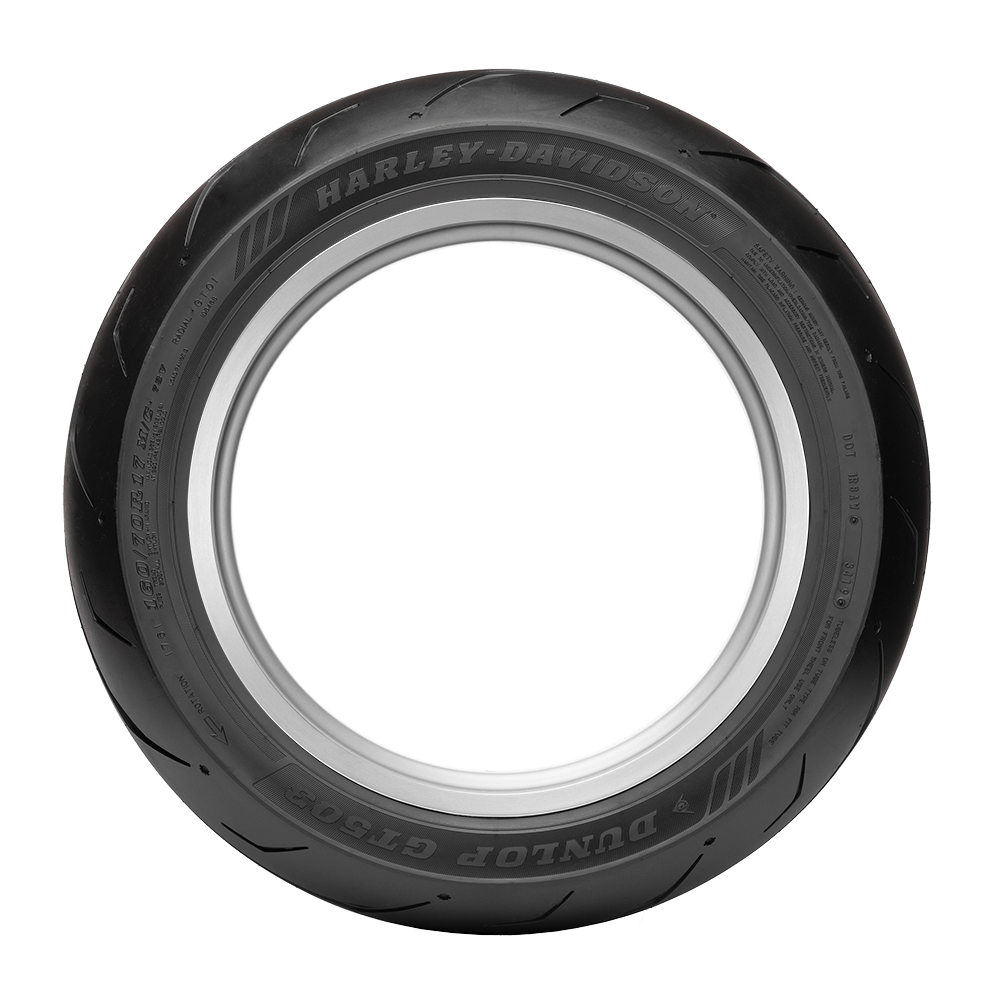

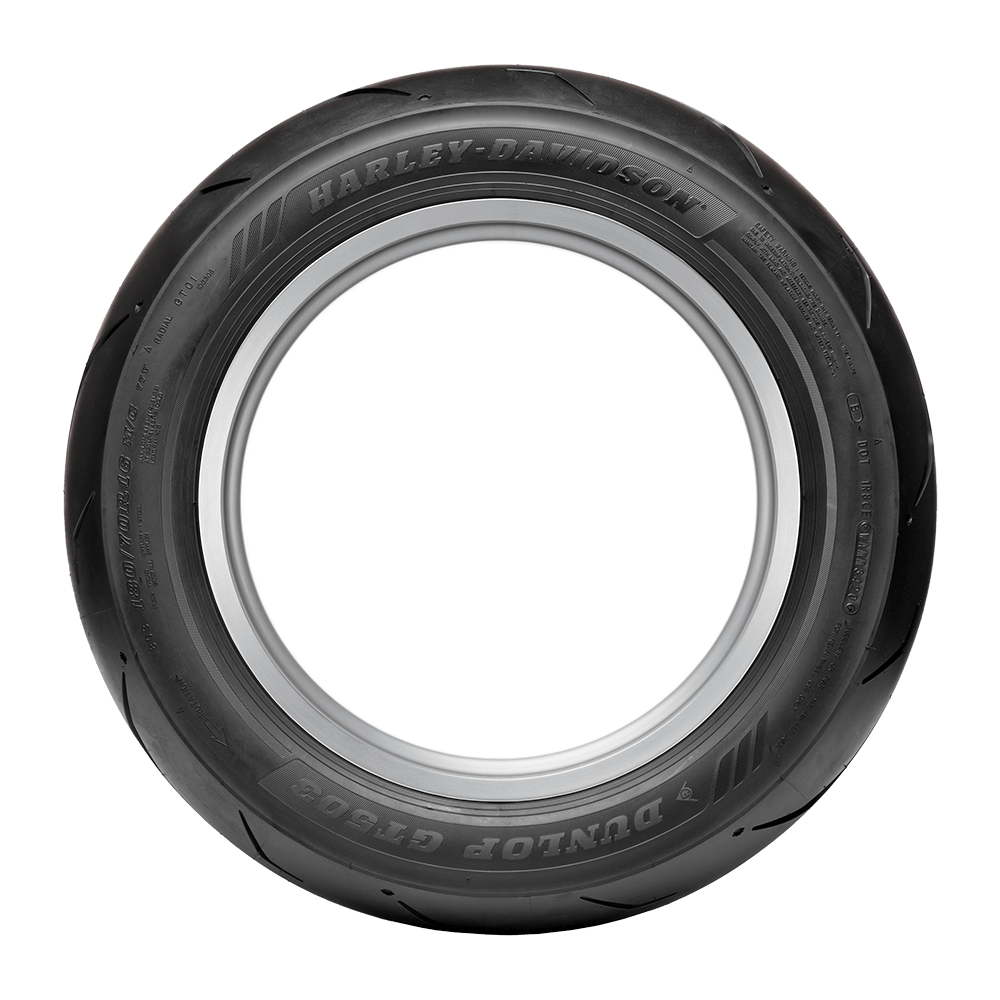

- Sidewall design proudly features the Harley-Davidson name and updated styling.
- New “wide” front tire size (160/70R17) provides a custom fat tire look, while still offering light and responsive handling.
- Available exclusively through Harley-Davidson dealers.
VIEWING FOR YOUR BIKE:
GT503 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| GT503 FRONT | 160/70R17 | 73V | BW | 45244956 | 4.505.00 | 25.67 | 6.22 | 5/32 | 805 @ 42 | |
| GT503 REAR | 180/70R16 | 77V | BW | 45244903 | 5.005.50 | 25.91 | 7.24 | 9/32 | 908 @ 42 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| GT503 FRONT | 160/70R17 | 73V | BW | 45244956 | 4.505.00 | 25.67 | 6.22 | 5/32 | 805 @ 42 | |
| GT503 REAR | 180/70R16 | 77V | BW | 45244903 | 5.005.50 | 25.91 | 7.24 | 9/32 | 908 @ 42 |
