ADVENTURE TIRETrailmax Mission
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

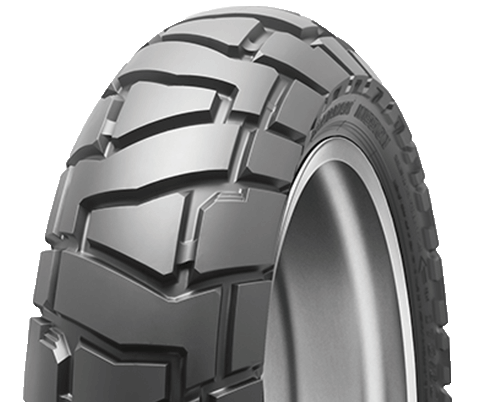

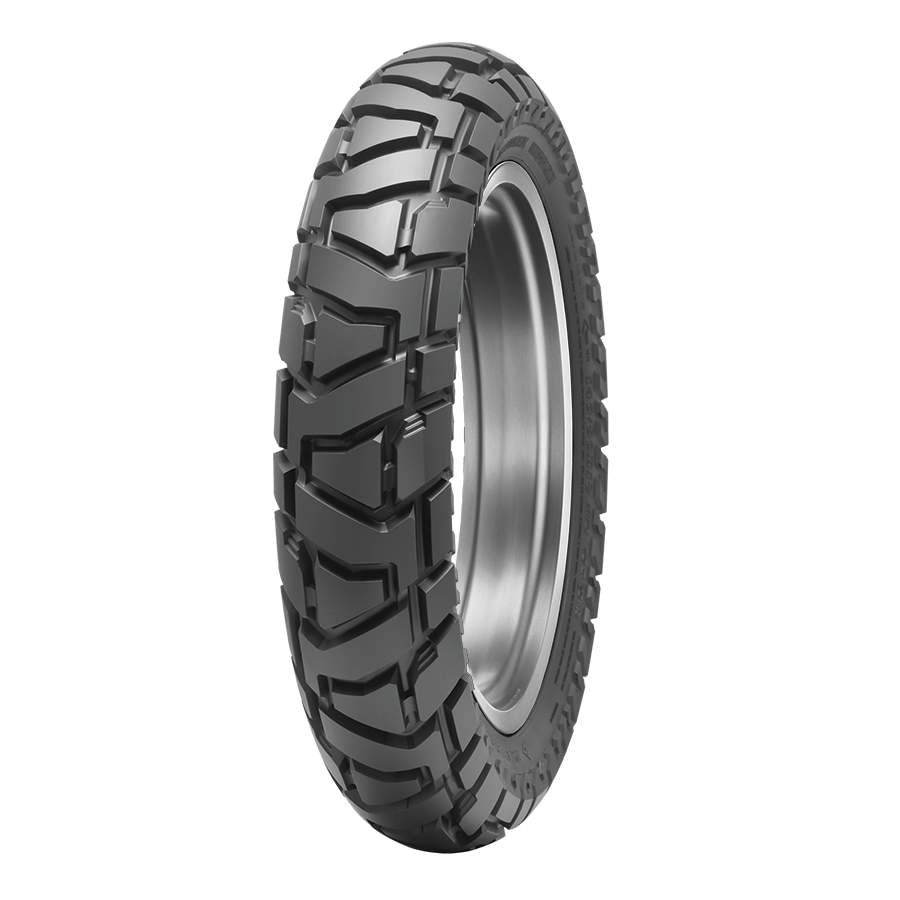

TIRE OVERVIEW Trailmax Mission
A true adventure tire offering premium performance in a wide range of terrain. After more than two years in development, the Trailmax Mission delivers knobby-like performance off-road, has impressive grip on the street, plus great ride quality, and stability everywhere it goes.
A true adventure tire offering premium performance in a wide range of terrain. After more than two years in development, the Trailmax Mission delivers knobby-like performance off-road, has impressive grip on the street, plus great ride quality, and stability everywhere it goes.
ADDITIONAL TIRE
FEATURES
- 60/40 Adventure tire.
- An aggressive tread pattern yields traction in hard terrain.
- Built-in rugged tread blocks feature Staggered Step design, a step-down feature to provide rigidity in the contact patch to enhance stability and handling.
- Wrap-around lugs on the tire’s edge help protect the tire from sharp rocks and provide additional off-road traction.
- New compounds deliver the perfect balance between road and off-road performance and deliver class-leading mileage performance.
- Deep grooves excel in wet weather conditions and offer additional biting edges for off-road performance.
- The Trailmax Mission tires are tubeless, however, if mounting on rims that require a tube (i.e., spokes) the appropriate tube may be fitted.

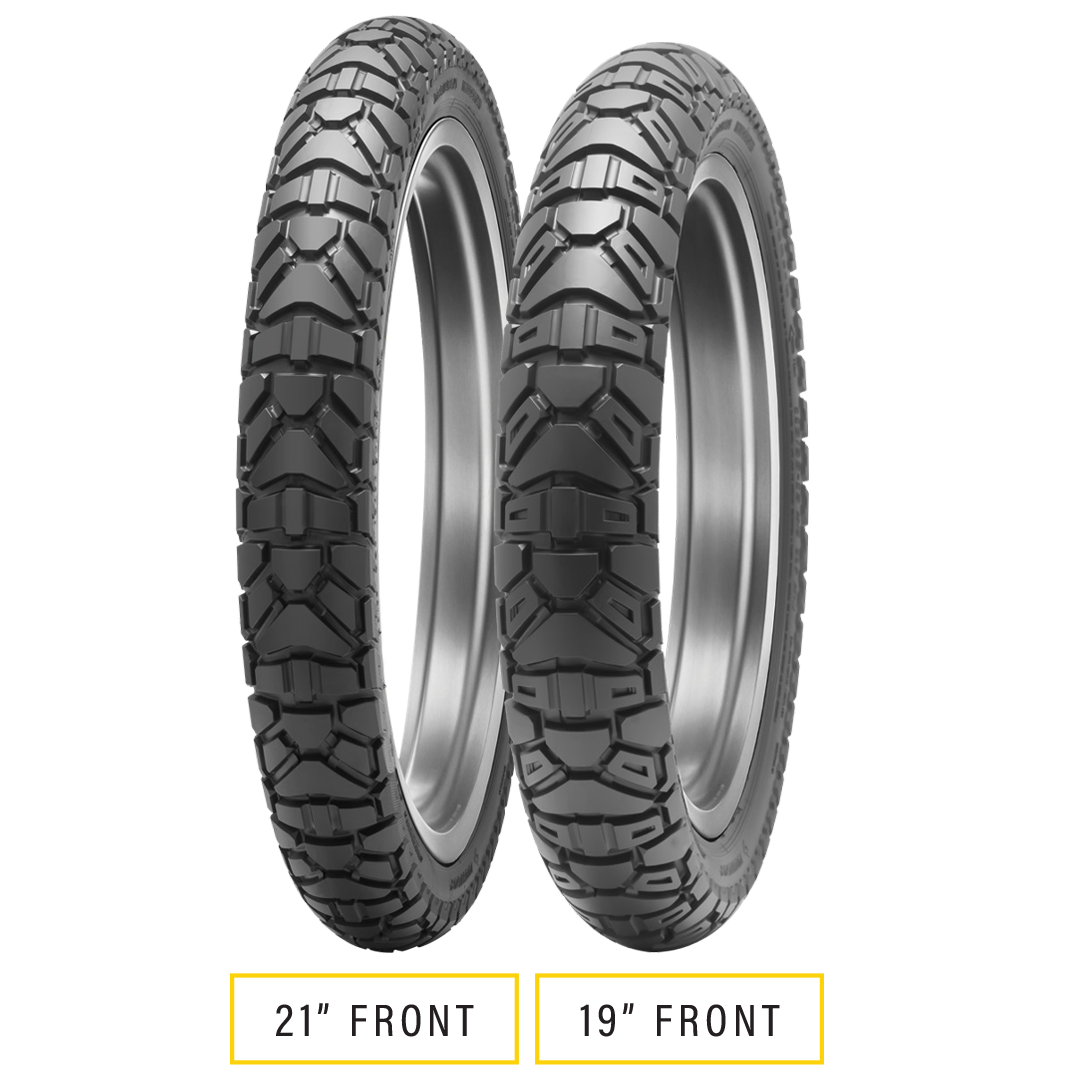

- The 19-inch front sizes feature hollowed out knobs to create additional biting edges and knob flex for greater off-road traction. The 21-inch front size achieved Dunlop’s performance objectives without this additional detail.
- Fits popular large and small displacement machines including the Honda Africa Twin, Ducati DesertX, Suzuki V-Strom, BMW R1200/R1250/R1300GS models, KTM 790/1090/1190/1290 Adventure, Yamaha Super Tenere, Triumph Tiger 800/1200 models, and many more.
VIEWING FOR YOUR BIKE:
Trailmax Mission SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| TRAILMAX MISSION FRONT | 90/90-21 | 54T | BLT | 45235482 | 2.15 | 27.80 | 3.60 | 9/32 | 467 @ 41 | |
| TRAILMAX MISSION FRONT | 100/90-19 | 57T | BLT | 45235081 | 2.50 | 26.20 | 4.00 | 10/32 | 507 @ 41 | |
| TRAILMAX MISSION FRONT | 110/80-19 | 59T | BLT | 45235418 | 2.50 | 26.10 | 4.30 | 10/32 | 536 @ 41 | |
| TRAILMAX MISSION FRONT | 120/70B19 | 60T | BLT | 45235870 | 3.50 | 25.90 | 4.80 | 10/32 | 551 @ 41 | |
| TRAILMAX MISSION REAR | 120/90-17 | 64T | BLT | 45235401 | 2.75 | 25.70 | 4.90 | 14/32 | 617 @ 41 | |
| TRAILMAX MISSION REAR | 130/80B17 | 65T | BLT | 45235012 | 3.00 | 25.30 | 5.20 | 14.32 | 639 @ 41 | |
| TRAILMAX MISSION REAR | 150/70B17 | 69T | BLT | 45235464 | 4.25 | 25.30 | 6.00 | 14/32 | 716 @ 41 | |
| TRAILMAX MISSION REAR | 170/60B17 | 72T | BLT | 45235337 | 4.50 | 25.20 | 6.50 | 13/32 | 783 @ 41 | |
| TRAILMAX MISSION REAR | 140/80B18 | 70T | BLT | 45235158 | 3.50 | 27.00 | 5.70 | 15/32 | 739 @ 41 | |
| TRAILMAX MISSION REAR | 150/70B18 | 70T | BLT | 45235691 | 3.504.254.50 | 26.20 | 5.90 | 14/32 | 739@41 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| TRAILMAX MISSION FRONT | 90/90-21 | 54T | BLT | 45235482 | 2.15 | 27.80 | 3.60 | 9/32 | 467 @ 41 | |
| TRAILMAX MISSION FRONT | 100/90-19 | 57T | BLT | 45235081 | 2.50 | 26.20 | 4.00 | 10/32 | 507 @ 41 | |
| TRAILMAX MISSION FRONT | 110/80-19 | 59T | BLT | 45235418 | 2.50 | 26.10 | 4.30 | 10/32 | 536 @ 41 | |
| TRAILMAX MISSION FRONT | 120/70B19 | 60T | BLT | 45235870 | 3.50 | 25.90 | 4.80 | 10/32 | 551 @ 41 | |
| TRAILMAX MISSION REAR | 120/90-17 | 64T | BLT | 45235401 | 2.75 | 25.70 | 4.90 | 14/32 | 617 @ 41 | |
| TRAILMAX MISSION REAR | 130/80B17 | 65T | BLT | 45235012 | 3.00 | 25.30 | 5.20 | 14.32 | 639 @ 41 | |
| TRAILMAX MISSION REAR | 150/70B17 | 69T | BLT | 45235464 | 4.25 | 25.30 | 6.00 | 14/32 | 716 @ 41 | |
| TRAILMAX MISSION REAR | 170/60B17 | 72T | BLT | 45235337 | 4.50 | 25.20 | 6.50 | 13/32 | 783 @ 41 | |
| TRAILMAX MISSION REAR | 140/80B18 | 70T | BLT | 45235158 | 3.50 | 27.00 | 5.70 | 15/32 | 739 @ 41 | |
| TRAILMAX MISSION REAR | 150/70B18 | 70T | BLT | 45235691 | 3.504.254.50 | 26.20 | 5.90 | 14/32 | 739@41 |
