ADVENTURE TIRESportmax Q5
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America
TIRE OVERVIEW Sportmax Q5
The Dunlop Sportmax Q5 is designed to increase the depth of the Sportmax family lineup to accommodate track-day-level riding like no other Dunlop DOT street tire has before, with even greater overall performance and grip than the Q4.
The Dunlop Sportmax Q5 is designed to increase the depth of the Sportmax family lineup to accommodate track-day-level riding like no other Dunlop DOT street tire has before, with even greater overall performance and grip than the Q4.
IRP
Intuitive Response Profile – It’s like your tire knows what you’re thinking.
JOINTLESS TREAD
Optimizes the ideal stability, flex, and grip where it’s needed most across the tire’s tread profile.
ADDITIONAL TIRE
FEATURES
- Made in Dunlop’s Buffalo, New York, plant on the same proprietary equipment as Dunlop racing products.
- Sharply defined new tread pattern with lower groove density puts more rubber on the ground at all lean angles.
- New taller profile with improved corner entry and high-speed stability at full lean.
- Both front and rear tires utilize Dunlop’s proprietary Racing Type Fine Carbon Technology in the tread compound.
- Performs better in the wet, warms up quicker, does not require tire warmers, and is engineered to run on the track at close to street pressures.
- Dunlop has also expanded the size range of the Q5 to include five additional sizes for increased bike fitments: 110/70ZR17, 140/70ZR17, 150/60ZR17, 160/60ZR17, and 200/60ZR17.
- The Sportmax Q5 is DOT-approved for street-legal use.
TIRE HIGHLIGHTS

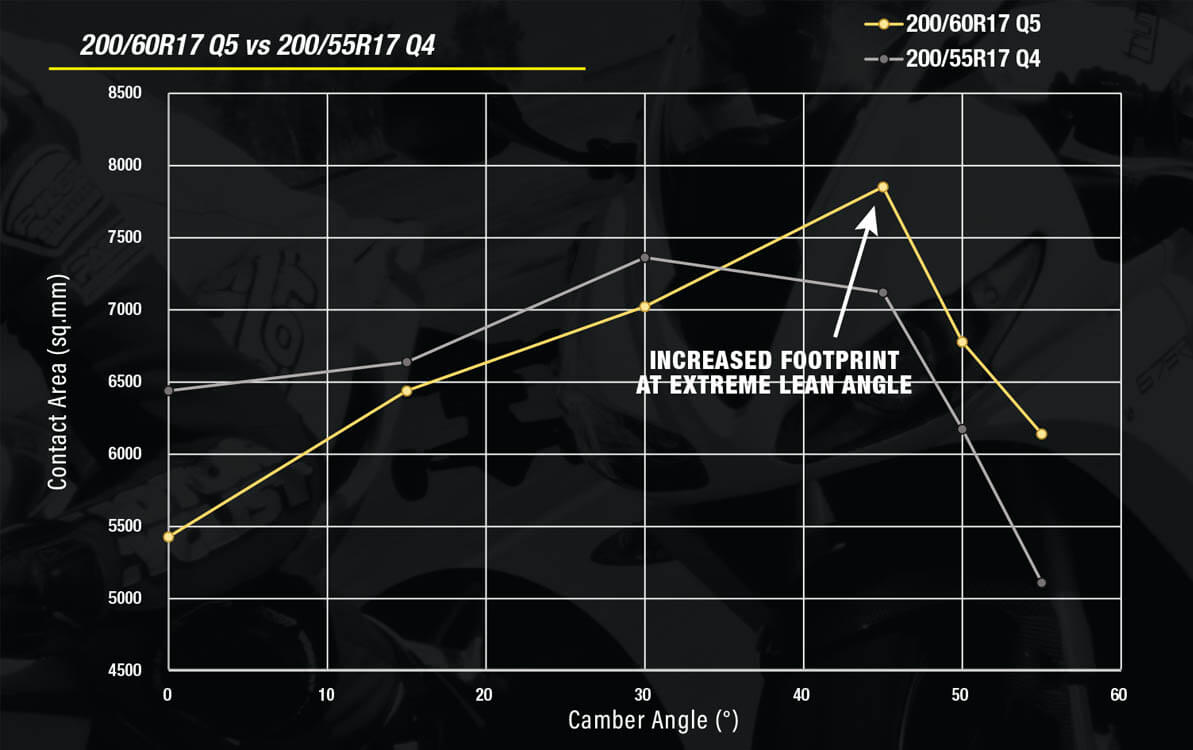

INCREASED CONTACT AREA
Increased footprint at more extreme lean angles gives you more tire on the road for more grip.
MORE FITMENTS
Dunlop has also expanded the size range of the Q5 to include five additional sizes for increased bike fitments: 110/70ZR17, 140/70ZR17, 150/60ZR17, 160/60ZR17, and 200/60ZR17.
VIEWING FOR YOUR BIKE:
Sportmax Q5 SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| SPORTMAX Q5 FRONT | 110/70ZR17 | (54W) | 45247180 | 3.003.50 | 23.40 | 4.30 | 4/32 | 467 @ 42 | ||
| SPORTMAX Q5 FRONT | 120/70ZR17 | (58W) | 45247181 | 3.503.75 | 23.90 | 4.70 | 4/32 | 520 @ 42 | ||
| SPORTMAX Q5 REAR | 140/70ZR17 | 66W | 45247182 | 3.754.50 | 24.72 | 5.35 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5 REAR | 150/60ZR17 | (66W) | 45247183 | 4.004.254.50 | 24.33 | 5.71 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5 REAR | 160/60ZR17 | (69W) | 45247184 | 4.505.00 | 25.00 | 6.30 | 7/32 | 716 @ 42 | ||
| SPORTMAX Q5 REAR | 180/55ZR17 | (73W) | 45247185 | 5.506.00 | 25.10 | 7.10 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5 REAR | 180/60ZR17 | (75W) | 45247186 | 5.005.50 | 25.90 | 7.20 | 7/32 | 853 @ 42 | ||
| SPORTMAX Q5 REAR | 190/50ZR17 | (73W) | 45247187 | 5.506.006.25 | 25.00 | 7.50 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5 REAR | 190/55ZR17 | (75W) | 45247188 | 5.506.006.25 | 25.70 | 7.60 | 7/32 | 853 @ 42 | ||
| SPORTMAX Q5 REAR | 200/55ZR17 | (78W) | 45247189 | 6.006.256.50 | 25.90 | 7.90 | 7/32 | 937 @ 42 | ||
| Sportmax Q5 Rear | 200/60ZR17 | (80W) | 45247190 | 5.506.006.25 | 26.46 | 7.60 | 7/32 | 992 @ 42 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPORTMAX Q5 FRONT | 110/70ZR17 | (54W) | 45247180 | 3.003.50 | 23.40 | 4.30 | 4/32 | 467 @ 42 | ||
| SPORTMAX Q5 FRONT | 120/70ZR17 | (58W) | 45247181 | 3.503.75 | 23.90 | 4.70 | 4/32 | 520 @ 42 | ||
| SPORTMAX Q5 REAR | 140/70ZR17 | 66W | 45247182 | 3.754.50 | 24.72 | 5.35 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5 REAR | 150/60ZR17 | (66W) | 45247183 | 4.004.254.50 | 24.33 | 5.71 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5 REAR | 160/60ZR17 | (69W) | 45247184 | 4.505.00 | 25.00 | 6.30 | 7/32 | 716 @ 42 | ||
| SPORTMAX Q5 REAR | 180/55ZR17 | (73W) | 45247185 | 5.506.00 | 25.10 | 7.10 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5 REAR | 180/60ZR17 | (75W) | 45247186 | 5.005.50 | 25.90 | 7.20 | 7/32 | 853 @ 42 | ||
| SPORTMAX Q5 REAR | 190/50ZR17 | (73W) | 45247187 | 5.506.006.25 | 25.00 | 7.50 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5 REAR | 190/55ZR17 | (75W) | 45247188 | 5.506.006.25 | 25.70 | 7.60 | 7/32 | 853 @ 42 | ||
| SPORTMAX Q5 REAR | 200/55ZR17 | (78W) | 45247189 | 6.006.256.50 | 25.90 | 7.90 | 7/32 | 937 @ 42 | ||
| Sportmax Q5 Rear | 200/60ZR17 | (80W) | 45247190 | 5.506.006.25 | 26.46 | 7.60 | 7/32 | 992 @ 42 |
