ADVENTURE TIRESportmax Q5A
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

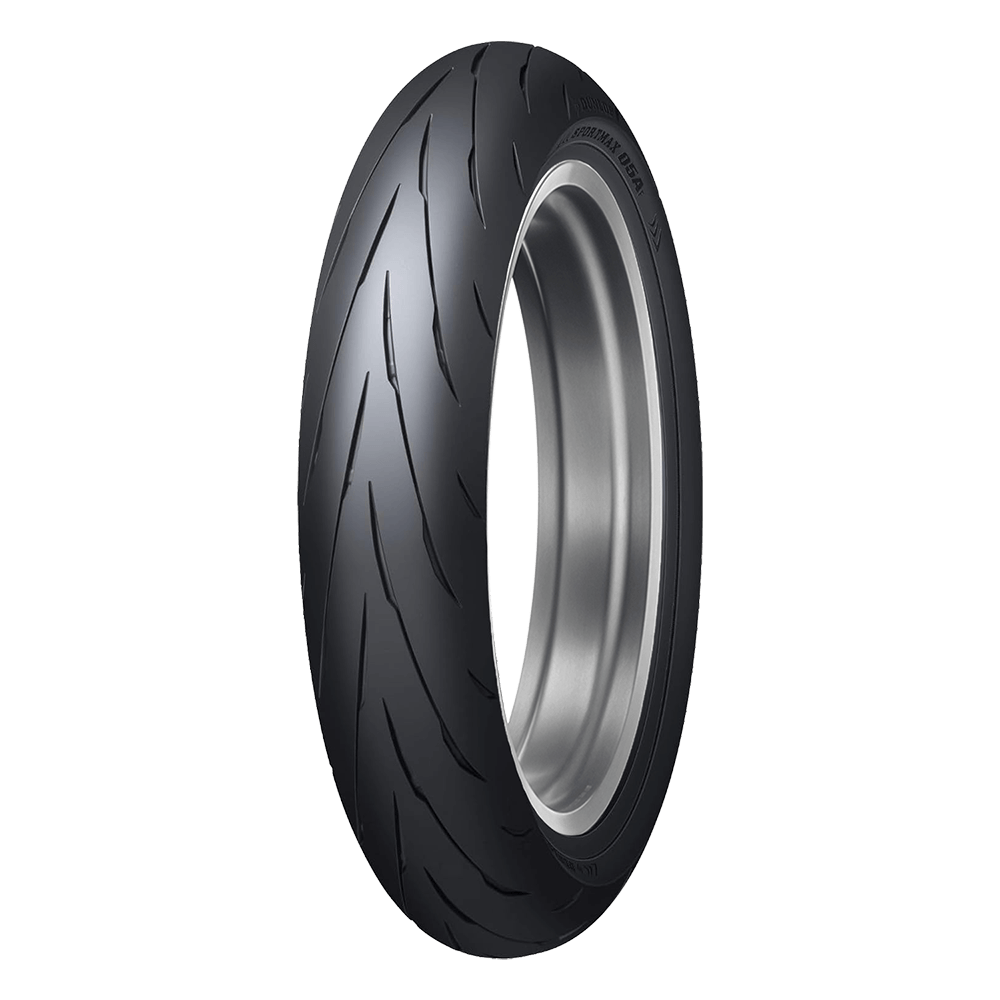

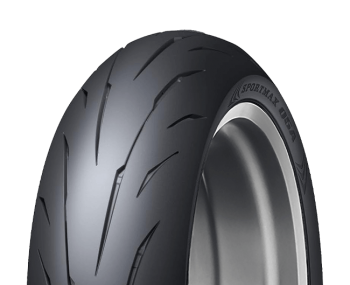

TIRE OVERVIEW Sportmax Q5A
Q5A for a wide range of riding conditions from winding roads to daily use.
Q5A for a wide range of riding conditions from winding roads to daily use.
Multi-Tread
Two compounds in the same tread give riders great mileage without sacrificing handling.
Handling
Because bikes are meant to lean over.
JOINTLESS TREAD
Optimizes the ideal stability, flex, and grip where it’s needed most across the tire’s tread profile.
ADDITIONAL TIRE
FEATURES
- *Multi-Tread™ technology in both the front and rear tires utilize a long-wearing center compound flanked by lateral-grip compounds, giving riders outstanding mileage without sacrificing handling or grip. (*130/70ZR16 size does not incorporate Multi-Tread or JLB.).
- Carbon R compound delivering excellent dry grip for spiriting riding.
- CTT for improved balance and linearity between the front and rear tires during transitions.
- Aramid JLB front for a nimble and smooth handling for following the desired line.
- Hi Silica X providing enhanced wet performance to maintain confidence in varying weather conditions.
- UFS JLB construction in rear to enhance comfort for everyday riding.
- An aggressive, new tread pattern optimized for sport riding achieves more consistent performance as the tire wears and provides exceptional balance between dry and wet grip.
- Impact Parry Technology (IPT) reduces lateral movement while improving longitudinal deflection for a tire that has better bump absorption and stability at full lean.
TIRE HIGHLIGHTS

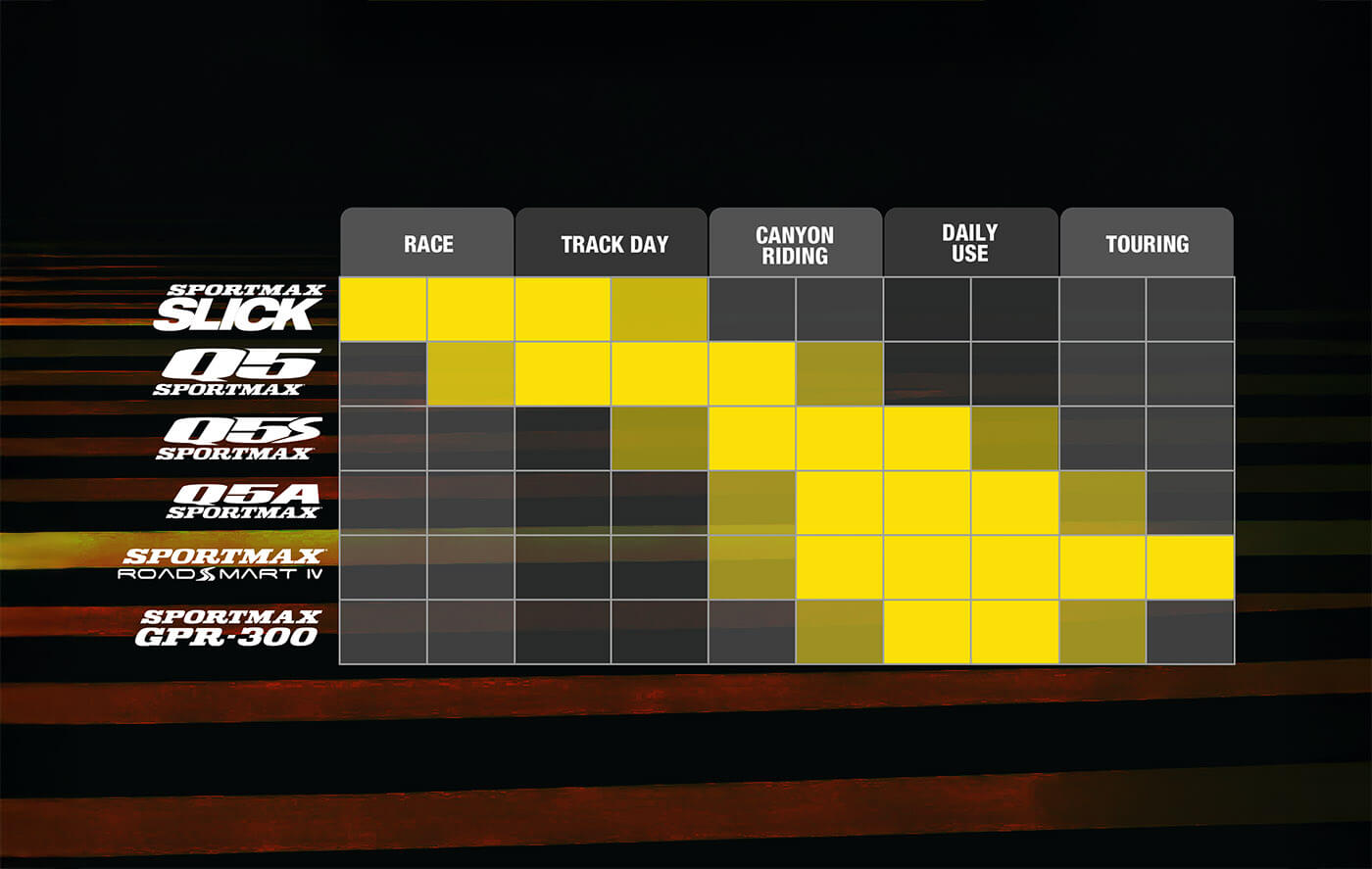

SPORTMAX Q5A USAGE GUIDE
Where the Sportmax Q5A slots in among our Sportmax lineup.
VIEWING FOR YOUR BIKE:
Sportmax Q5A SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| SPORTMAX Q5A FRONT | 130/70ZR16 | 61W | BW | 45274210 | 3.504.00 | 23.15 | 5.16 | 5/32 | 639 @ 42 | |
| SPORTMAX Q5A FRONT | 110/70R17 | 54H | BW | 45274200 | 3.003.50 | 23.23 | 4.33 | 5/32 | 467 @ 41 | |
| SPORTMAX Q5A FRONT | 120/60ZR17 | 55H | BW | 45274201 | 3.503.75 | 22.87 | 4.65 | 5/32 | 481 @ 42 | |
| SPORTMAX Q5A FRONT | 120/70R17 | 58W | BW | 45274202 | 3.503.75 | 23.62 | 4.65 | 5/32 | 520 @ 42 | |
| SPORTMAX Q5A REAR | 140/70R17 | 66H | BW | 45274203 | 3.754.50 | 24.80 | 5.59 | 7/32 | 661 @ 41 | |
| SPORTMAX Q5A REAR | 150/60R17 | 66H | BW | 45274204 | 4.004.254.50 | 24.33 | 6.02 | 7/32 | 661 @ 41 | |
| SPORTMAX Q5A REAR | 160/60ZR17 | 69W | BW | 45274205 | 4.505.00 | 24.80 | 6.46 | 7/32 | 716 @ 42 | |
| SPORTMAX Q5A REAR | 180/55ZR17 | 73W | BW | 45274206 | 5.506.00 | 24.84 | 7.24 | 7/32 | 805 @ 42 | |
| SPORTMAX Q5A REAR | 190/50ZR17 | 73W | BW | 45274207 | 5.506.006.25 | 24.69 | 7.56 | 7/32 | 805 @ 42 | |
| SPORTMAX Q5A REAR | 190/55ZR17 | 75W | BW | 45274208 | 5.506.006.25 | 25.35 | 7.60 | 7/32 | 853 @ 42 | |
| SPORTMAX Q5A REAR | 200/55ZR17 | 78W | BW | 45274209 | 6.006.256.50 | 25.79 | 7.87 | 7/32 | 937 @ 42 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPORTMAX Q5A FRONT | 130/70ZR16 | 61W | BW | 45274210 | 3.504.00 | 23.15 | 5.16 | 5/32 | 639 @ 42 | |
| SPORTMAX Q5A FRONT | 110/70R17 | 54H | BW | 45274200 | 3.003.50 | 23.23 | 4.33 | 5/32 | 467 @ 41 | |
| SPORTMAX Q5A FRONT | 120/60ZR17 | 55H | BW | 45274201 | 3.503.75 | 22.87 | 4.65 | 5/32 | 481 @ 42 | |
| SPORTMAX Q5A FRONT | 120/70R17 | 58W | BW | 45274202 | 3.503.75 | 23.62 | 4.65 | 5/32 | 520 @ 42 | |
| SPORTMAX Q5A REAR | 140/70R17 | 66H | BW | 45274203 | 3.754.50 | 24.80 | 5.59 | 7/32 | 661 @ 41 | |
| SPORTMAX Q5A REAR | 150/60R17 | 66H | BW | 45274204 | 4.004.254.50 | 24.33 | 6.02 | 7/32 | 661 @ 41 | |
| SPORTMAX Q5A REAR | 160/60ZR17 | 69W | BW | 45274205 | 4.505.00 | 24.80 | 6.46 | 7/32 | 716 @ 42 | |
| SPORTMAX Q5A REAR | 180/55ZR17 | 73W | BW | 45274206 | 5.506.00 | 24.84 | 7.24 | 7/32 | 805 @ 42 | |
| SPORTMAX Q5A REAR | 190/50ZR17 | 73W | BW | 45274207 | 5.506.006.25 | 24.69 | 7.56 | 7/32 | 805 @ 42 | |
| SPORTMAX Q5A REAR | 190/55ZR17 | 75W | BW | 45274208 | 5.506.006.25 | 25.35 | 7.60 | 7/32 | 853 @ 42 | |
| SPORTMAX Q5A REAR | 200/55ZR17 | 78W | BW | 45274209 | 6.006.256.50 | 25.79 | 7.87 | 7/32 | 937 @ 42 |
