ADVENTURE TIRESportmax Q5S
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America

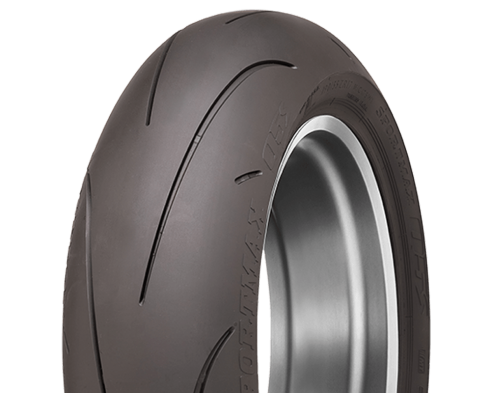

TIRE OVERVIEW Sportmax Q5S
Succeeding the popular Q3+, the Dunlop Q5S provides nimbler handling and improved dry and wet grip to make it even more user friendly all while still maintaining class-leading durability.
Succeeding the popular Q3+, the Dunlop Q5S provides nimbler handling and improved dry and wet grip to make it even more user friendly all while still maintaining class-leading durability.
Multi-Tread
Two compounds in the same tread give riders great mileage without sacrificing handling.
IRP
Intuitive Response Profile – It’s like your tire knows what you’re thinking.
ADDITIONAL TIRE
FEATURES
- The front tire profile and construction were changed to allow for a 7mm shorter tire. This shorter profile created a lighter steering feel and quicker turn-in rate to allow for a nimble handling tire.
- Intuitive Response Profile™ (IRP) technology allows for a taller tire profile along with sides that taper in more aggressively for remarkable turn-in response and feel.
- MT Multi-Tread™ technology in the Q5S rear tire uses a silica-infused, long-wearing compound in the center of the tread for longer tread life, and special lateral grip compounds on the left and right shoulders for outstanding grip.
- Improved compound to enhance both the dry and wet grip by adjusting the polymer, changing to a softer shoulder compound, increased the amount of carbon black content by utilizing Carbon R technology and increased oil content.
- Optimized tread pattern design to aid in quicker warm-up times and improved wear characteristics.
- The Sportmax Q5S is DOT-approved for street-legal use.
TIRE HIGHLIGHTS

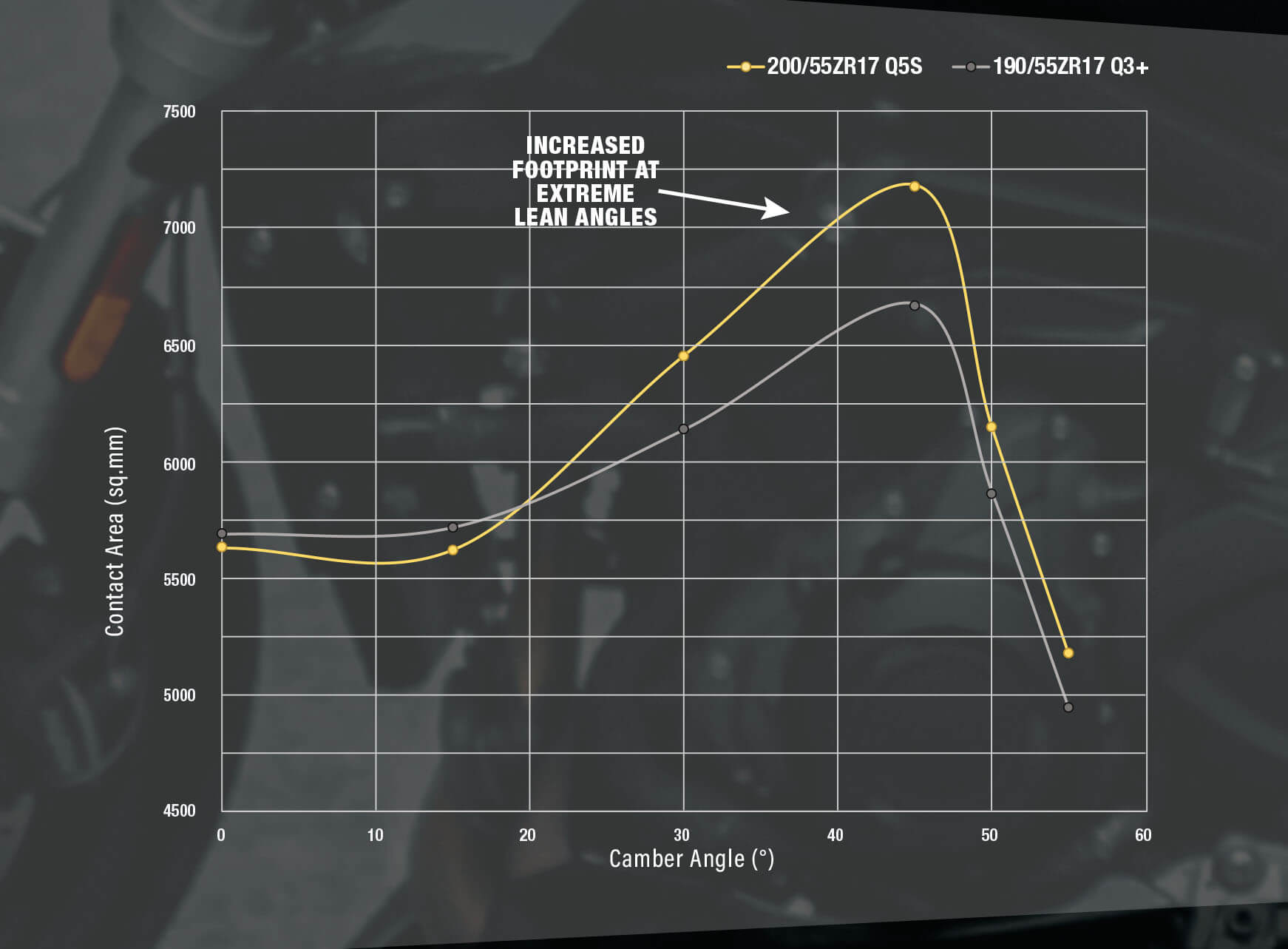

INCREASED CONTACT AREA
The increased footprint at more extreme lean angles gives you more tire on the road for more grip.

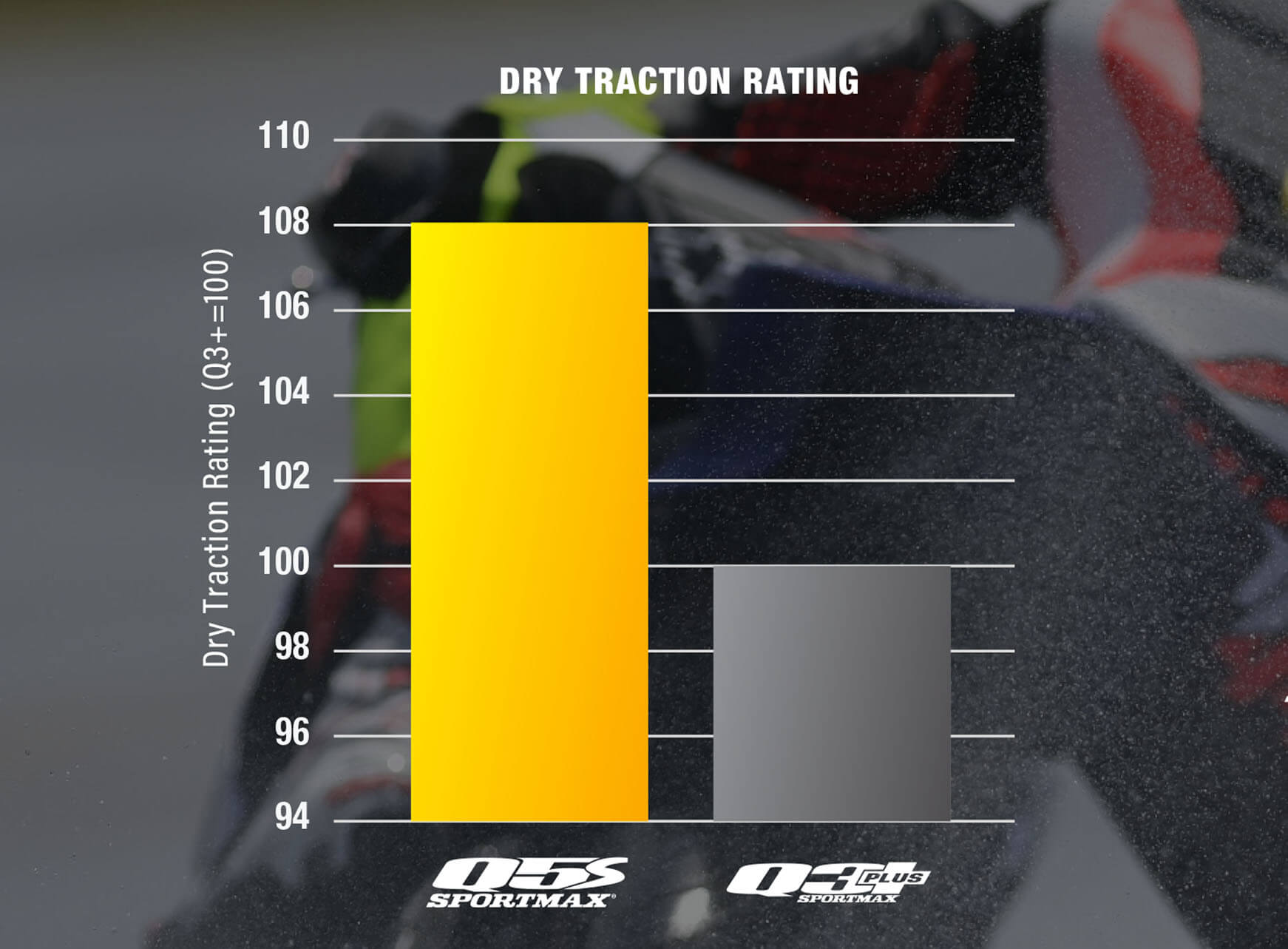

Dry Traction Rating
Having enhanced constructions, profiles, compounds, and tread patterns, the Dunlop Sportmax Q5S provides lighter and nimbler handling and improved dry and wet grip to make it even more user-friendly all while maintaining class-leading durability.
VIEWING FOR YOUR BIKE:
Sportmax Q5S SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| SPORTMAX Q5S FRONT | 110/70ZR17 | (54W) | 45258201 | 3.003.50 | 23.27 | 4.25 | 4/32 | 467 @ 42 | ||
| SPORTMAX Q5S FRONT | 120/70ZR17 | (58W) | 45258202 | 3.503.75 | 23.54 | 4.80 | 4/32 | 520 @ 42 | ||
| SPORTMAX Q5S REAR | 140/70ZR17 | 66W | 45258203 | 3.754.50 | 24.72 | 5.55 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5S REAR | 150/60ZR17 | (66W) | 45258204 | 4.004.254.50 | 24.25 | 6.10 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5S REAR | 160/60ZR17 | (69W) | 45258205 | 4.505.00 | 24.96 | 6.34 | 7/32 | 716 @ 42 | ||
| SPORTMAX Q5S REAR | 180/55ZR17 | (73W) | 45258206 | 5.506.00 | 25.00 | 7.32 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5S REAR | 190/50ZR17 | (73W) | 45258207 | 5.506.006.25 | 24.92 | 7.52 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5S REAR | 190/55ZR17 | (75W) | 45258208 | 5.506.006.25 | 25.51 | 7.64 | 7/32 | 853 @ 42 | ||
| SPORTMAX Q5S REAR | 200/55ZR17 | (78W) | 45258209 | 6.006.256.50 | 25.90 | 7.95 | 7/32 | 937 @ 42 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPORTMAX Q5S FRONT | 110/70ZR17 | (54W) | 45258201 | 3.003.50 | 23.27 | 4.25 | 4/32 | 467 @ 42 | ||
| SPORTMAX Q5S FRONT | 120/70ZR17 | (58W) | 45258202 | 3.503.75 | 23.54 | 4.80 | 4/32 | 520 @ 42 | ||
| SPORTMAX Q5S REAR | 140/70ZR17 | 66W | 45258203 | 3.754.50 | 24.72 | 5.55 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5S REAR | 150/60ZR17 | (66W) | 45258204 | 4.004.254.50 | 24.25 | 6.10 | 6/32 | 661 @ 42 | ||
| SPORTMAX Q5S REAR | 160/60ZR17 | (69W) | 45258205 | 4.505.00 | 24.96 | 6.34 | 7/32 | 716 @ 42 | ||
| SPORTMAX Q5S REAR | 180/55ZR17 | (73W) | 45258206 | 5.506.00 | 25.00 | 7.32 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5S REAR | 190/50ZR17 | (73W) | 45258207 | 5.506.006.25 | 24.92 | 7.52 | 7/32 | 805 @ 42 | ||
| SPORTMAX Q5S REAR | 190/55ZR17 | (75W) | 45258208 | 5.506.006.25 | 25.51 | 7.64 | 7/32 | 853 @ 42 | ||
| SPORTMAX Q5S REAR | 200/55ZR17 | (78W) | 45258209 | 6.006.256.50 | 25.90 | 7.95 | 7/32 | 937 @ 42 |
