ADVENTURE TIRESportmax Roadsmart IV
Your bike or size is required to see buying options!
30 QuestionsTIRE POSITION:
SIDEWALL:
Color - BLACK
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Check if this tire fits-
Made in the USA from foreign & domestic materials -
Hand-inspected before leaving the factory in Buffalo, NY -
Designed, tested & manufactured in North America
TIRE OVERVIEW Sportmax Roadsmart IV
The all-new Roadsmart IV delivers best-in-class handling, grip, and mileage. Featuring a completely new tread pattern, construction, compounds, profiles, and new technology.
The all-new Roadsmart IV delivers best-in-class handling, grip, and mileage. Featuring a completely new tread pattern, construction, compounds, profiles, and new technology.
Multi-Tread
Two compounds in the same tread give riders great mileage without sacrificing handling.
Handling
Because bikes are meant to lean over.
Wet
Because sometimes weather is unpredictable.
ADDITIONAL TIRE
FEATURES
- Compared to the Roadsmart III, the RSIV increases mileage by 23 percent in the front and 26 percent in the rear.**
- New tread patterns, construction, compounds, and profiles increase ride comfort, grip, and mileage.
- New technology allows the RSIV to maintain its high performance throughout its lifespan.

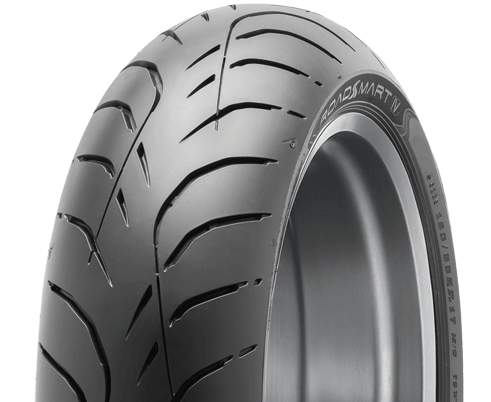

- MT Multi-Tread™ technology in the rear tire uses a long-wearing compound in the center and special lateral compounds on the shoulders for outstanding grip.
- New sidewall construction improves wet and dry handling and comfort.
- **Testing performed by Dunlop in Japan on a 2018 Honda CB1300 SB with tire sizes 120/70ZR17 front and 180/55ZR17 rear on 40% public roads and 60% highways. Mileage results may vary.
- CLICK HERE to view the full press kit.
TIRE HIGHLIGHTS

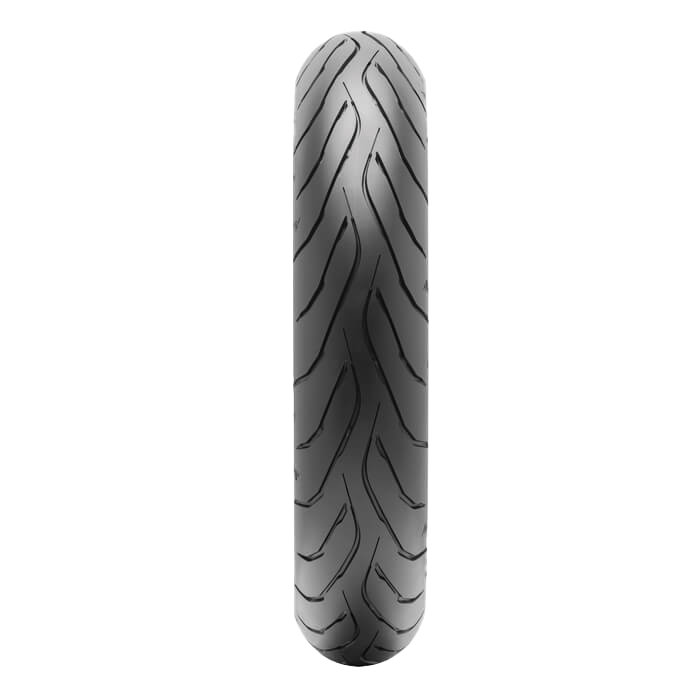

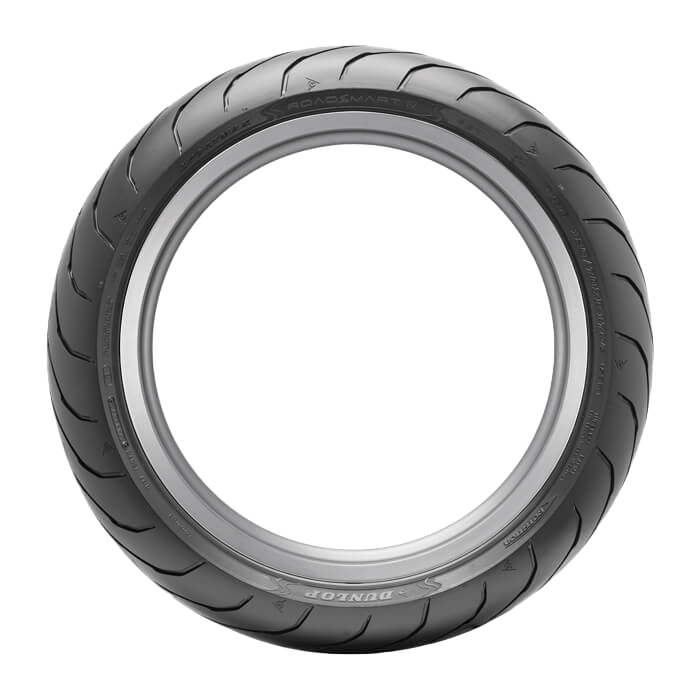

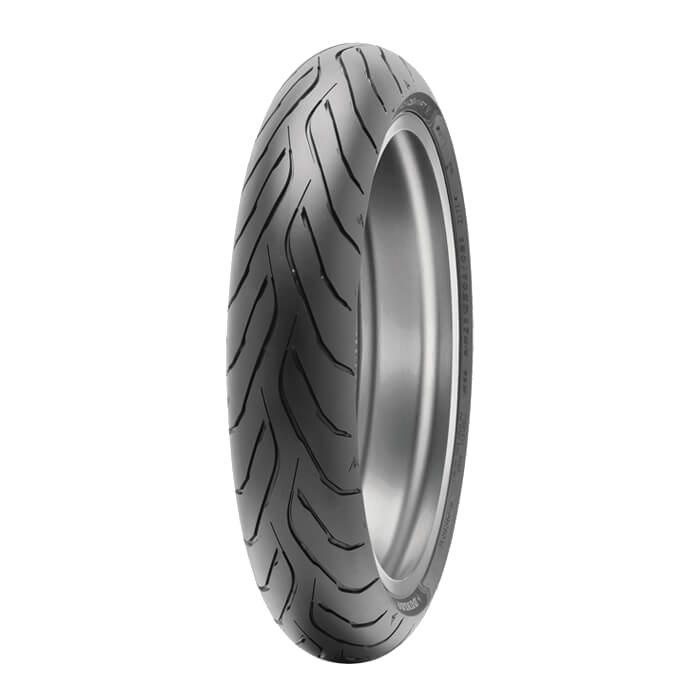

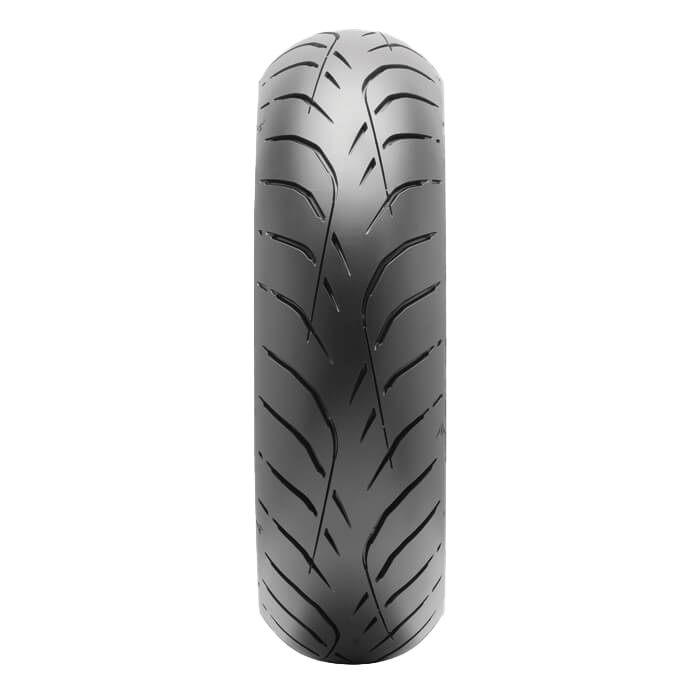

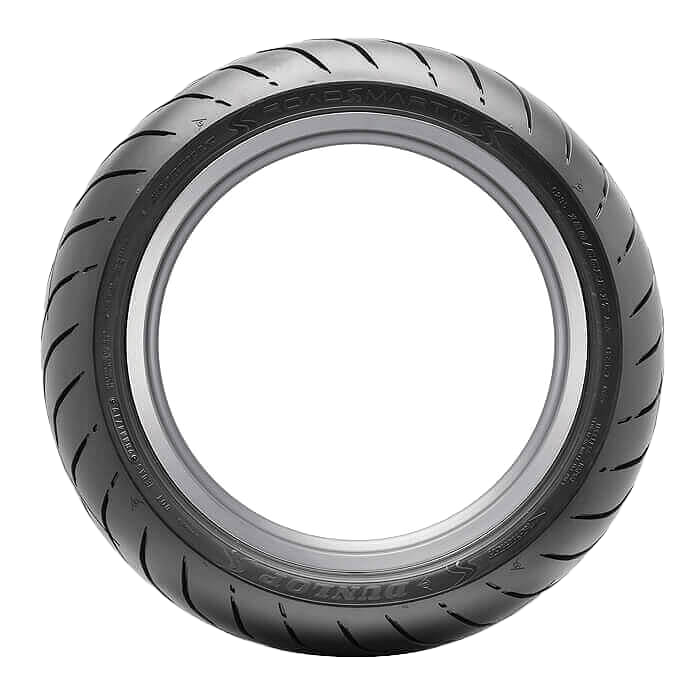

Profiles and Tread Pattern
Both front and rear tire profiles are changed significantly, resulting in 15% lighter steering on turn-in with more a linear response. On backroads especially, the RSIV makes it easier to set up a turn, and the steering is more consistent from upright to full lean for more precise rider feedback. Another benefit: lighter steering decreases rider fatigue so you can stay sharper longer.
New tread patterns work in harmony with the new profiles, improving tread wear, grip, and handling (especially in wet conditions). The RSIV’s optimized groove angles and strengthening of its tread rigidity through strategically placed thinner tread grooves contribute to more even wear across the life of the tire while maintaining superior wet-weather performance.
Jointless Band
New front tire constructions are utilized by size to meet specific motorcycle requirements. The 120/70-18 utilizes aramid Jointless Band (JLB) construction and the 120/70-17 utilizes aramid 2 Cut Breaker construction for greater compliance, ride quality, comfort, and rider feel. In the back, Dunlop’s JLB construction also contributes to a very linear feel by reducing tire growth for cooler running, enhanced grip, and handling.
Widest Range Available
The Roadsmart IV is another big step in the evolution of Dunlop’s sport-touring line, which includes the now value-priced Roadsmart III. With the addition of the Roadsmart IV, Dunlop has created the most market-driven sport-touring tire range available in sizes to fit a broad variety of motorcycles.
Additionally, Dunlop continues to be the only brand offering sport-touring tires that perform on both “Standard” and “GT” bikes, eliminating the need for two separate versions of its sport-touring tires.
The Dunlop Advantage
The Roadsmart IV joins Dunlop’s premium performance products by offering what other tires cannot: class-leading mileage, the handling of a full-on sport tire, and tremendous wet-weather grip—all while letting riders enjoy these advantages throughout its lifespan.
VIEWING FOR YOUR BIKE:
Sportmax Roadsmart IV SPECS
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
100/40-19
160/60-16
Type
Bias
Bias
Load/Speed Index
67H
67H
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
45131520, 45131520, 45131520
45131520, 45131520, 45131520
Applicable Rims
3.00
3.00
Recommended Rim
25.17
25.17
Overall Diameter
5.15
5.15
Overall Width
5.15
5.15
Full Tread Depth
6/32
6/32
Maximum Load @ PSI
677 @ 41
677 @ 41
MT
677 @ 41
677 @ 41
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI |  |
| SPORTMAX ROADSMART IV FRONT | 120/70ZR17 | (58W) | 45253301 | 3.003.50 | 23.70 | 4.69 | 5/32 | 520 @ 42 | ||
| SPORTMAX ROADSMART IV FRONT | 120/70ZR18 | (59W) | 45253307 | 3.003.50 | 24.65 | 4.76 | 5/32 | 536 @ 42 | ||
| SPORTMAX ROADSMART IV FRONT | 120/70ZR19 | (60W) | 45253308 | 3.503.75 | 25.75 | 4.72 | 5/32 | 551 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 160/60ZR17 | (69W) | 45253302 | 4.505.00 | 24.80 | 6.54 | 9/32 | 716 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 170/60ZR17 | (72W) | 45253303 | 4.505.50 | 25.20 | 6.73 | 9/32 | 783 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 180/55ZR17 | (73W) | 45253304 | 5.506.00 | 25.00 | 7.20 | 9/32 | 805 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 190/50ZR17 | (73W) | 45253305 | 5.506.00 | 24.76 | 7.60 | 9/32 | 805 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 190/55ZR17 | (75W) | 45253306 | 5.506.00 | 25.47 | 7.68 | 9/32 | 853 @ 42 |
| Tire Name | Size | Load/Speed Index | Sidewall | Part Number | Applicable Rims Recommended Rim | Overall Diameter | Overall Width | Full Tread Depth | Maximum Load @ PSI | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPORTMAX ROADSMART IV FRONT | 120/70ZR17 | (58W) | 45253301 | 3.003.50 | 23.70 | 4.69 | 5/32 | 520 @ 42 | ||
| SPORTMAX ROADSMART IV FRONT | 120/70ZR18 | (59W) | 45253307 | 3.003.50 | 24.65 | 4.76 | 5/32 | 536 @ 42 | ||
| SPORTMAX ROADSMART IV FRONT | 120/70ZR19 | (60W) | 45253308 | 3.503.75 | 25.75 | 4.72 | 5/32 | 551 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 160/60ZR17 | (69W) | 45253302 | 4.505.00 | 24.80 | 6.54 | 9/32 | 716 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 170/60ZR17 | (72W) | 45253303 | 4.505.50 | 25.20 | 6.73 | 9/32 | 783 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 180/55ZR17 | (73W) | 45253304 | 5.506.00 | 25.00 | 7.20 | 9/32 | 805 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 190/50ZR17 | (73W) | 45253305 | 5.506.00 | 24.76 | 7.60 | 9/32 | 805 @ 42 | ||
| SPORTMAX ROADSMART IV REAR | 190/55ZR17 | (75W) | 45253306 | 5.506.00 | 25.47 | 7.68 | 9/32 | 853 @ 42 |
