Adventure

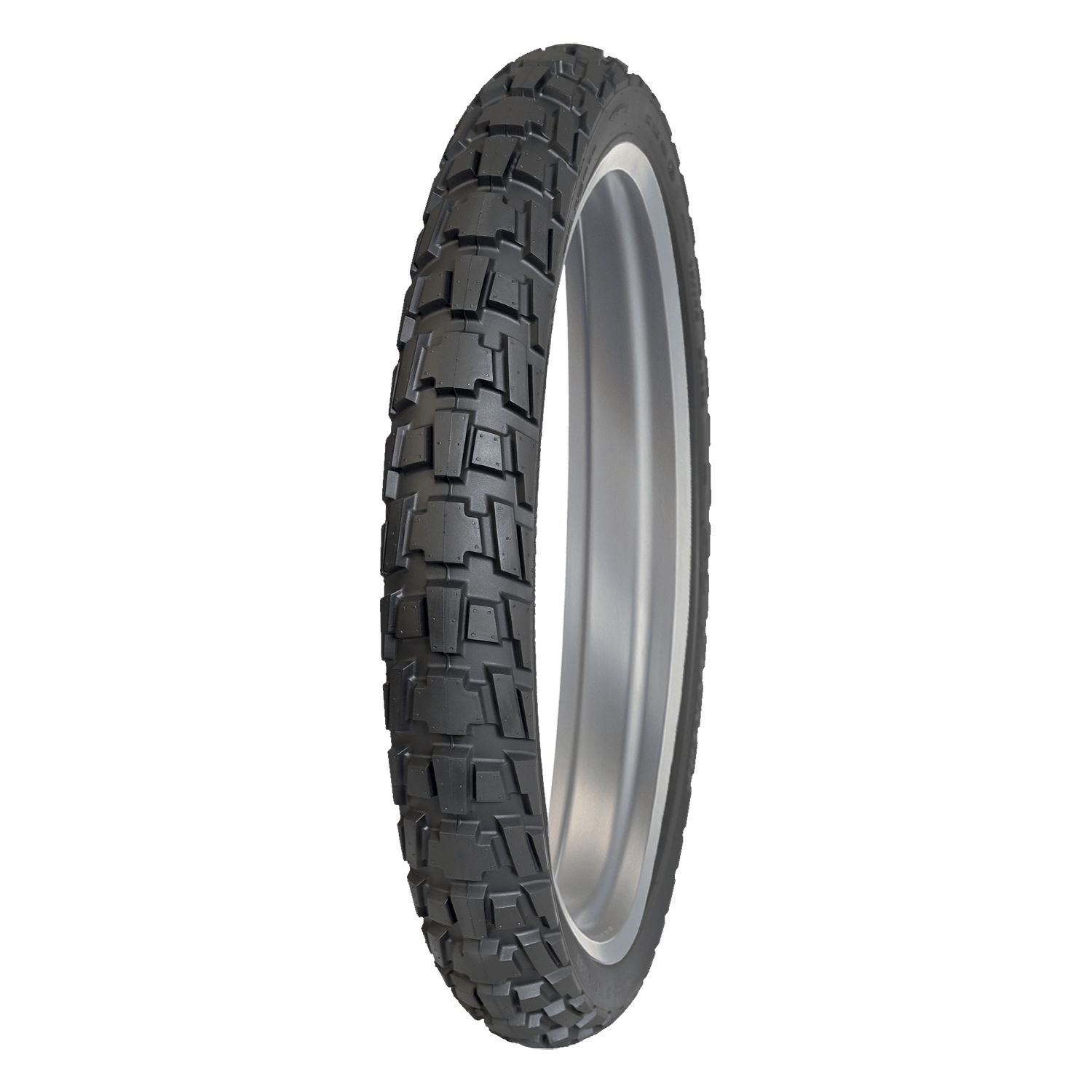

Trailmax Raid

40/60 Adventure Tire
Fits:
Won’t fit:
From $200.00
30 Questions
TIRE POSITION:
SELECT SIZE: These will fit - what you need below
SIDEWALL:
Color - BLACK
In stock! - Choose your preferred delivery method at checkout
Get it in 5 days!
Sold & shipped by 8 local dealers
FREE Pickup
Available: Pickup as soon as Friday, 3/7
Ship to me
Available: Arrives by Friday, 3/7
Hold up, let’s make sure these will fit!
These tires are made specifically for certain motorcycles and tire sizes - check below if they’ll fit what you’re riding .
Aww shoot, these won’t fit your bike
Don’t sweat it though, we make other great tires that will fit your Harley. You can also search by tire size if you’ve modified your stock tire size.
  • Dedicated proving grounds in Huntsville, AL
  • Dunlop tires are designed & tested for North American riders.
Jump to
Explore & learn more

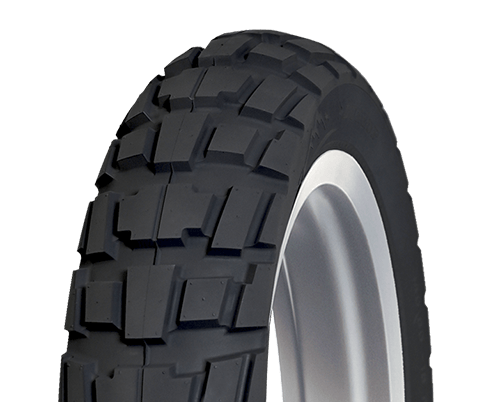

TIRE OVERVIEW Trailmax Raid

The new Trailmax Raid is the new adventure tire of choice for true adventure riding enthusiasts.

Trailmax Raid TIRE OVERVIEW

The new Trailmax Raid is the new adventure tire of choice for true adventure riding enthusiasts.

FIND AT A DEALER VIEW SPECS VIEW AVAILABILITY
ADDITIONAL TIRE

FEATURES

40/60 Adventure Tire

  • Delivers strong performance both off-road and on-road. It provides excellent off-road traction and cornering grip, outstanding wet grip, good chipping resistance, balanced handling, and road-tire stability and performance.
  • Dynamic Front Formula (DFF) is a tire design method utilizing an intricately balanced combination of section profile, carcass material properties and assembly process to provide exceptional handling.

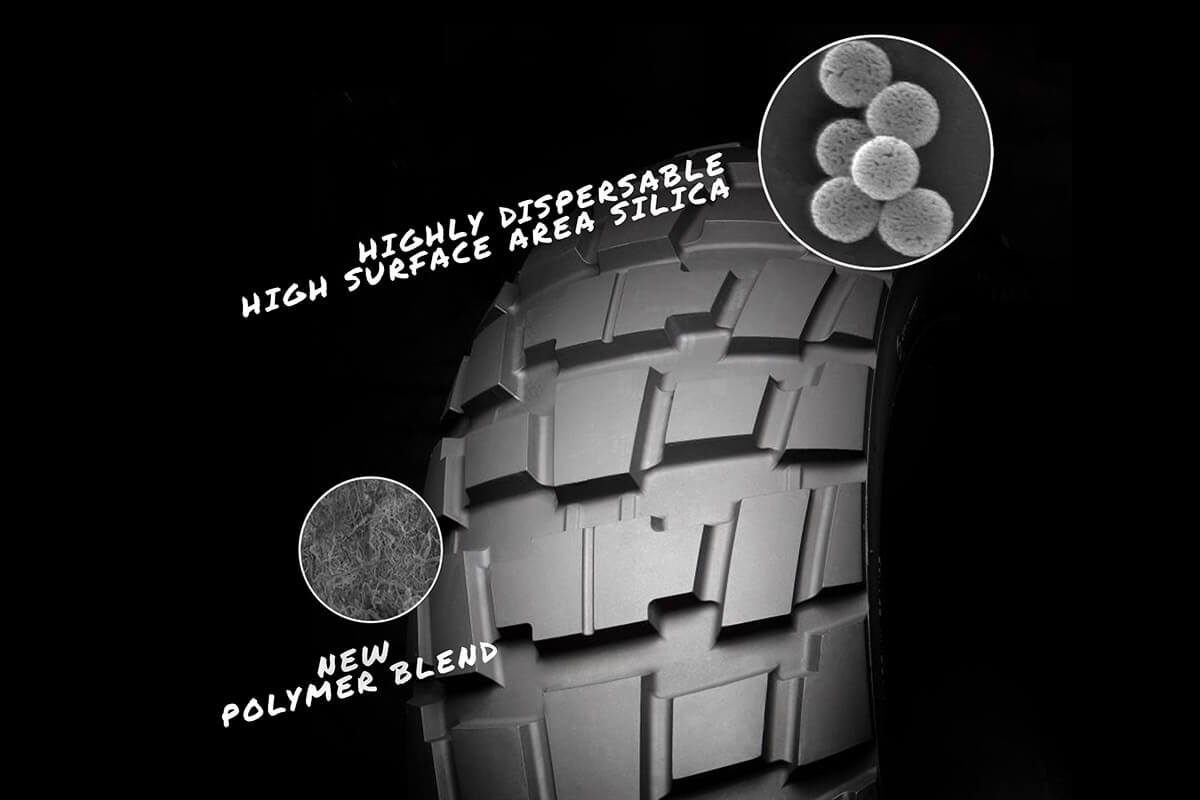

  • Hi Silica is a highly dispersible high surface area silica used to increase the silica filler ratio to promote compound flexibility at low temperatures and provide tremendous wet grip and good durability.

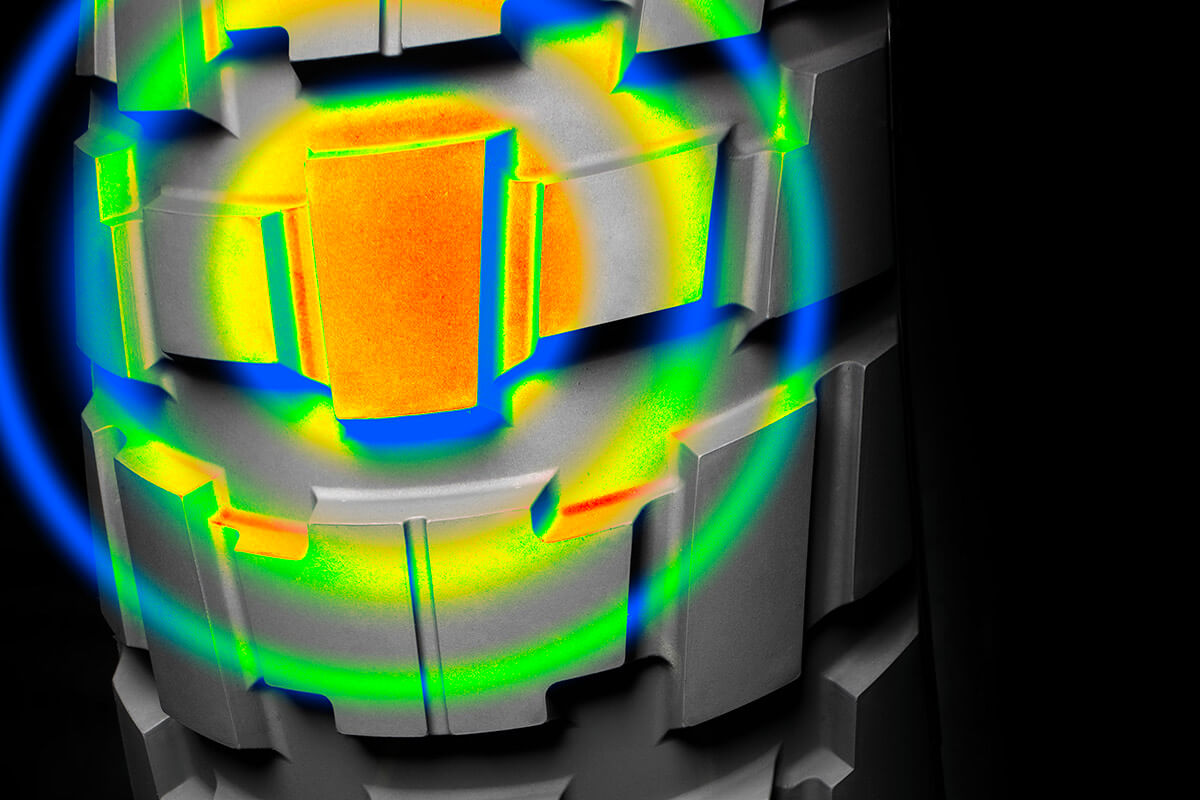

  • Carcass Tension Control System (CTCS) utilizes variable tension across the whole carcass width to optimize the contact patch for the ideal footprint and remarkable handling.

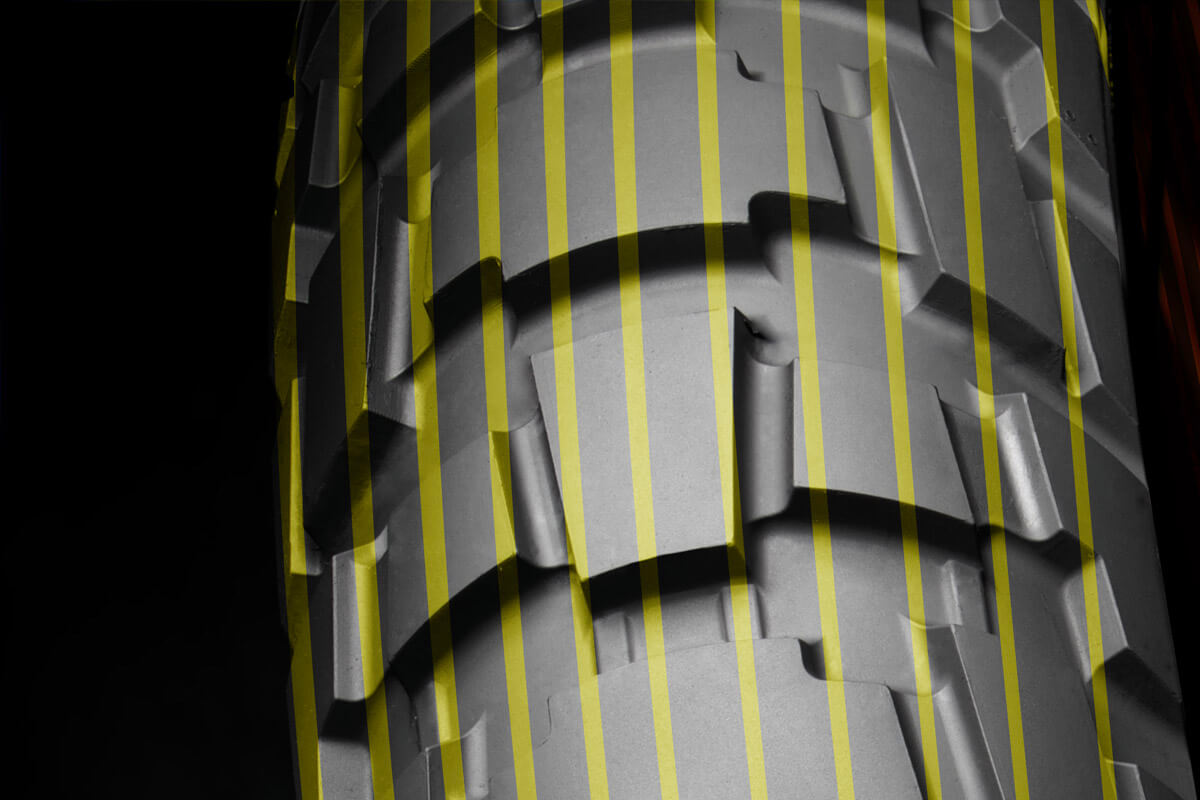

  • Jointless Belt construction (JLB) in radial sizes eliminates the belt overlap, resulting in smoother handling, minimizes the tread center’s dynamic growth at high speed, and reduces distortion and excessive heat build-up.
  • Aggressive tread pattern derived from our popular D908RR has been optimized to reduce rolling noise and provide improved road performance without sacrificing off-road performance.
  • Unequaled wet performance thanks to a wet-focused compound with highly dispersible high surface area silica.
  • The Raid range comprises both radial and bias sizes to target both medium-size dual-sport models to full-size adventure bikes.
  • Fits popular ADV motorcycles including the Honda Africa Twin, Ducati DesertX, Suzuki V-Strom, BMW R1200/R1250/R1300GS models, KTM 790/1090/1190/1290 Adventure, Yamaha Super Tenere, Triumph Tiger 800/1200 models, and many more.
TIRE HIGHLIGHTS
TIRE HIGHLIGHTS 1 / 4:
01
VIEWING FOR YOUR BIKE:
Trailmax Raid SPECS
Manual
All results assume you haven’t modified your bike’s OEM wheel sizes. If you have, please search by tire size instead to find tires!
FRONT
REAR
Size
Enter your tire size
Enter your tire size
Type
Pending selection
Pending selection
Load/Speed Index
Data unavailable
Data unavailable
Sidewall
Black, WWW, NW
Black, WWW, NW
Part #
-
-
Applicable Rims
-
-
Recommended Rim
-
-
Overall Diameter
Displayed after selection
Displayed after selection
Overall Width
Displayed after selection
Displayed after selection
Full Tread Depth
-
-
Maximum Load @ PSI
Varies by model
Varies by model

Tire Name Size Position Load/Speed Index Sidewall Part Number Applicable Rims Recommended Rim Overall Diameter Overall Width Full Tread Depth Maximum Load @ PSI
Trailmax Raid 110/80R19 FRONT 59T BL 45260401 2.152.503.00 26.22 4.33 10/32 536 @ 39
Trailmax Raid 120/70R19 FRONT 60T BL 45260402 2.753.003.75 26.06 4.72 10/32 551 @ 39

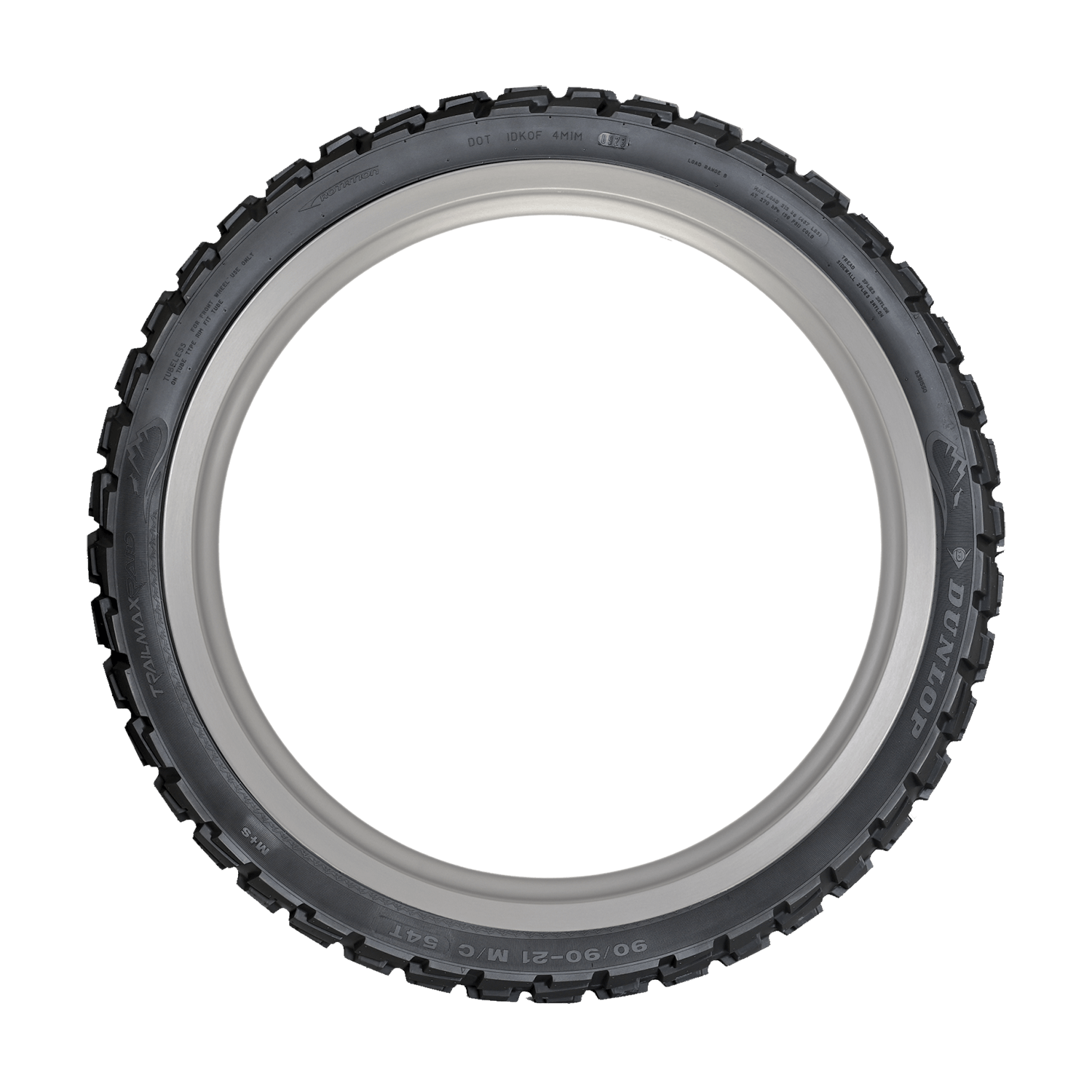

TRAILMAX RAID 90/90-21 FRONT 54T BL 45260400 1.852.152.50 27.76 3.54 11/32 467 @ 39
TRAILMAX RAID 130/80-17 REAR 65S BL 45260403 2.503.003.50 25.75 5.15 13/32 639 @ 36
TRAILMAX RAID 140/80-17 REAR 69S BL 45260404 2.753.503.75 26.26 5.64 13/32 716 @ 36
TRAILMAX RAID 150/70R17 REAR 69T BL 45260405 3.504.254.50 25.63 6.14 12/32 716 @ 39
TRAILMAX RAID 170/60R17 REAR 72T BL 45260406 4.004.505.50 25.39 6.61 12/32 783 @ 39

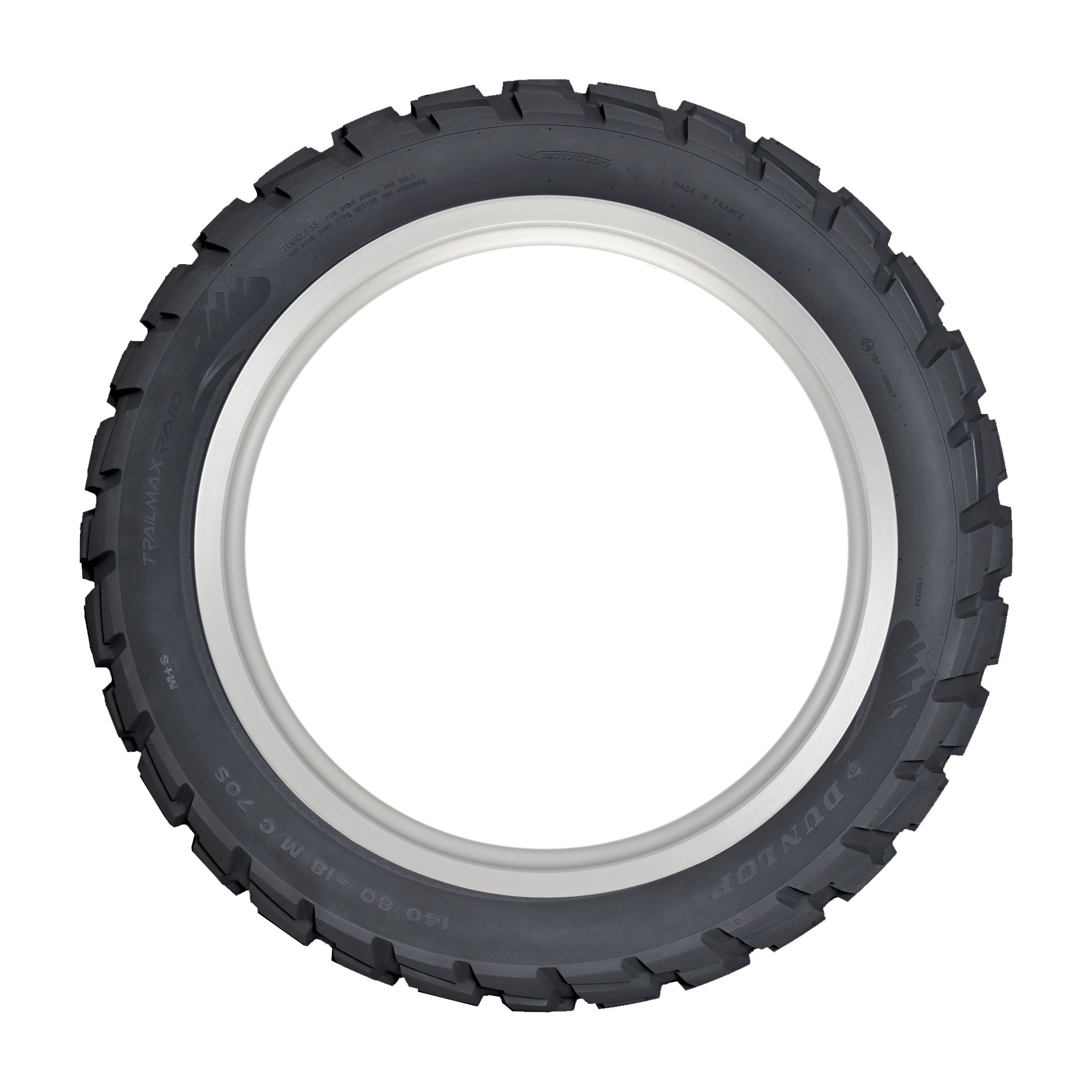

TRAILMAX RAID 140/80-18 REAR 70S BL 45260407 2.753.503.75 27.32 5.62 13/32 739 @ 36
TRAILMAX RAID 150/70R18 REAR 70T BL 45260408 3.504.254.50 26.57 6.06 12/32 739 @ 39
Tire Name Position Size Load/Speed Index Sidewall Part Number Applicable Rims Recommended Rim Overall Diameter Overall Width Full Tread Depth Maximum Load @ PSI
Trailmax Raid FRONT 110/80R19 59T BL 45260401 2.152.503.00 26.22 4.33 10/32 536 @ 39
Trailmax Raid FRONT 120/70R19 60T BL 45260402 2.753.003.75 26.06 4.72 10/32 551 @ 39
TRAILMAX RAID FRONT 90/90-21 54T BL 45260400 1.852.152.50 27.76 3.54 11/32 467 @ 39
TRAILMAX RAID REAR 130/80-17 65S BL 45260403 2.503.003.50 25.75 5.15 13/32 639 @ 36
TRAILMAX RAID REAR 140/80-17 69S BL 45260404 2.753.503.75 26.26 5.64 13/32 716 @ 36
TRAILMAX RAID REAR 150/70R17 69T BL 45260405 3.504.254.50 25.63 6.14 12/32 716 @ 39
TRAILMAX RAID REAR 170/60R17 72T BL 45260406 4.004.505.50 25.39 6.61 12/32 783 @ 39
TRAILMAX RAID REAR 140/80-18 70S BL 45260407 2.753.503.75 27.32 5.62 13/32 739 @ 36
TRAILMAX RAID REAR 150/70R18 70T BL 45260408 3.504.254.50 26.57 6.06 12/32 739 @ 39
